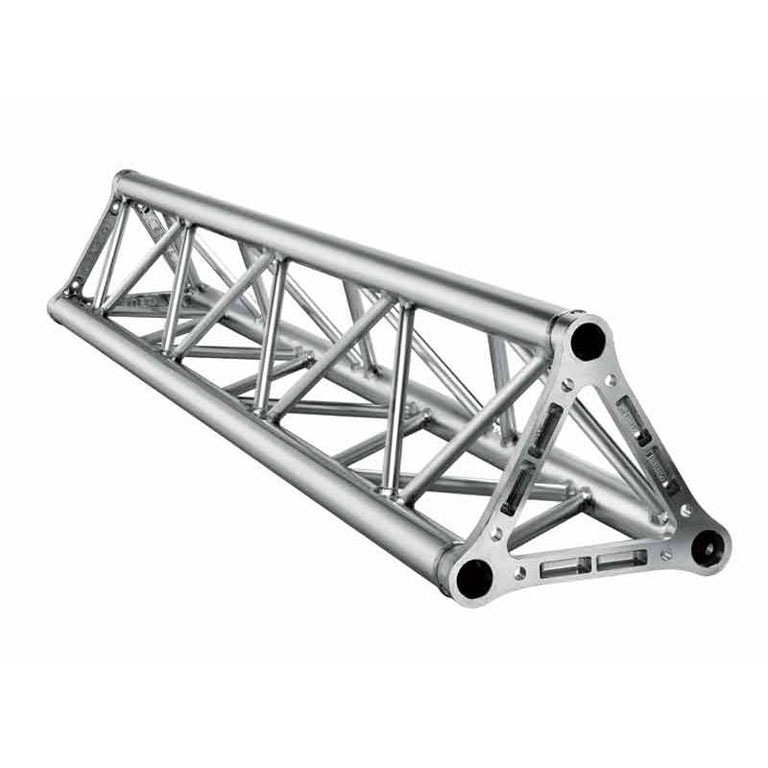

Triangular section aluminium truss with 29 cm long sides.
Chords A: extruded tube Φ 50x2 mm EN AW 6082 T6
Diagonals B: extruded tube Φ 18 x 2 mm EN AW 6082 T6
Ends C: aluminium casting plate EN AC 42200 T6
Connection systems QXFC: quick-fit kit; QXSM10: bolt connection kit
This is the most popular version of all our triangular trusses. It is manufactured using 6082 extruded aluminium alloy, with a high load-bearing capacity and twist-resistant strength.
The diagonal chords have been re-configured and their diameter changed to improve the aesthetic appearance and increase the overall strength of the truss.
