DTS Lighting RAPTOR

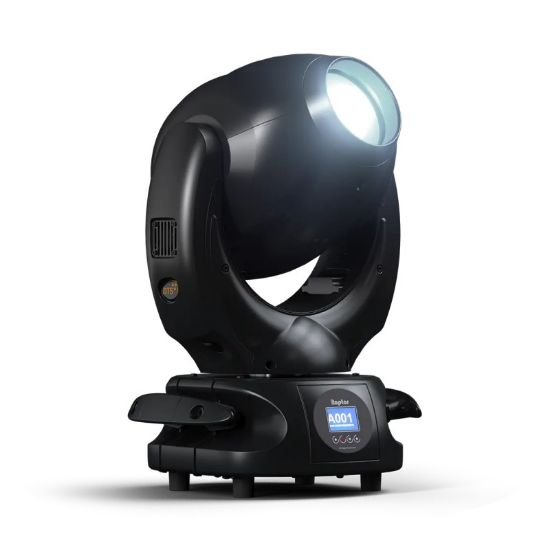

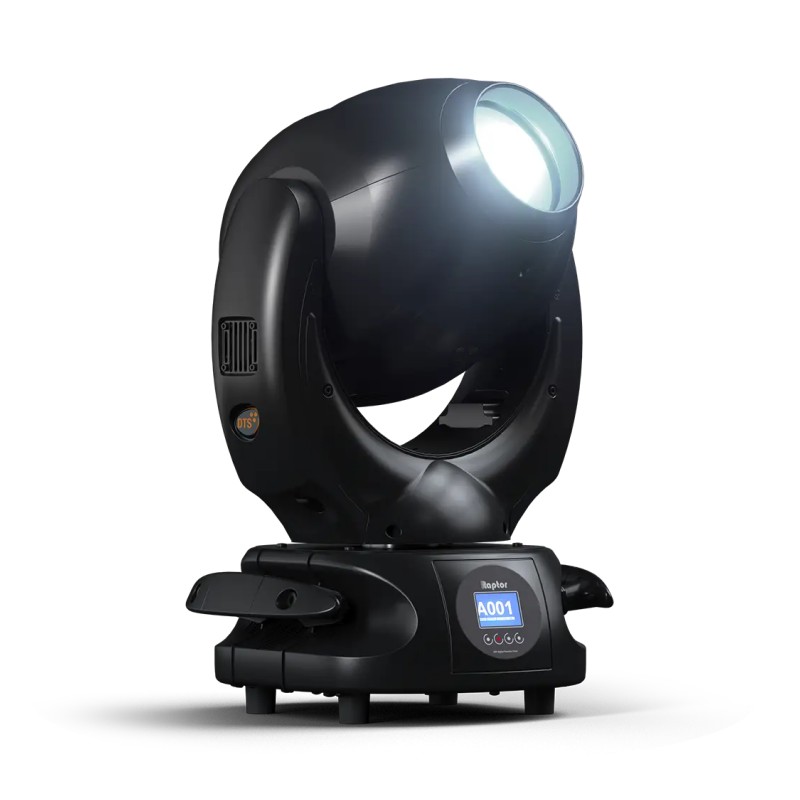

DTS Lighting RAPTOR Moving Head Beam 330W High Pressure Lamp Color Wheel IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 115636

Product code: DTS-RAPTOR

Downloads

Description

High-power light source. Uses a 330 W Osram Sirius HRI lamp that delivers 16,500 lumens, suitable for large venues and spaces with high ambient light.
Focused and precise beam. With a narrow 3.4° beam angle, it produces an extremely sharp and visible light beam, ideal for long-distance effects.
High-resolution motorized optical system. 16-bit linear focus allows precise and continuous beam sharpness adjustment, ensuring uniformity and flexibility.
Wide color range. 17-color wheel with linear selection for smooth transitions and seamless two-color beam creation.
Advanced dynamic effects. Equipped with gobo wheel, 8-facet rotating prism, frost and smooth filters, enabling a variety of visual effects, from textured projections to soft or multi-beam lighting.
Ultra-fast and silent movements. PAN system with continuous rotation (DTS FPR) and 270° TILT in just 1.2 seconds. Trifase stepper motors ensure speed and quiet operation, ideal for live events, theaters, and TV studios.
Comprehensive professional control. Compatible with DMX 512 and RDM protocols, features LCD display with soft keys, and supports firmware updates via dongle for flexible integration into any lighting setup.
Selectable DMX modes. Offers two DMX control modes (18 or 20 channels) to meet both simplified and advanced programming needs.
High energy efficiency. Low consumption (450 W) with power factor > 0.90, supports universal power input (100–240 V AC) with Power Factor Correction (PFC).
Integrated electronic protections. Equipped with circuits to protect against overvoltage and overheating, ensuring maximum operational reliability over time.
Compact and robust design. Weighs 17 kg with IP20 protection rating and professional black finish, suitable for indoor setups such as studios, theaters, and trade shows.

Based on your selection, you may be interested in the following items

DTS Flightcase PRO 4 Raptor / Nick NRG 1401/1201

DTS 4 Unit Flightcase PRO for Raptor / Nick NRG 1401/1201

Available 10 to 30 days

Call for pricing

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Wire Rope 60kg

DTS Safety Steel Wire 60kg 3mm x 60cm with Carabiner

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Live concerts and shows: Ideal for dynamic stage effects synchronized with audio and live performances.

Television and broadcast studios: Excellent color rendering and silent movements, perfect for live programs and TV sets.

Corporate events and trade fairs: Captures attention with graphic projections and bright beams for branding and exhibitions.

Clubs and discos: Spectacular effects with prisms, gobos, and strobe for immersive and engaging environments.

Theatres: Precise lighting and soft filters to enhance actors and stage sets without noise.

Theme parks and permanent installations: Reliable and updatable for continuous use in controlled environments.

Photo and video sets: Creative support for lighting effects and projections in shootings and visual productions.

Output

Lamp: Osram Sirius HRI 330 W (16,500 Lumens)

Color temperature: 7500 K

CRI: 80

Average lamp life: 1,500 hours

Optical Group

Beam opening: 3.4°
156,800 Lux / 15 m
16-bit motorized linear focus
Linear dimmer / shutter / ultra-fast strobe

Color Generation

17-color wheel with linear selection for perfect 2-color beams

Control

LCD graphic display (control / management / monitoring of the main parameters) + 4 soft-keys
Controlled via DMX 512 and RDM standard digital communication protocols
Firmware updatable via DTS firmware uploader dongle

Dynamic Effects

17-gobo wheel
8-facet rotating prism
Smooth filter (eliminates the hot spot, evenly diffusing luminosity)
Frost filter

DMX

18 DMX channels (default)
20 DMX channels

Power Supply

Wide-range 100-240Vac 50-60 Hz
Power consumption: 450 W with PFC
Power Factor: PF >0.90

Connections

DMX: XLR 3-pole In/Out and 5-pole In/Out panel connectors
Power supply: PowerCON In/Out panel connectors

Pan & Tilt

‘FPR’ system (DTS patent)
Pan: limitless rotation, in both directions
Tilt 270°: 1.2 s
Tri-phase stepper motor technology for ultrafast silent movements
16-bit resolution
Selectable speed ranges

Temperature

Operating: -10° +40° C

Physical

IP20
Weight: 17 Kg (37.5 lbs)
Finishing: Black

Test and Certification

Circuits Protections

Overvoltage and overtemperature circuits protection

Accessories Included

1 x PowerCON female cable connector (code 0520P014)
1 x XLR 5 Pins male cable connector (code 0508B148)
1 x XLR 5 Pins female cable connector (code 0508B147)
2 x Omega Bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

Accessories On Request

Lamp Osram Sirius HRI 330 W (code 0505S037)
Flightcase for 4 units (code 0521C059.1)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional -max. load 100 Kg (code 0521A037)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 3 x 600 mm – Max load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)
