Specifications

• DMX Channels:13 or 19
• DMX Connectors:3-pin XLR
• Pan and Tilt:540°/270°
• Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors:12 + white, split colors, continuous scroll at variable speeds
• Light Source:

(included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)

(optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)

• Strobe Rate:0 to 20 Hz
• Zoom Angle:

(beam): 3° to 11°

(spot): 7° to 21°

(wash): 14° to 28°

• Illuminance:

(3° beam): 382,000 lux @ 5 m

(7° spot): 104,700 lux @ 5 m

(14° wash): 4,680 lux @ 5 m

• Power Linking:3 units @ 120 V; 6 units @ 230 V

Specifications

• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:

260 W, 2.5 A @ 120 V, 60 Hz

254 W, 1.3 A @ 230 V, 50 Hz

• Weight:33.4 lb (15.2 kg)
• Size:12.6 x 8.6 x 20.2 in (322 x 220 x 513 mm)
• Approvals:CE, MET
• Optional Controllers: IRC - 6
• Prism:

(1): 8-facet round, bidirectional rotation at variable speeds

(2): 6-facet linear, bidirectional rotation at variable speeds

• Gobo wheel

(1): 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds Gobo wheel

(2): 17 + open, aluminum, continuous scroll at variable speeds

• Gobo Size (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness

What's included

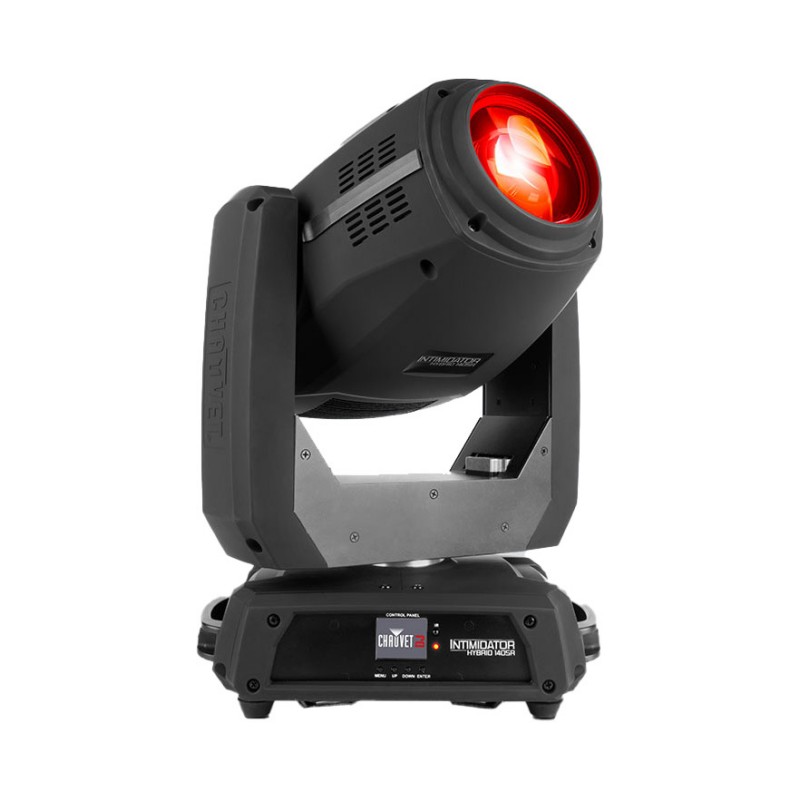

• Intimidator Hybrid 140SR
• Power cord
• Hanging bracket
• Warranty card
• Quick Reference Guide
