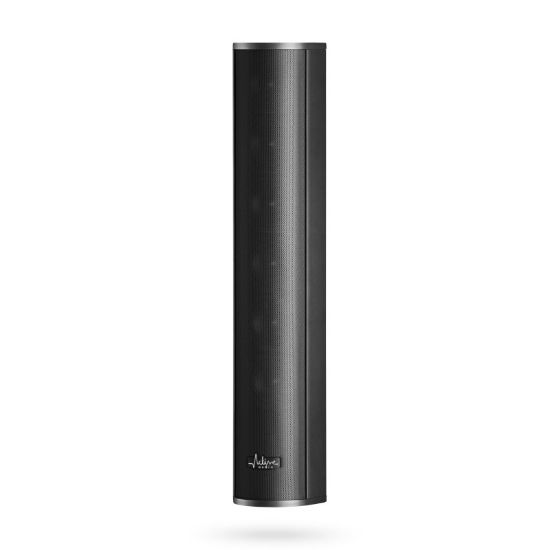

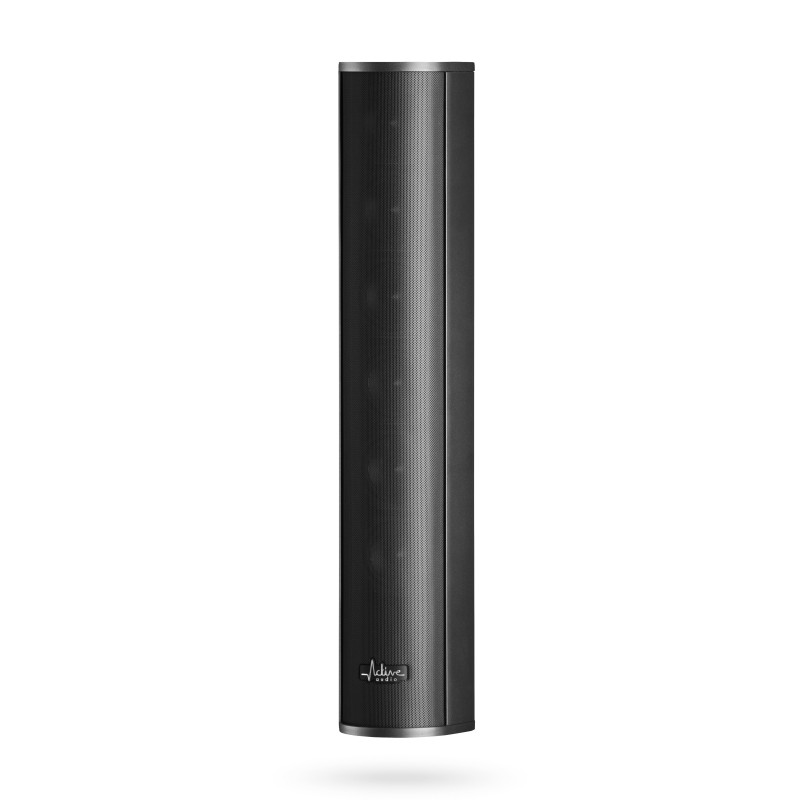

Picture of Active Audio R70PoE-b

Picture of Active Audio R70PoE-b

Active Audio R70PoE-b

Active Audio R70PoE-b Ray-On PoE Self-powered DSP Column Loudspeaker 70cm Black

Variations

Picture of Active Audio R70PoE-b

Picture of Active Audio R70PoE-w

Call for pricing

Product code (SKU): 126931

Product code: ACT-R70PoE-b

Downloads

Description

The R70 PoE is an 70cm active column, which is designed to be mounted vertically.
The integrated 60W PoE+ amplifier module allows to power and put audio signal in the column with a single CAT6 cable.
With a nominal range of 12m, it offers a high-quality alternative for smaller spaces in airports, train and underground stations, conference rooms, churches or shopping malls when you need to run the audio over a network.
Ray-On PoE is reserved for indoor use, it cannot be subjected directly to rain.
Range: 12m at ±5dB

Based on your selection, you may be interested in the following items

Picture of Active Audio iS110

Active Audio iS110

Active Audio iS110

Active Audio iS110 Subwoofer 10" passive - Black

Call for pricing

Picture of Active Audio R100SM

Active Audio R100SM

Active Audio R100SM

Active Audio R100SM Ray-On Stand mount for Ray-On R70 and R110 models

Call for pricing

Picture of Active Audio MPA8200

Active Audio MPA8200

Active Audio MPA8200

Active Audio MPA8200 Amplifier 8 Channel without DSP 8x200W / 8Ω 8x300W / 4Ω

Call for pricing

Details

Ray-On PoE serie allows to the patented DGRC (Digital and Geometric Radiation Control) technology to be easily integrated in smart buildings.

The integrated 60W PoE+ amplifier module allows to power and put audio signal in the column with a single CAT6 cable.

Ray-On PoE can be installed close to any RJ45 socket connected to a network switch with a PoE+ port.

The internal DSP of the enclosure provides a DANTE input and an optimal frequency response.

Ray-On PoE is reserved for indoor use, it cannot be subjected directly to rain.

Active Audio Ray-On PoE Series applications

Applications

Transport Hubs
Public places
Conference room
Houses of worship

Active Audio Ray-On PoE Series applications Advantages

Advantages

Flawless intelligibility
Wide and even sound coverage
Vertical mounting system
Dante-enabled

Active Audio Ray-On PoE Series applications Acoustical data

Acoustical data

Max SPL 88dBSPL: @ 5m
Sensitivity: 71dB/1W @ 5m
Range ±3dB: 6.5m
Range ±5dB: 12m
Angle of audience: 0°-5°
Frequency bandwidth: (-10dB) 120Hz-18kHz
Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
Vertical directivity: Wavefront synthesis

Active Audio Ray-On PoE Series applications Electrical and mechanical data

Electrical data

Continous power: 60W
Nominal impedance: 8Ω
Connectors: RJ45
Protection: Thermal fuse
Certification: PoE+ certified

Mechanical data

Dimensions (WxPxH): 128mm x 117mm x 706mm
Net / shipping weight: 7kg / 7.5kg
Environment: IP23
Colors: white, black

Information and Downloads

Manual

Manual

Technical Specifications

Technical Specifications

Contact
