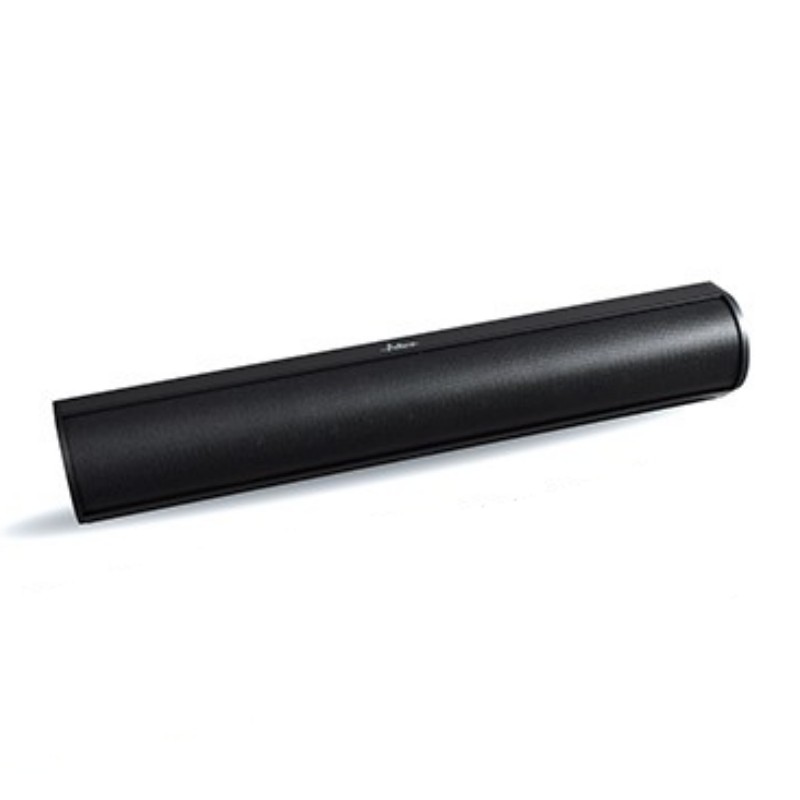

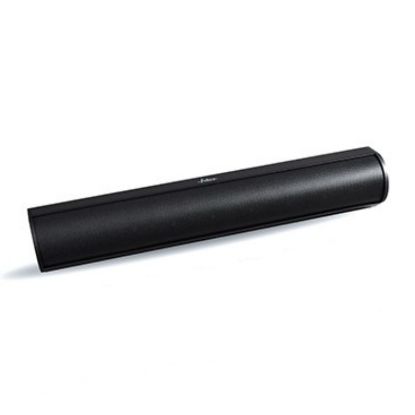

Active Audio B70TC-b

Active Audio B70TC-b Ray-On Sound bar with high directivity 70cm 100V or 8Ω Black

Variations

Picture of Active Audio B70TC-b
Picture of Active Audio B70TC-w
Call for pricing
Available
Product code (SKU): 126920
Product code: ACT-B70TC-b

Description

Sound bar (0.70m), 100V / 8Ω, EN54-24 type B compliant
Dedicated for spaces which need a perfect horizontal directivity control :
corridors, shopping rays, Railway plateforms, underground stations, meeting rooms.
Range : 12m @ ±5dB

Related products

Picture of Active Audio B70PoE-b
Active Audio B70PoE-b

Active Audio B70PoE-b

Active Audio B70PoE-b Ray-On PoE Sound bar 70cm Black
Call for pricing



Details

Ray-On® bears testament to Active Audio’s determination to offer the StepArray DGRCs technology to a wide audience.

Α range of products is designed incorporating the directivity control of high-end DSP speakers, while retaining the price attributes and easy installation of traditional speakers.

Thanks to its simple and sleek design combined with its vertical mounting system, Ray-On can be fitted in venues with the most demanding architectural constraints.



Active Audio Ray-On Series applications

Applications

  • Transport Hubs
  • Public places
  • Conference room
  • Houses of worship



Active Audio Ray-On Series applications Advantages

Advantages

  • Flawless intelligibility
  • Wide and even sound coverage
  • Vertical mounting system except B70
  • 8Ω/100V compatibility
  • Certified to EN 54-24
  • IP55: indoor / outdoor rating



Active Audio Ray-On Series applications Acoustical data

Acoustical data

  • Max SPL: 97dBSPL @ 5m
  • Sensitivity: 71dB/1W @ 2m
  • Range ±5dB: 12m
  • Frequency bandwidth: (-10dB) 120Hz-18kHz
  • Horizontal opening angle: 40° (1kHz)
  • Vertical directivity: 180° (1kHz)



Active Audio Ray-On Series applications Electrical and mechanical data

Electrical data

  • Continous power: 75W
  • Nominal impedance: 8Ω
  • Connectors: Lever quick connector with loop-through
  • Protection: Thermal fuse
  • Certification: EN54-24 certified




Mechanical data

  • Dimensions (WxPxH): 128mm x 117mm x 706mm
  • Net / shipping weight: 5.4kg / 5.9kg
  • Environment: IP55 (25° - 55°) / IK08
  • Colors: white, black

Information and Downloads

Manual

Technical Specifications
