Litec TH30SA200 Ευθύγραμμη Τράσα

Litec TH30SA200 Ευθύγραμμη Τράσα Heavy Duty 30cm Τρίγωνη Μήκους 200cm - Ασημί

Εναλλακτικά Χρώματα / Μεγέθη

Ρωτήστε για τιμή

Κατόπιν Παραγγελίας

Κωδικός (SKU): 117153

Κωδικός προϊόντος: LITEC-TH30SA200

Λήψεις

Περιγραφή

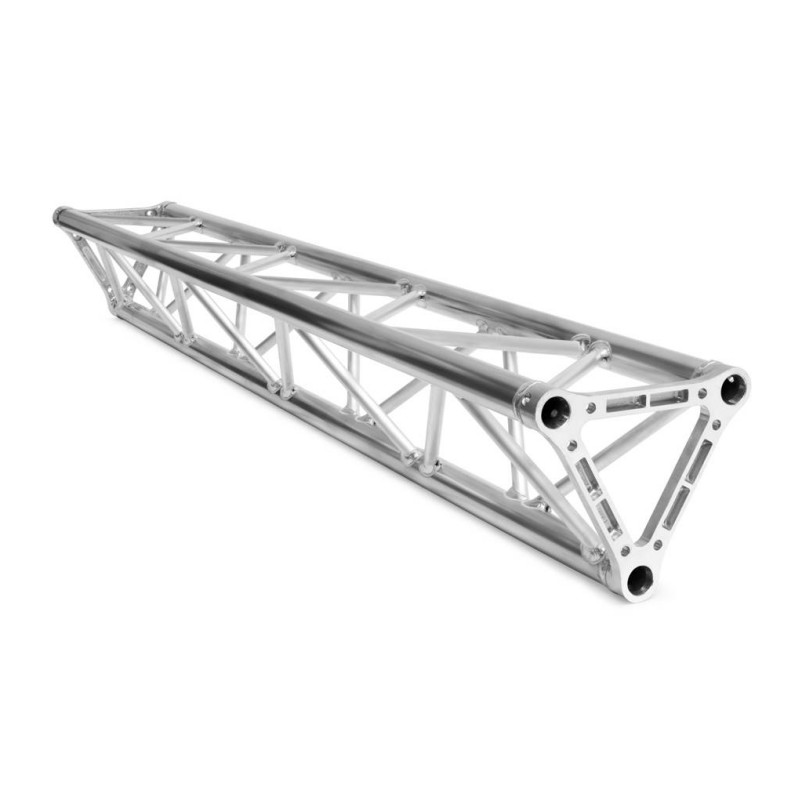

Triangular section aluminium truss with 29 cm long sides.
Chords A: extruded tube Φ 49x3 mm EN AW 6082 T6
Diagonals B: extruded tube Φ 20x2 mm EN AW 6082 T6
Ends C: aluminium casting plate EN AC 42200 T6
Connection systems FXFC: quick-fit kit; FXSM8: bolt connection kit
The TH30SA triangular truss from LITEC includes this unique end-plate design, thereby making it the right choice for your Light and Medium-duty applications and providing extreme durability for rental applications. The 49 x 3 mm main chords also make it compatible with the most popular scaffolding clamping systems. Constructed from extruded 6082 aluminium alloy, it features high load bearing capacity and twist-resistant strength.

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

Litec TH30SAL2090E Γωνιακή Τράσα

Litec TH30SAL2090E Γωνιακή Τράσα Heavy Duty 30cm Τρίγωνη , 2 Δρόμων 90° - Κορυφή Εξωτερικά - Ασημί

Κατόπιν Παραγγελίας

Ρωτήστε για τιμή

Αναλυτικά

To further enhance the standard products, LITEC offers a wide range of corners, connections and accessories useful for many different applications and needs.

Connections

“Quick connect” or “nut & bolt connect”.

End-plated trusses allow to use two different systems of connection.

The quick-fit system is certainly the most wide-spread and mainly used when the structure is frequently assembled and dismantled.

In case of permanent installations, on the other hand, a more economical bolt connection system may be used.

See here

Accessories

Includes base plates designed for flexible configurations.

Plates are made in such a way that bolts may be completely inserted so that there are no edges or external protuberances which could damage canvases or other fabrics or which might simply be unaesthetic on certain structures.

See here
