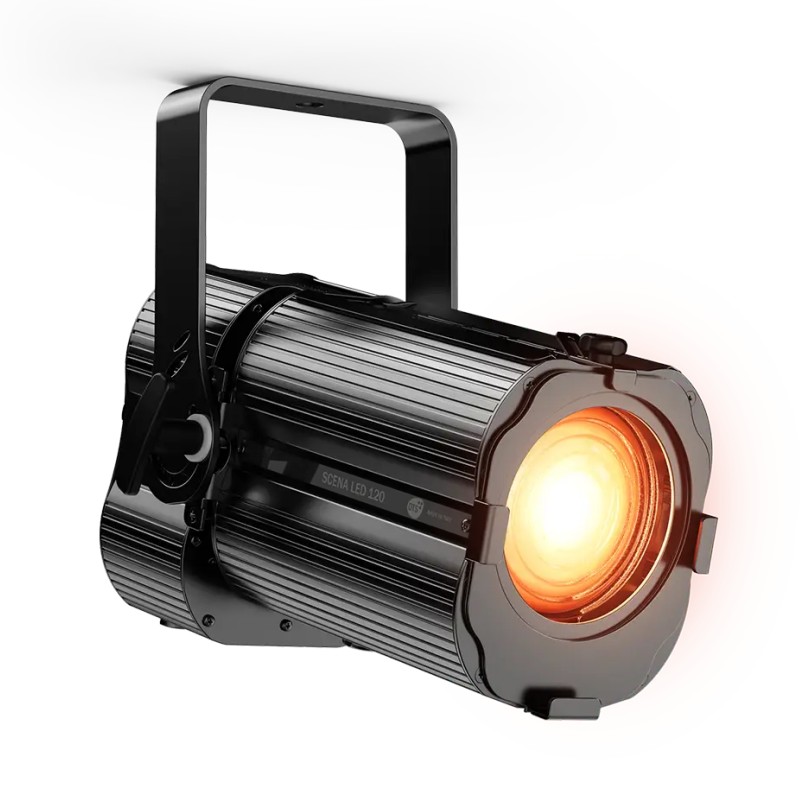

DTS Lighting SCENA LED 120 HQS

DTS Lighting SCENA LED 120 HQS Φωτιστικό Fresnel Wash LED RGBA IP20 - Μαύρο

Ρωτήστε για τιμή

Διαθέσιμο 10 εως 30 ημέρες

Κωδικός (SKU): 117484

Κωδικός προϊόντος: DTS-SCENA LED 120 HQS

Λήψεις

Περιγραφή

High-efficiency RGBA LED. Uses a 4-color LED (Red, Green, Blue, Amber) to deliver a rich and natural color rendering, with a luminous output of up to 2,720 lumens.
High light quality (CRI > 90). Offers excellent color rendering, essential for professional applications requiring accurate color fidelity.
20°–74° linear zoom. Equipped with a 112 mm Fresnel lens, it provides wide beam angle adjustment, from narrow to wide.
Adjustable color temperature (2700 K – 8000 K). Allows seamless transition from warm to cool tones, covering all scenic and architectural lighting needs.
HQS Technology (High Quality Spectrum). Ensures superior white light quality and an extended palette of pastel and warm-toned colors.
Smooth and precise Hi-Q dimming. Ensures extremely linear brightness control, even at low levels, with no visible steps between values.
Advanced DMX/RDM control. Compatible with DMX 512 and RDM protocols, offering full integration into professional lighting control systems.
Flexible DMX modes. Features multiple DMX profiles (4, 6, 10 channels, Fine and Prom) to adapt to different control requirements.
Integrated electronic protection. Equipped with overvoltage and overtemperature protection circuits for enhanced operational safety.
Compact and robust design. With IP20 rating and a weight of just 4.5 kg, it’s ideal for mobile or fixed installations in protected environments.

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

DTS BarndoorScena LED 80

DTS Barndoor για Scena LED 80

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Συρματόσχοινο 60kg

DTS Συρματόσχοινο Ασφαλείας 60kg 3mm x 60cm με Carabiner

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Dongle

DTS Dongle Firmware Uploader Καλώδιο Αναβάθμισης Λογισμικού

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

Applications

Theatres and TV studios: high-quality front or back lighting with natural skin tone rendering.

Live events and concerts: versatile and easily integrated via DMX/RDM.

Museums and exhibitions: perfect for enhancing artworks with adjustable lighting.

Indoor architectural installations: suitable for both temporary and permanent setups.

Video and photo productions: stable, consistent light for professional shooting.

Output

Single 4-color LED (RGBA)
Lumen output (RGBA): up to 2,720
CRI > 90
LED lifespan: 50,000 hours (L70B10)

Optical Group

Ø 112mm Fresnel lens
20°- 74° linear zoom

Color Generation

16 million colors
Wide palette of pure uniform whites
Variable linear color temperature (2700 K – 8000 K)
HQS (High Quality Spectrum) – DTS’ trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances

Control

DMX 512 / RDM protocols
4-digit 7-segment LED display + 4 soft keys
Firmware updatable via DTS firmware uploader dongle

Dimmer

‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

DMX

10 DMX channels (default)
4 DMX channels
6 DMX channels
“Fine” mode
“Prom” mode

Power Supply

Wide-range 100-240Vac 50-60 Hz
Power consumption: 120 W max
Power factor: PF > 0.95

Connections

Power supply: PowerCON TRUE1 In&Out panel connectors
DMX: XLR 5-pole In&Out panel connectors

Circuits Protections

Overvoltage circuit protection and overtemperature circuit protection

Temperature

Operating: -10° +40° C

Physical

IP20
Weight: 4.5 Kg (9.9 lbs)
Finishing: Black

Test and Certification

Accessories Included

1 x Cable with PowerCON TRUE1 female connector (code 02K0012267.0015)
1 x FilterframeBlack finishing – already installed on the projector (code 02M00422.46)

Accessories On Request

Barndoor Black finishing (code 03.TA206)
Universal Hook Clamp – Max load 40 Kg – 88 lbs (code 0521A047)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)

Πληροφορίες και λήψεις

Manual

Manual
