DTS Lighting EUPHONY 3

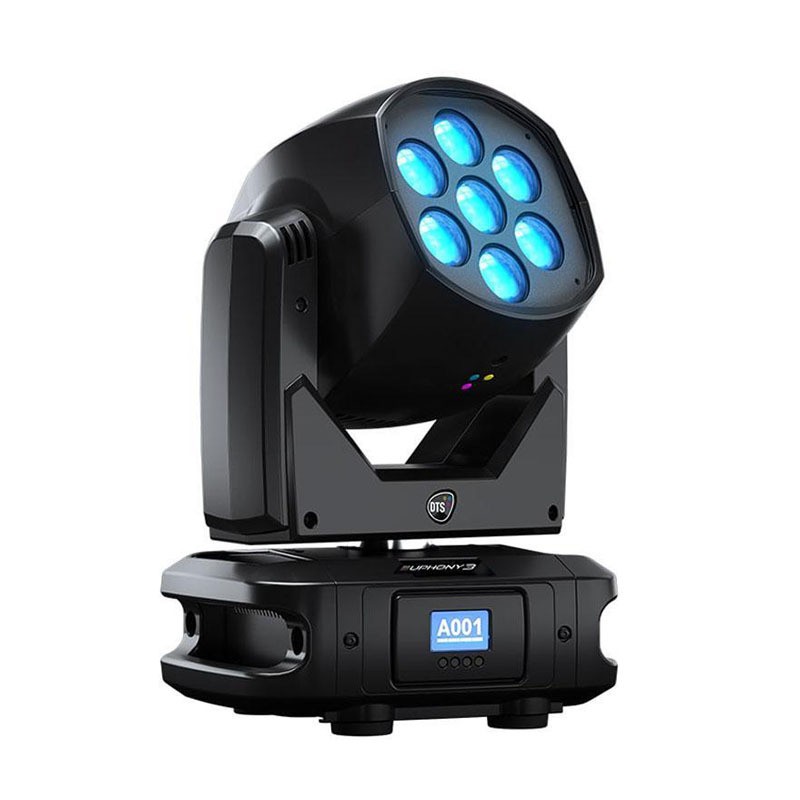

DTS Lighting EUPHONY 3 Κινούμενη Κεφαλή Wash 7 x 60W LED RGBW IP20 - Μαύρο

Ρωτήστε για τιμή

Αμεσα Διαθέσιμο

Κωδικός (SKU): 118775

Κωδικός προϊόντος: DTS-EUPHONY 3

Λήψεις

Περιγραφή

7 x 60W RGBW LEDs. Seven high-power full-color LEDs (RGBW) provide intense and uniform light output, with an estimated lifetime of up to 50,000 hours (L70B10).
Motorized zoom 5.6°–69°. Linear motorized zoom system enables smooth transitions from narrow beam (PC Beam) to wide wash effects, suitable for any scenic requirement.
16-bit ‘Hi-Q’ dimmer. Advanced dimming technology ensures smooth and progressive intensity control, with no visible stepping even at very low brightness levels.
Adjustable color temperature (2700K–8000K). Linear white control from warm to cool tones, adaptable to different environments—from theatrical settings to high-CRI broadcast studios.
Silent mode. Low-noise operation, selectable via menu, designed for noise-sensitive environments such as theaters, concert halls, and museums.
DMX/RDM control. Compatible with DMX 512 and RDM protocols, featuring two operating modes (18 or 20 channels), firmware updates via dongle, and optional wireless DMX.
Uniform projection with frost filter. High-quality optics ensure even light distribution, complemented by a frost filter for smooth and natural light diffusion.
LCD display with backup battery. User-friendly interface with auto-flip and key-lock functions, operable even without power thanks to the built-in rechargeable battery.
Wide color range and virtual filters. Capable of reproducing over 16 million colors, with 16 virtual gel filters selectable via DMX in standard mode.
Professional PowerCON TRUE1 and XLR connectors. Equipped with PowerCON TRUE1 In/Out and 3/5-pin DMX XLR connectors for reliable, fast, and industry-standard installations.

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

DTS G-Quick 100kg

DTS G-Quick Professional Γάντζος 100kg για Σωλήνα Φ38mm-Φ51mm

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Συρματόσχοινο 60kg

DTS Συρματόσχοινο Ασφαλείας 60kg 3mm x 60cm με Carabiner

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Dongle

DTS Dongle Firmware Uploader Καλώδιο Αναβάθμισης Λογισμικού

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

Applications

Live shows and concerts: Powerful light output, motorized zoom and vivid colors to create dynamic and spectacular stage effects.

Theaters: Smooth dimming and silent mode for soft transitions and discreet operation in acoustically sensitive environments.

TV studios: Wide range of adjustable white tones, virtual filters and uniform projection ideal for precise studio lighting.

Corporate events and conferences: Clean design, optional wireless DMX and silent operation for elegant setups with minimal cabling.

Museums and art installations: Stable, precise and adjustable lighting to enhance artworks and exhibition spaces.

Trade shows, showrooms and temporary retail: Easy to set up, with versatile zoom and high color rendering, perfect for promotional areas and booths.

Permanent indoor installations: Long-term reliability, integrated protections and broad DMX/RDM compatibility for theaters, auditoriums and multipurpose venues.

Output

7 x 60W Full Color (RGBW) LEDs
7,500 Lumen output
LED lifespan: 50,000 hours (L70B10)

Optical Group

5.6°- 69° linear motorized zoom with high- efficiency optical system
Soft frost filter included
Uniform projection on surfaces, from very wide Wash to PC Beam

Color Generation

16 million colors
Wide palette of pure uniform whites with variable linear color temperature (2700K – 8000K)
16 gel filter emulations by ‘Standard’ DMX mode

Dimmer

Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

Control

LCD graphic display + 4 soft-keys; Auto-flip; Key-Lock function
RDM/DMX 512 protocols
Wireless DMX available on request
‘Standard’ and ‘Silent’ operation modes
Firmware updatable via DTS firmware uploader dongle
Li-Fe backup battery for controlling the display settings even when the unit is not powered

DMX

2 DMX modes:

1. Standard – 18 channels (default)

2. Compatibility 20 channels

Pan & Tilt

Pan 540° : 1.8 s
Tilt 215° : 1 s
16-bit resolution

Power Supply

Wide-range 100-240Vac 50-60 Hz
Power consumption: 420 W max
Power Factor: PF >0.94

Connections

Power supply: PowerCON TRUE1 In/Out panel connectors
DMX: XLR 3-pole and 5-pole In/Out panel connectors

Circuits Protections

Overvoltage and overtemperature circuit protection

Temperature

Operating: -20° +45°
Storage: -40° +85°

Physical

Weight: 14 Kg (30.9 lbs)
Finishing: Black
IP20

Test and Certification

Accessories Included

1 x PowerCON TRUE1 female connector (code 0520P066)
1 x Omega bracket with “Fast Lock” (code 02K00467)
1 x Soft frost filter (code 02SK0472)

Accessories On Request

Aliscaf clamp for tube diameter 50 mm (Max load 200 Kg) (code 0521A033)
Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 3 x 600 mm – Max load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)
