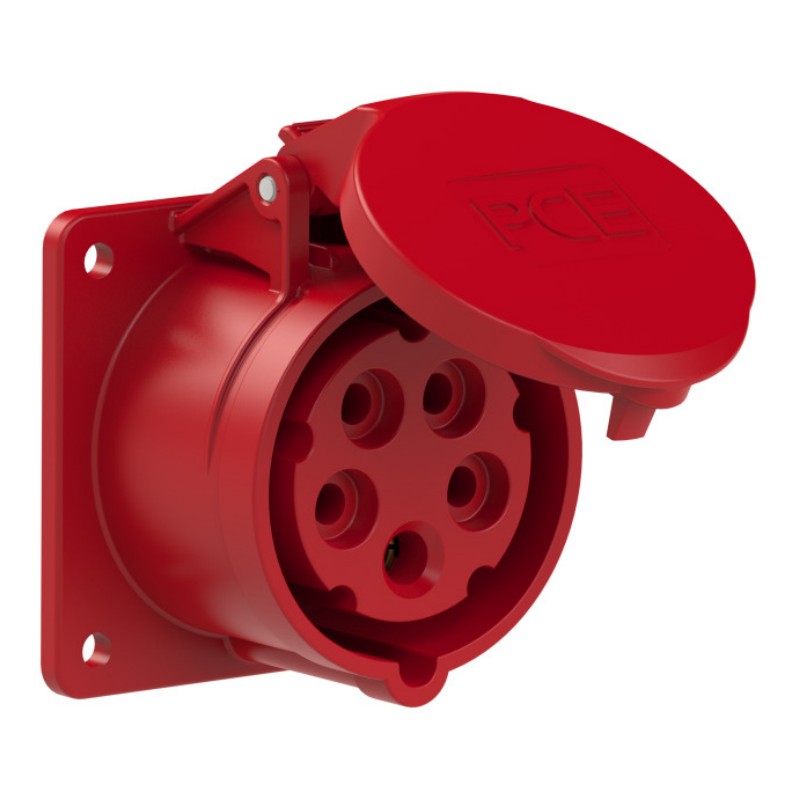

PCE CEE 315-6F7

PCE CEE-flanged socket straight (75x75mm) 16A 5p 6h IP44/IP54
6,49 €
8,32 €
Available 10 to 30 days
Product code (SKU): 124046
Product code: PCE-16P-315-6F7

Description

CEE-flanged socket straight (75x75mm) 16A 5p 6h IP44/IP54
housing material: PA6
rated current: 16A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass
connection technology: screw terminals
dimensions (flange/fixing center): 75x75 mm / 60x60 mm
IP protection class: IP44/IP54
