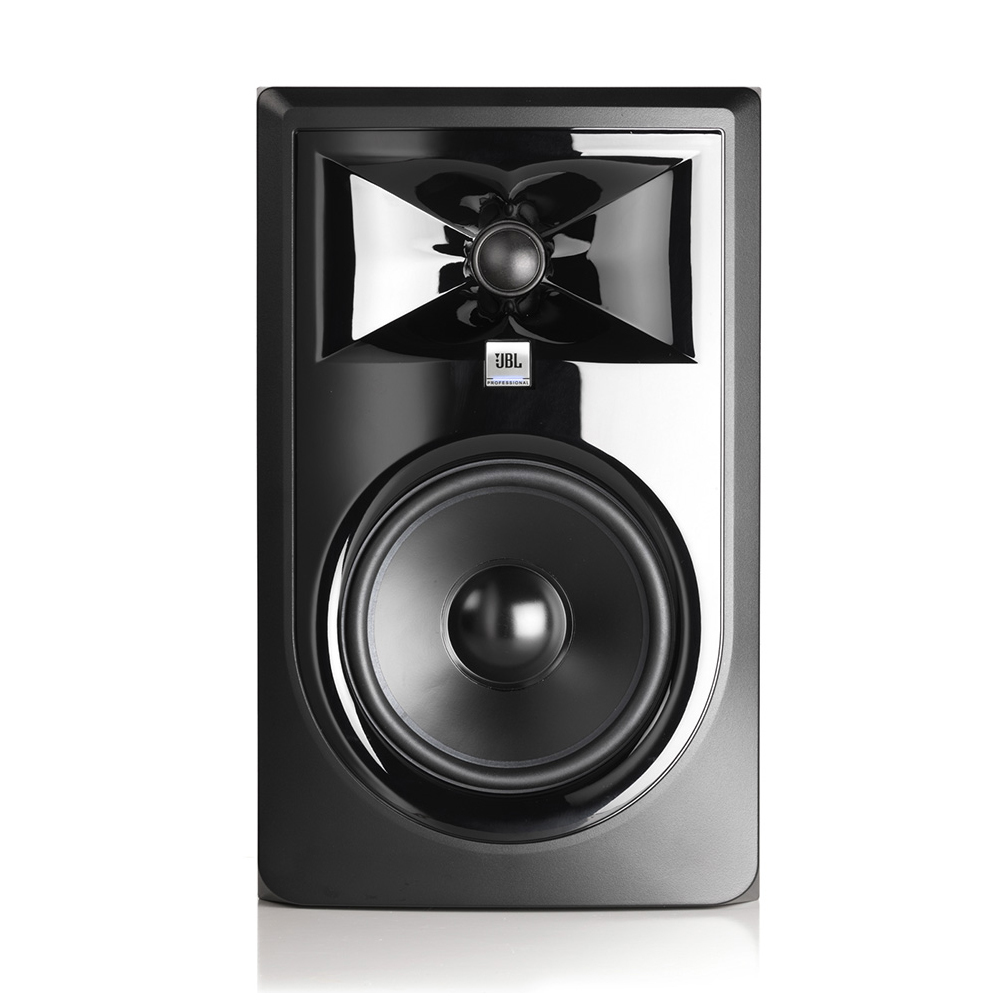

JBL 306P MKII

JBL 306P MKII 2 Way Active Studio Monitor Speaker 6.5" / 1" 112W - Black
235,31 €
272,04 €
Upon request
Product code (SKU): 120071
Product code: JBL-306P-MKII

Description

JBL 306P MKII 2 Way Active Studio Monitor Speaker 6.5" / 1" 112W
6.5" Woofer and 1" tweeter
2-Way class D amplifier 112 W (56 W woofer and 56 W woofer)
Frequency range: 47 - 20,000 Hz (+/- 3dB)
Max. SPL: 110 dB (peak)
Input sensitivity (adjustable): + 4dBu / -10dB
Boundary EQ
HF trim switch
Connections: Line input XLR and 6.3 mm jack balanced
15 mm MDF housing
Dimensions (H x W x D): 361 x 224 x 282 mm
Weight: 6.1 kg
Price per piece



Details

JBL 306P MKII specifications

Specifications

  • LF DRIVER: 165mm
  • HF DRIVER SIZE: 25mm
  • HF DRIVER TYPE: Soft dome
  • Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
  • OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT: Yes
  • INPUT SENSITIVITY (-10dBV INPUT): 92dB / 1m
JBL 306P MKII specifications

Specifications

  • Power Configuration: Bi-amplified
  • HF DRIVER POWER AMP: 56W, Class-D
  • LF Driver Power Handling: 56W, Class-D
  • Frequency Response (±3 dB): 47Hz – 20kHz
  • Frequency Range (-10dB): 39Hz – 24kHz
  • LOW FREQUENCY EXTENSION (-10dB): 39Hz
JBL 306P MKII specifications

Specifications

  • Maximum Continuous SPL: 92dB
  • Maximum Peak SPL: 110dB
  • MAXIMUM PEAK INPUT LEVEL(-10dBV / +4dBu): +6dBV / +20.3dBu
  • SYSTEM DISTORTION CRITERIA: <10% THD at maximum output with full compressor / limiter engagement
  • ELECTRICAL DISTORTION CRITERIA: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
  • Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
JBL 306P MKII specifications

Specifications

  • Coverage Angle: 120° x 90°
  • Input Connectors: 1 x XLR female, 1 x TRS female, balanced
  • HF TRIM CONTROL: -2dB, 0dB, +2dB
  • BOUNDARY EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
  • AC INPUT VOLTAGE: 100 – 240VAC (±10%), 50 / 60Hz
  • ENCLOSURE TYPE: Ported
  • Enclosure: 15mm MDF
JBL 306P MKII specifications

Specifications

  • Enclosure Finish: Matte black PVC
  • BAFFLE CONSTRUCTION: Injection-molded structural ABS
  • CABINET DIMENSIONS (H x W x D): 361 x 224 x 282mm
  • DISPLAY CARTON (H x W x D): 408 x 285 x 328mm
  • SHIPPING CARTON (H x W x D): 418 x 292 x 338mm
  • Net Weight (each): 6.1 kg
  • SHIPPING GROSS WEIGHT: 7.25 kg
