Ereimul Elidy Strip 15

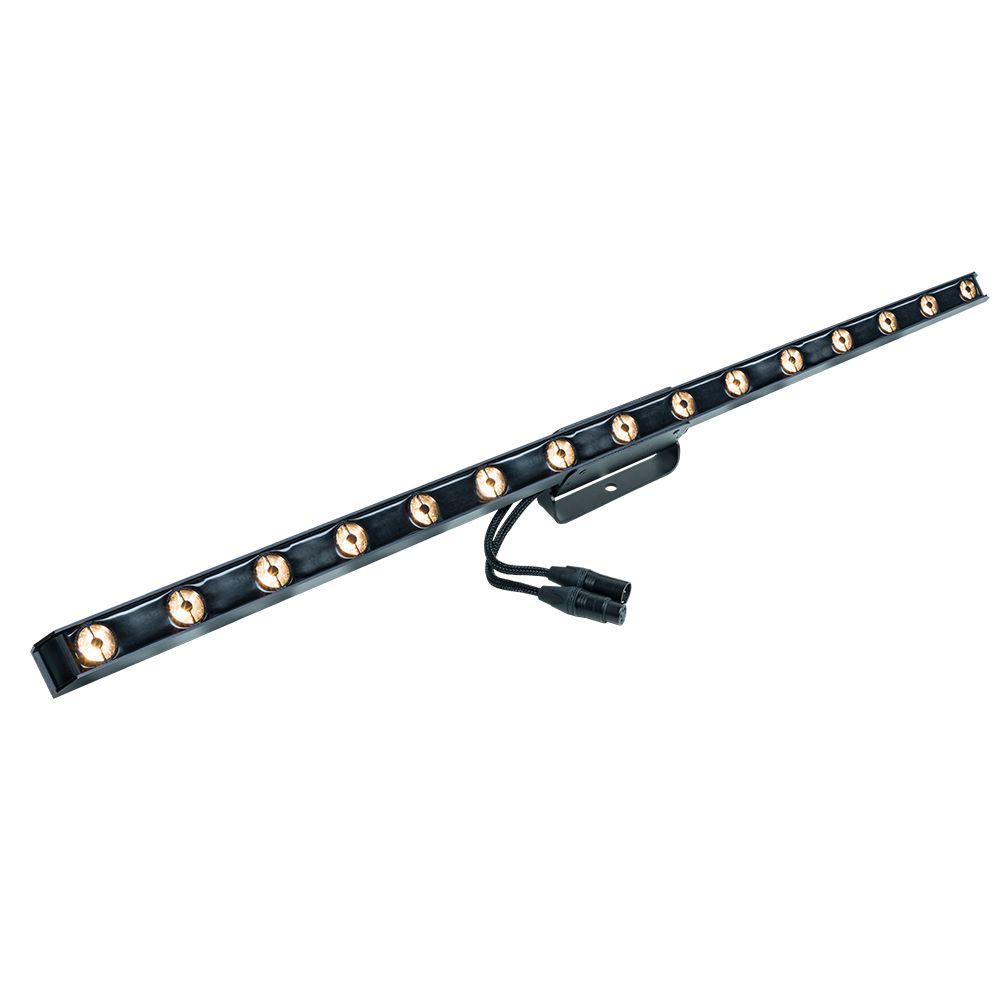

Ereimul Elidy Strip 15 Lighting Bar Pixel Wash 48W LED Warm White IP40 - Black

Variations

Available
Product code (SKU): 131316
Product code: ERE-Elidy Strip 15

Description

A staple on the world's most beautiful stages since 2012, Elidy Strip projectors have earned a solid reputation among professionals and artists alike for their elegance, incomparable luminous rendering and unique matrixing capabilities and the generation of unprecedented volumetric effects.
Elidy Strip combines high-output, calibrated, warm white LEDs with custom optics to generate extremely narrow beams which far exceed the intensity of standard LED screens.
An accelerometer-based-system means Elidy Strip can automatically detect its own orientation (vertical or horizontal) in a rig and adapt its programming to match, thus simplifying the programming process.
More exciting still, and unique to Ereimul Elidy Strip, each fixture has new on-board Addressing Technology which works by touch to set the DMX/pixel address for every fixture in turn.
Technicians and designers are going to love this fast and ingenious way of setting up their complex systems.
Elidy Strip is modular in form, based around a line of 5 or 15 very high power LEDs which are driven by state of the art electronics.
Up to 45 Elidy strip 5 [PX111] or 15 Elidy Strip 15 [PX116] can be run off one PSX9 power supply unit.
These strips can then be rigged side by side to form larger projection areas or architectural structures.


Details



EREIMUL PX 111 and 116 general

General

  • Dimensions Elidy Strip 5: 300 mm (w) x 35 mm (h) x 75 mm (d)
  • Weight Elidy Strip 5: 0.65 Kg
  • Dimensions Elidy Strip 15: 900 mm (w) x 35 mm (h) x 75 mm (d)
  • Weight Elidy Strip 15: 1.2 Kg
  • Materials: Aluminium black powder paint RAL 9005 and black ABS
  • Cooling: Passive
  • Cable type: 2 Hybrid cables 4 pins XLR IN & OUT
  • Operating temperature: 0 – 45°C
  • Warranty: 1 year
  • IP rating: IP40
EREIMUL PX 111 and 116 light

Light

  • Type of LED: High power SMD 3535
  • Number of LEDs: 25
  • Colour temperature (K): 2700 (custom color temperature on request)
  • IRC: Min 90 / Typ 92
  • Step Macadam: 3
  • Lumiinous efficacity: 98 lm/W @ 2700K
  • Optics: TIR lense / 10° / Ø 21,6 mm / PMMA clear
EREIMUL PX 111 and 116 electrical

Electrical

  • Voltage: 48 VDC
  • Current: 2 A constant current
  • Power Elidy Strip 5: 16 W
  • Power Elidy Strip 15: 48 W
EREIMUL PX 111 and 116 standards

Standards

  • CE – RoHS – REACH
  • UL certified
EREIMUL PX 111 and 116 cables

Cables

  • PX301/2: S-Cable ; 1 male plug + 1 female plug ; length 2m
  • PX301/6: S-Cable ; 1 male plug + 1 female plug ; length 6m
  • PX301/12: S-Cable ; 1 male plug + 1 female plug ; length 12m
EREIMUL PX 111 and 116 accessories

Products

  • PX111: Elidy-Strip-5
  • PX116: Elidy-Strip-15
