DTS Lighting SYNERGY 7 PROFILE

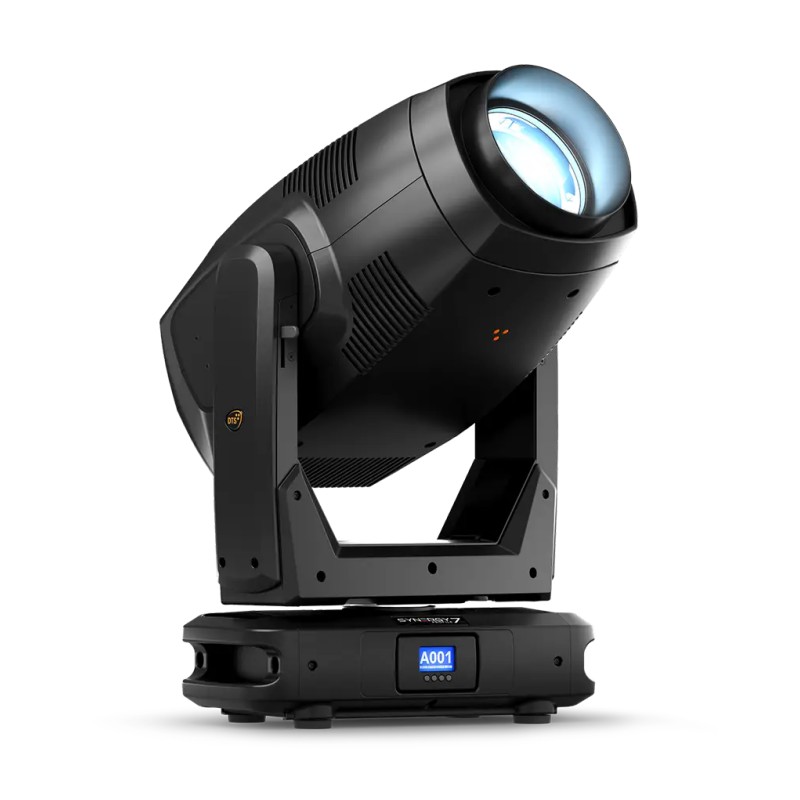

DTS Lighting SYNERGY 7 PROFILE Moving Head Profile 1050W LED CMY CTO IP20 - Black

Call for pricing

Available

Product code (SKU): 120381

Product code: DTS-SYNERGY 7 PROFILE

Downloads

Description

High-power LED source. 1050 W power with 55,500 lumens: ensures intense and uniform light output even over long distances.
7°–52° linear zoom with autofocus. Wide zoom range to easily switch from a narrow beam to a soft wash, always maintaining automatic focus.
CMY + linear CTO color system. Maximum color flexibility with continuous mixing and color temperature adjustment from 3000K to 7000K.
Advanced dynamic effects. Two rotating gobo wheels, two prisms (linear and circular), virtual animation and Dynamove FX engine for creative and immersive scenes.
4-blade rotating framing system. Precise framing system with independent blade rotation and full module rotation to create complex shapes.
Ultra-silent mode. Silent operation (36 dBA at 1 meter) for use in noise-sensitive environments like theaters, TV studios, or places of worship.
Control via DMX, RDM, Art-Net and sACN. Compatible with all major lighting control protocols for maximum integration in professional setups.
Display with backup battery. Graphic LCD with integrated battery: allows configuration even when the unit is not powered.
Robust and professional build. Solid construction with powerCON TRUE1, 3/5-pin XLR, and RJ45 connectors, designed for intensive use and transport.
Integrated electronic protections. Safety systems against overvoltage, overheating, and internal mechanical collisions for increased reliability.

Based on your selection, you may be interested in the following items

DTS Wire Rope 60kg

DTS Safety Steel Wire 60kg 3mm x 60cm with Carabiner

Available 10 to 30 days

Call for pricing

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Theatres and live shows:Precise and silent lighting, ideal for live performances and acoustically sensitive environments.

Concerts and tours:Powerful, versatile, and rich in effects, perfect for large-scale musical events.

TV studios and video production:Accurate color rendering and controllable light, suitable for professional filming and broadcasting.

Museums and exhibitions:Discreet and flexible lighting to enhance artworks and cultural spaces.

Theme parks:Dynamic effects and long lifespan, ideal for immersive shows and scenic attractions.

Trade shows and events:Professional lighting solution for booths, conventions, and corporate showrooms.

Churches and special events:Elegant movements and low noise, perfect for concerts and installations in places of worship.

Output

1050 W pure white LED source (7000 K 55500 Lumens output)
CRI>75 or CRI >90
R9>80
Average LED life: 500000 hours (L70B10)

Optical Group

101000 Lux (7°@ 5 m)
7° – 52° linear zoom with autofocus
Linear Frost filter
Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

Color Generation

Linear CMY
Linear CTO (3000 K – 7000 K)
Gel filter emulation
4-color wheel (white correction + UV)
5-color wheel (two-color generation)

Iris

Linear 16-blade Iris (15% ÷ 100%)

Dynamic Effects

Dynamove FX Engine (DTS patent)
Virtual Animation Wheel
2 customizable rotating 6-gobo wheel
Circular 24-facet rotating prism
Linear 6-facet rotating prism

Rotating Framing System

4-blade rotating framing system
Real ‘curtain’ effect for each blade
60° rotation for each blade (+/- 30°)
90° full system rotation (+/- 45°)

User Interface

LCD graphic display + 4 soft-keys; Auto-flip; Key-Lock function
Li-Fe backup battery for controlling the display settings even when the unit is not powered

Control

Art-Net 4, sACN, RDM/DMX 512 protocols
52 DMX channels (Default)
61 DMX channels:

16 bit index for insertion and rotation of each blade

16 bit index for blade system rotation

Standard, Silent, Ultra-silent operation modes:

Noise level at Ultra-silent mode 36dBA @ 1m (normal operation, full power)

Firmware updatable via DTS firmware uploader dongle

Pan & Tilt

Pan: 540°
Tilt: 260°
Tri-phase stepper motor technology
16-bit resolution
Pan / Tilt lock

Power Supply

Wide range 100-240Vac 50-60 Hz
Power consumption: 1400 W max
Power Factor: PF >0.90

Connections

DMX: XLR 3-pole and 5-pole In/Out panel connector
Power supply: powerCON TRUE1 panel connector
Art-Net / sACN: etherCON RJ45 panel connector

Circuits Protections

Overvoltage and overtemperature circuits protection
Auto-parking: internal collision protection system

Temperature

-10° / 45° C -20° / 60° C

Physical

IP20
Weight: 46.5 Kg (102.5 lbs)
Finishing: Black

Test and Certification

Accessories Included

1x powerCON TRUE1 female cable connector (code 0520P066)
2 x Kit Omega clamp “Fast Lock” (code 02K00549)

Accessories On Request

Flightcase for 1 units (code 0521C080)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
DTS firmware uploader dongle (code 03.LA.206)
