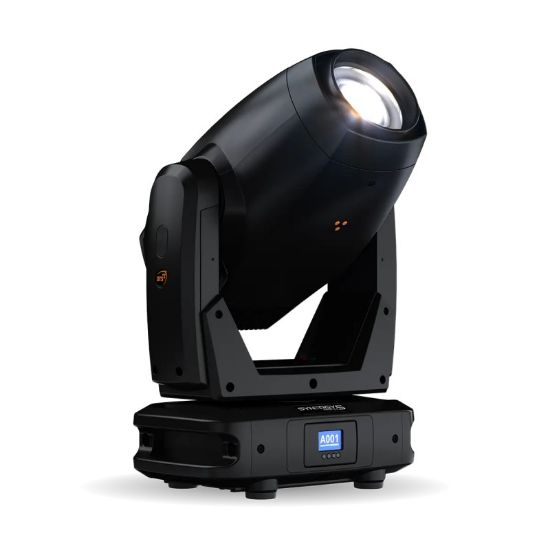

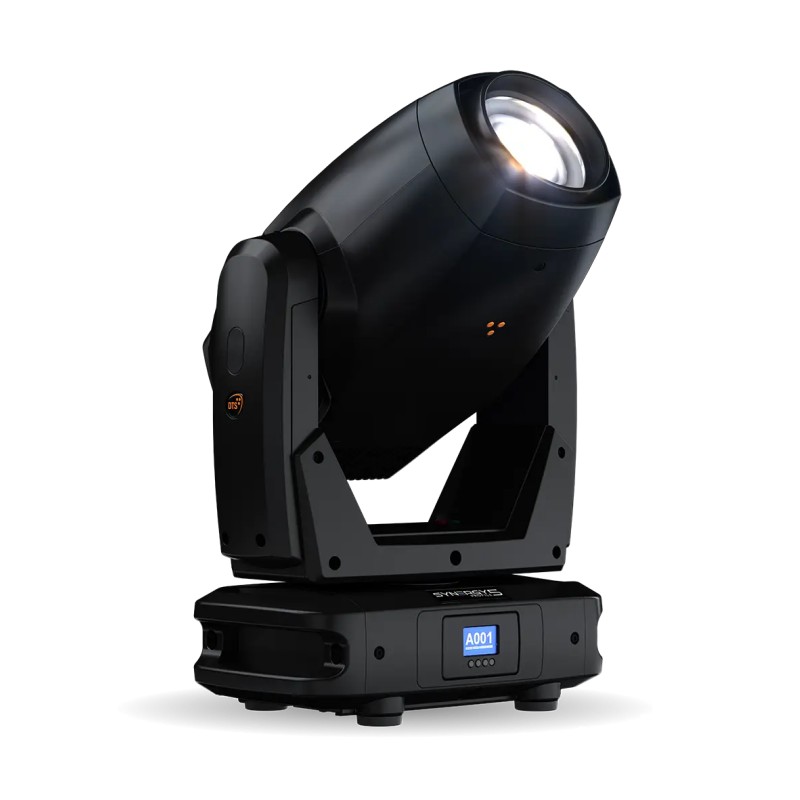

DTS Lighting SYNERGY 5 PROFILE

DTS Lighting SYNERGY 5 PROFILE Moving Head Profile 420W LED CMY CTO Color Wheel IP20 - Black

Call for pricing

Available

Product code (SKU): 115464

Product code: DTS-SYNERGY 5 PROFILE

Downloads

Description

420 W LED Source. Delivers 16,500 lumens with 7000 K white light, ideal for high-brightness professional applications.
Selectable Dual CRI. Allows switching between CRI >90 (for natural color rendering) and CRI >75 (for maximum output), via DMX.
4.6°–43° Linear Zoom with Autofocus. Enables both narrow and wide projections with automatic focusing, suitable for various stage contexts.
CMY + Linear CTO Color Mixing. Offers a wide and continuous color range, with CTO adjustable from 3000 K to 7000 K for precise white tuning.
4-Blade Rotating Framing System. Provides accurate beam shaping with independent blade and full-module rotation.
Advanced Dynamic Effects. Features rotating gobo wheel, color wheel, circular and linear prisms, plus the Dynamove FX engine for complex effects.
Silent Mode. Operates at 37 dBA @ 1m, perfect for theatres, TV studios, or any venue requiring low noise levels.
RDM / Art-Net / sACN Compatibility. Full control via DMX and network protocols, with firmware upgradeable via dongle.
Fast & Precise Pan 540° / Tilt 240°. Smooth, high-resolution movements with 16-bit stepper motors and mechanical locks for fixed installations.
Universal Power & Built-in Protections. Operates from 100 to 277 V AC, with overvoltage and overheating protection for safe, reliable use.

Based on your selection, you may be interested in the following items

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Theatre and Opera: Precise framing, high CRI for natural color rendering on stage.

TV Studios and Broadcast: Stable 7000 K light, silent operation, ideal for filming and studio sets.

Concerts and Live Tours: Powerful and dynamic, with special effects for high-impact shows.

Corporate Events: Quality lighting for conferences, product launches, and elegant settings.

Museums and Exhibitions: Accurate framing and silent performance for artistic installations.

Theme Parks: Reliable for synchronized lighting effects and long-term installations.

Output

420 W pure white LED source (7000 K 16,500 Lumens output)
Double CRI (DMX-selectable): CRI >90 or CRI >75
Average LED life: 50,000 hours (L70B10)

Optical Group

49,900 Lux (4.6°@ 5 m)
4.6° – 43° linear zoom with autofocus
Linear soft frost fi lter
Medium and Heavy frost filters available on demand
Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

Color Generation

Linear CMY
Linear CTO (3000 K – 7000 K)
Gel filter emulation 6-color wheel
Two-color generation

Dynamic effects

Dynamove FX Engine
Virtual Animation Wheel
Customizable rotating 6-gobo wheel
Circular 24-facet rotating prism
Linear 6-facet rotating prism

Rotating Framing System

4-blade rotating framing system
Real ‘curtain’ effect for each blade
60° rotation for each blade (+/- 30°)
90° full system rotation (+/- 45°)

Control

LCD graphic display + 4 soft-keys; Auto-fl ip; Key-lock function
Art-Net 4, sACN, RDM/DMX protocols
Standard and Silent operation modes

Noise level at Silent mode: 37dBA @ 1m (normal operation, full power)

Firmware updatable via DTS firmware uploader dongle
Li-Fe backup battery for controlling the display settings even when the unit is not powered

DMX

44 DMX channels (default)
53 DMX channels

16 bit index for insertion and rotation of each blade

16 bit index for blade system rotation

Power Supply

Wide-range 100-277 Vac 50 / 60 Hz
Power consumption: 550 W max
Power Factor: PF >0.90

Pan & Tilt

Pan: 540°: 2.7 sec.
Tilt: 240°: 1.6 sec.
Tri-phase stepper motor technology
16-bit resolution
Selectable speed ranges
Pan / Tilt lock

Connections

DMX: XLR 3-pole and 5-pole In / Out panel connectors
Power supply: powerCON TRUE1 panel connector
Art-Net / sACN: etherCON RJ45 panel connector

Circuits Protections

Overvoltage circuit protection and overtemperature circuit protection

Temperature

Operating: -10° +45° C

Physical

IP20
Weight: 35 Kg (77 lbs)
Finishing: Black

Test and Certification

Accessories Included

Synergy EZ-shell – 560 x 490 x 670 mm – 2 pcs needed in each flightcase (code 0512K146.1)
1 x Soft frost filter – already mounted on the unit (code 02SK0410)
1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x XLR 5 pins female cable connector (code 0508B147)
1 x XLR 5 pins male cable connector (code 0508B148)
2 x Kit Omega clamp “Fast Lock” (code 02K00549)

Accessories On Request

Medium frost filter (code 02SK0428)
Heavy frost filter (code 02SK0430)
Flightcase for 2 units (code 0521C073)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
DTS firmware uploader dongle (code 03.LA.206)
