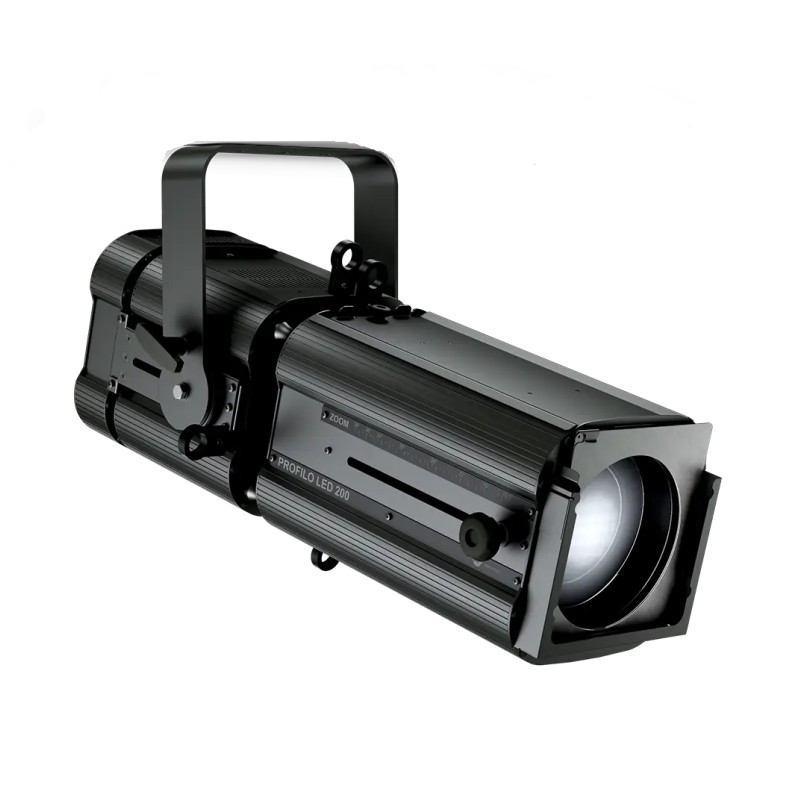

DTS Lighting PROFILO LED 200 WH

DTS Lighting PROFILO LED 200 WH Static Fixture Profile 200W LED White IP20 - Black

Variations

Call for pricing

Available 10 to 30 days

Product code (SKU): 115920

Product code: DTS-PROFILO LED 200 WH

Downloads

Description

High-Power LED (200 W). Equipped with a high-efficiency 200 W white LED, available in 3200 K, 4000 K, and 5600 K versions. It delivers intense and uniform illumination, suitable for a wide range of professional environments.
High Color Rendering Index (CRI >95). Ensures natural and accurate color reproduction, which is essential in theatre, photography, and broadcast applications.
Motorized Linear Zoom (15.5°–38°). Allows smooth transition from a narrow to a wide beam angle, offering flexibility in lighting adjustments.
Framing System with Asymmetric Blades. Features four independent blades (plus an optional fifth), arranged on different planes for precise beam shaping—ideal for isolating subjects or creating sharp-edged effects.
Gobo Compatibility (Type B). Supports glass or metal gobos for projecting patterns, textures, or logos, with a 60 mm image diameter.
DMX/RDM and Manual Control. Can be controlled via DMX 512 or RDM protocols for professional lighting systems, or locally using the built-in LED display and soft-touch buttons.
Wide Range Power Supply & Low Consumption. Operates from 100 to 240 VAC with a maximum power draw of just 200 W. Its high power factor (>0.94) ensures energy-efficient performance.
Built-in Protections. Includes overvoltage and overtemperature protection circuits, improving operational safety and extending the fixture’s lifespan.
Rugged Build & Friction Yoke. Durable housing with black finish (IP20 rating), and a sliding yoke with clutch system that allows smooth and secure tilt adjustments.
Firmware Upgradable. The system can be updated via DTS firmware dongle, ensuring future compatibility with new features or standards.

Based on your selection, you may be interested in the following items

DTS Wire Rope 60kg

DTS Safety Steel Wire 60kg 3mm x 60cm with Carabiner

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

DTS Scena S / Profilo

DTS Floor Stand for Scena S / Profilo

Available 10 to 30 days

Call for pricing

Applications

Theatre: The fixture is ideal for stage lighting in theatrical settings, thanks to its high CRI (>95), which ensures accurate color rendering on costumes and scenery.The framing system allows precise beam shaping to isolate actors and stage elements.

TV Studios & Broadcast: Perfect for TV studios due to its soft, even, flicker-free light output and calibrated color temperatures (3200 K, 4000 K, 5600 K). DMX/RDM control enables integration with automated stage systems.

Live Events & Indoor Concerts: Used for dynamic stage lighting effects or to define scenic elements, thanks to its motorized zoom, gobo compatibility, and precise DMX control. Its robust construction makes it suitable for touring and temporary installations.

Conferences, Conventions & Corporate Events: Provides clear and controlled lighting for speakers or backdrops, with low power consumption and minimal maintenance. The high light quality enhances the visual result for video recordings or live streaming.

Museums & Temporary Exhibitions: Its ability to shape and adjust the beam makes it ideal for highlighting artworks or specific objects without light spill. The long LED lifespan reduces the need for maintenance.

Photo & Film Studios: Used as a key or rim light in portrait and set photography. The high CRI ensures color accuracy in image capture, while DMX adjustments allow smooth transitions during shooting.

Output

Single high-power 200 W white LED (3200 K)
CRI >95
Also available with 4000 K or 5600 K LED (CRI>90)
LED lifespan: 50,000 hours (L70B10)

Optical Group

15,5°- 38° linear zoom;
High definition zoom lens with double optical condenser lens

Framing System

Framing system with 4 asymmetric blades
Each blade can be inverted
70° full system rotation (+/- 35°)
Blades operate on three discrete plans
A 5th blade can be added

Control

DMX 512 / RDM or Manual control
Multi-function 4-digit 7-segment
LED display + 4 soft keys
Firmware updatable via DTS firmware uploader dongle

Gobos

Gobo type B metal or glass

Ø external: 86 mm

Ø of image: 60 mm

Thickness: from 0,2 to 2 mm

DMX

4 DMX channels (default)
1 DMX channel
“Fine” mode

Power Supply

Electronic Wide-range 100-240Vac 50-60 Hz
Power consumption: 200 W max
Power Factor: PF >0.94

Connections

Power supply: PowerCON TRUE1 In/Out panel connectors
DMX: XLR 5-pole In/Out panel connectors

Circuits Protections

Overvoltage circuit protection and overtemperature circuit protection

Temperature

Operating: -10° +40° C

Physical

IP20
Internal system with four removable shutters
Yoke featuring an exclusive sliding system with clutch for a wider tilt
Weight: 16.9 Kg (37.3 lbs)
Finishing: Black

Test and Certification

Accessories Included

ON BOARD

1 x Soft edge filter assembly (code 02TP0047)

1 x Filterframe Black finishing (code 02M00420.49)

IN THE BOX

1 x PowerCON TRUE

1 female cable connector (code 0520P066)

1 x XLR 5 pins female cable connector (code 0508B147)

1 x XLR 5 pins male cable connector (code 0508B148)

4 x Shutter blades assembly (single blade code 02SK0429)

Accessories On Request

5th shutter blade (code 02SK0429)
Iris/Diaphragm (code 03.TA225)
Gobo holder (code 03.TA226)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Universal Hook Clamp – Max load 40 Kg – 88 lbs (code 0521A047)
Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)
