DTS Lighting TENORE 5 HQS

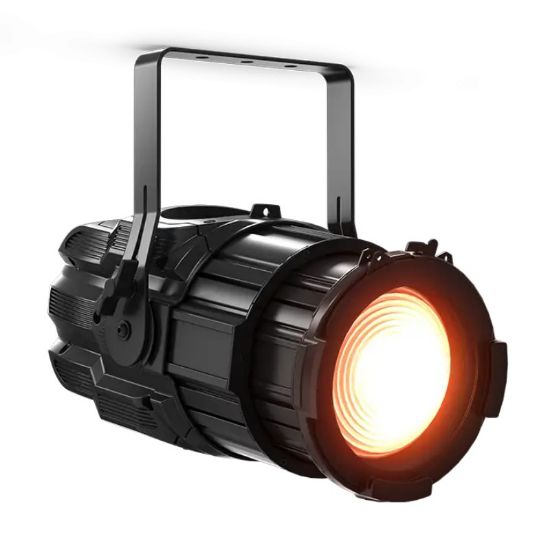

DTS Lighting TENORE 5 HQS Fresnel Fixture Wash LED RGBACL Color Wheel IP20 - Black

Call for pricing

Available

Product code (SKU): 126089

Product code: DTS-TENORE 5 HQS

Downloads

Description

High-quality multichip LED source. Delivers up to 9,300 lumens with Fresnel lens and ensures professional color rendering, with CRI up to 98 and TLCI up to 96—ideal for broadcast, theatre, and photography lighting.
Flexible optical system with linear zoom. Available with interchangeable Fresnel or PC lenses, featuring smooth motorized zoom: 12°–62° (Fresnel) or 6.5°–45° (PC), adaptable to a wide range of scenic and ambient needs.
Advanced color mixing with 6-color LED engine. 6-channel LED engine with CCT range from 1800 K to 10,000 K, green saturation control, emulation of over 100 theatrical gels, and “Raw RGBACL” mode for maximum color freedom.
Hi-Q linear, step-free dimmer. Smooth dimming technology that avoids visible jumps even at low levels, with tungsten emulation for a warm, realistic look—ideal for theatre and television.
Silent operation and smart thermal management. Down to 26 dBA in “Ultra Silent” mode, with 4 fan modes. Fans auto-adjust to output level for maximum silence without compromising performance.
Professional and updatable control system. DMX/RDM compatible, with LCD display and jog shuttle. Firmware updatable via dongle. Includes 5 DMX operating modes.
Low power consumption and high efficiency. Max power draw of 390 W, supports 100–240 V AC input with Power Factor > 0.94, ensuring reliable operation even in complex setups.
Robust build and professional finishes. Available in black or white finish, IP20-rated, with low weight (9.3 kg Fresnel / 10.4 kg PC). Designed for demanding indoor environments such as theatres, TV studios, and fixed installations.

Based on your selection, you may be interested in the following items

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Theatres: Perfect for stage lighting thanks to smooth dimming, natural color rendering, and tungsten lamp emulation.

TV Studios: Excellent light quality (high CRI and TLCI) and low noise, ideal for shooting in quiet environments and close-up camera work.

Virtual Production Studios: Wide CCT range, filter emulation, and RGBACL control enable precise integration with digital sets and green screens.

Auditoriums: Provides visual comfort, quiet adjustment, and even illumination—ideal for live events, conferences, and institutional performances.

Conference Rooms: Compact design, elegant finish, and flexible color control make it ideal for fixed installations in corporate settings.

Output

Multi chip LED Source
Lumens output: 9,300 lm (Fresnel lens)
Lumens output: 7180 lm (PC lens)
CRI: up to 98
TLCI: up to 96
LED Lifespan: 50000 hours (L70B10)

Optical Group

Ø 175 mm Fresnel lens or Antihalo (PC) lens
Ø 150 mm PC lens
Linear zoom

12° – 62° with Frensel lens

6.5° – 45° with PC lens

White Generation

6-color LED engine
Linear CCT (1800 K – 10000 K)
Linear ‘Green saturation’
100 gel filters emulation:

Linear crossfade from gel filters emulation to CCT whites

Linear crossfade between emulated gel filters

True color of gel filters emulation at any CCT values

“Raw” RGBACL color-mixing in Advanced’ mode

Dimmer

‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
Tungsten emulation – CCT variation emulates behavior of Halo-lamps

Control

LCD graphic display + Jog Shuttle
RDM/DMX 512 protocols
‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes

Noise level

Standard: 34dBA @ 1m (normal operation, 100% power)

Silent: 29dBA @ 1m (normal operation, 72% power)

Ultra Silent: 26dBA @ 1m (normal operation, 57% power)

Automatic: fans adapt to operational status (output power priority)

Firmware updatable via DTS firmware uploader dongle

DMX

5 DMX modes:

CCT (Default) – Correlated Color Temperature

Advanced – Correlated Color Temperature + Raw control for color channels RGBACL

Basic – Correlated Color Temperature with priority on Gel Library and RGBACL color

Expo – Dimmer 8 bit; Correlated Color Temperature priority on Gel Library

CMY Emulation – Cyan, Magenta, Yellow and CTO emulation Mode

Power Supply

Wide range 100/240 Vac 50-60 Hz
Power consumption: 390 W max / 230Vac
Power Factor: PF >0.94

Connections

DMX: XLR 5 pole In/Out panel connectors
Power supply: PowerCON TRUE1
In/Out panel connectors

Circuits Protections

Overvoltage and overtemperature circuit protection

Temperature

Operating: -10° +45° C
Storage: -20° +60° C

Physical

Weight:

FR – 9,3 Kg (20,5 lbs)

PC – 10,4 Kg (22,9 lbs)

Finishing: Black – White
IP rating: IP20

Test and Certification

Accessories Included

1x PowerCON TRUE1 female cable connector (code 0520P066)
1x XLR 5 pins female cable connector (code 0508B147)
1x XLR 5 pins male cable connector (code 0508B148)
1x Filter frame Black finishing – already installed on the projector (code 02M093424.49)

Accessories On Request

Barndoor 4 leaf Black finishing (code 03.TBD07.49)
Barndoor 8 leaf Black finishing (code 03.TBD09.49)
Tophat (code 03.TA235)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)
Professional G-QUICK clamp – max load 100 Kg (code 0521A037)
Safety cable 3 x 600 mm – BGV-C1 certified (code 0521A049)
Single stranded: Max 20 Kg (44 lbs)
Double stranded: Max 30 Kg (66 lbs)
Safety cable for Barndoor / FIlterframe – Ø 0,8mm (code 0521A048)
DTS firmware uploader dongle (code 03.LA.206)
