DTS Lighting CORE

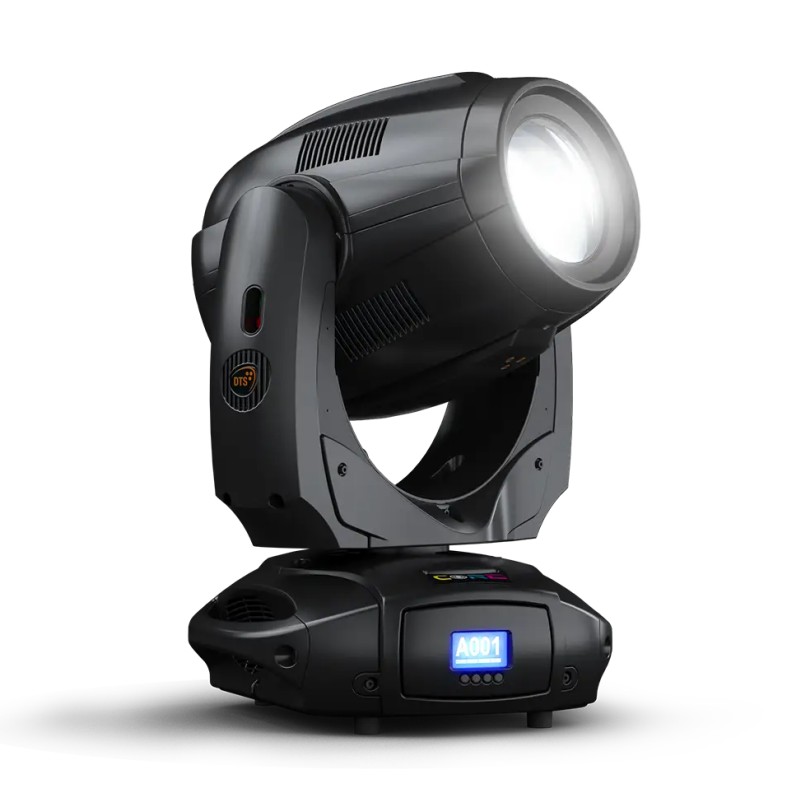

DTS Lighting CORE Moving Head Spot / Beam 440W High Pressure Lamp Color Wheel IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 115633

Product code: DTS-CORE

Downloads

Description

High-performance light source. Equipped with a 440 W Osram Sirius HRI lamp, delivering 24,000 lumens at 7000 K color temperature and CRI 80. Ideal for applications requiring high brightness and color accuracy.
Powerful and versatile beam. Reaches up to 1,530,000 lux at 5 meters, with combined Spot and Beam functions in one optical group, offering flexibility for any lighting setup.
16-bit motorized zoom and focus. Features motorized linear zoom (2°–39°) and motorized focus, both with 16-bit resolution for smooth and precise adjustment.
Advanced dimmer, shutter and strobe system. Includes linear dimmer, shutter, and strobe adjustable from 0.85 to 10 flashes/sec, enabling impactful lighting effects.
Evolved color generation. 16-color wheel with two-tone mixing for intense, dynamic, and smooth color transitions.
Professional dynamic effects. Customizable rotating gobo wheel (9 gobos) and fixed wheel (17 gobos + animation sector + open), with an 8-facet rotating prism. Ideal for projections, textures, and moving effects.
Intuitive and flexible control. Equipped with auto-flip LCD display and 4 soft keys for quick navigation. Compatible with DMX 512 and RDM protocols.
Firmware upgradeable. Supports firmware updates via DTS dongle to keep the unit up to date.
Selectable DMX modes. Two DMX channel configurations: 24 channels (default) and 18 channels, adaptable to different control needs.
Ultra-fast and silent Pan & Tilt. Wide movements (Pan 540°, Tilt 244°) in just a few seconds, using tri-phase stepper motors with 16-bit resolution and mechanical lock.
Energy efficiency and protections. 600 W power consumption with Power Factor >0.90 and automatic energy-saving mode. Includes overvoltage and overtemperature protection.
Professional-grade connections. DMX XLR 3- and 5-pin In/Out connectors and PowerCON In/Out for fast and safe integration in any setup.
Robust and lightweight structure. Compact weight (24.3 kg), elegant black finish, and IP20 protection rating, suitable for professional indoor use.

Based on your selection, you may be interested in the following items

DTS Flightcase HQ 2 Evo / Core

DTS 2 Unit Flightcase HQ for Evo / Core

Available 10 to 30 days

Call for pricing

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Wire Rope 60kg

DTS Safety Steel Wire 60kg 3mm x 60cm with Carabiner

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Concerts and festivals: Perfect for live events thanks to its powerful beam and dynamic effects.

TV studios and video productions: Supports quick transitions and sharp projections.

Theatre and live shows: Versatile scenic effects and silent movement.

Corporate events and trade shows: Professional visual impact for conventions and product launches.

Temporary and architectural installations: Ideal for enhancing structures and scenic elements.

Clubs and discos: Engaging light effects and fast scene changes.

Output

Lamp: Osram Sirius HRI 440 W (24,000 Lumens)

Color temperature: 7000K

CRI: 80

Average lamp life: 1,500 hours

Optical Group

Improved optical group: Spot and Beam all in one
1,530,000 Lux at 5 m
16-bit motorized wide-excursion linear zoom
Beam opening: 2° – 39°
16-bit motorized linear focus
Linear dimmer / shutter / strobe (0.85 flash/sec to 10 flash/sec)
Frost Filter

Dynamic Effects

Overlapping wheel for multiple effects:

Customizable rotating gobo wheel (9 gobos)

Fixed gobo wheel (17 gobos + animation sector + open)

8-facet rotating prism

Color Generation

16-color wheel
Two-tone generation

DMX

24 DMX channels (default)
18 DMX channels

Pan & Tilt

Pan: 540°: 2.7 s
Tilt: 244°: 2 s
Tri-phase stepper motor technology for ultra-fast silent movements
16-bit resolution
Selectable speed ranges
Pan / Tilt lock

Control

Auto flip LCD graphic display + 4 soft-keys (control / management of the main parameters)
Controlled via DMX 512 and RDM standard digital communication protocols
Firmware updatable via DTS firmware uploader dongle

Power Supply

Wide-range 100-240Vac 50-60 Hz
Power consumption: 600 W with PFC
Power saving mode (the lamp dims to 80% after shutter closure)
Power Factor: PF >0.90

Connections

DMX: XLR 3-pole In/Out and 5-pole In/Out panel connectors
Power supply: PowerCON In/Out panel connectors

Circuits Protections

Overvoltage and overtemperature circuit protection

Temperature

Operating: -10° +40° C

Physical

IP20
Weight: 24.3 Kg (53.6 lbs)
Finishing: Black

Test and Certification

Accessories Included

1 x PowerCON female cable connector(code 0520P014)
1 x XLR 5 Pins male cable connector(code 0508B148)
1 x XLR 5 Pins female cable connector(code 0508B147)
2 x Omega Bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

Accessories On Request

Lamp 440W SIRIUS HRI (code 0505S039)
Flightcase for 2 units (code 0521C065.2)
Aliscaf clamp for tube diameter 48-51 mm – max. load 200 Kg (code 0521A033)
G-QUICK clamp Professional -max. load 100 Kg (code 0521A037)
Custom gobo for rotating wheel (code 0516R001.58)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 3 x 600 mm – Max. load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)
