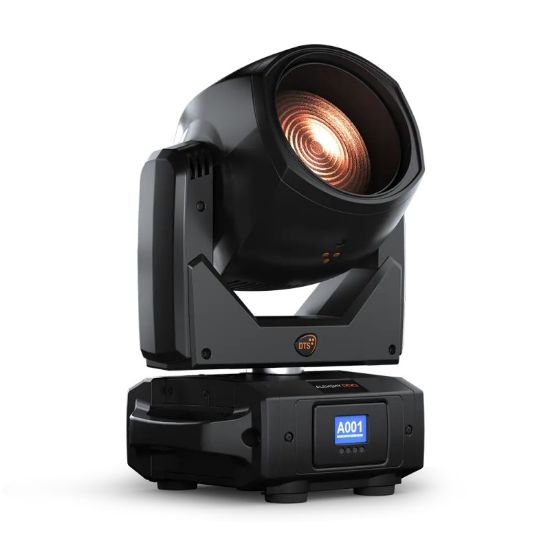

DTS Lighting ALCHEMY PRO

DTS Lighting ALCHEMY PRO Moving Head Wash LED RGBACL Color Wheel IP20 - Black

Call for pricing

Upon request

Product code (SKU): 131121

Product code: DTS-ALCHEMY PRO

Downloads

Description

High luminous output and exceptional color quality. The unit delivers 8800 lumens with CRI up to 98, R9 up to 95, and TLCI up to 96, ensuring extremely accurate color rendering for professional applications.
Fresnel optics with linear zoom and motorized accessories. Features a 175 mm Fresnel lens and motorized zoom from 10° to 36°, with frost filter and retractable top hat controllable via DMX for flexible beam shaping.
6-color LED engine with linear CCT generation. The RGBACL engine allows advanced mixing, CCT adjustment from 1,800 K to 10,000 K, and green/magenta point control, delivering a wide color spectrum and precise white light.
Emulation of over 100 professional gel filters. Supports linear crossfades between gel filters and CCT values, maintaining color fidelity at any temperature, ideal for broadcast and theatrical environments.
Advanced "Raw" mode and extra-saturated colors. Includes DMX-selectable filters (deep red and deep blue) to expand the visible spectrum, with "Raw RGBACL" mode offering direct control of each channel.
Hi-Q dimmer and halogen simulation. The Hi-Q dimmer ensures smooth brightness transitions even at low levels, with no visible steps, while tungsten emulation replicates halogen lamp behavior.
Versatile and updatable control. LCD display with soft keys, RDM/DMX512, Art-Net 4 and sACN (on request), auto-flip function, silent modes, and firmware updates via DTS dongle.
Flexible DMX control for all needs. The fixture offers five preset DMX modes suitable for various applications—from basic single-channel control to full parameter management in advanced mode, including CMY emulation and tradeshow use.
Fast and accurate movements. Moving head with 540° Pan (1.8 s) and 215° Tilt (1.1 s) with 16-bit resolution, ensuring smooth and responsive positioning in live environments.
Robust and reliable structure. Professional-grade construction with IP20 rating, 14.5 kg weight, PowerCON TRUE1 and 3/5-pin XLR connectors, electronic protections, and CE certification.

Based on your selection, you may be interested in the following items

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Theatres and performance halls: Ideal for overhead lighting that is precise and discreet, without interfering with the scene or the audience.

TV studios and broadcast environments: Provides stable light with a high Color Rendering Index (CRI), essential for image quality during recording.

Museums and exhibitions: Enhances the presentation of artworks without visual intrusion or distracting the viewer.

High-end corporate and retail events: Offers elegant and programmable lighting, suitable for premium settings requiring aesthetic care and dynamic control.

Performing arts academies and schools: Suitable for technical and educational use, delivering professional lighting for rehearsals, training, and instruction.

Output

Lumen output: 8800
CRI: up to 98
R9: up to 95
TLCI: up to 96
LED lifespan: 50000 hours (L70B10)

Optical Group

Ø 175 mm Fresnel lens
10°- 36° linear zoom
Indexable beam shaper (2:1 ratio) with endless continuous rotation
Heavy frost filter insertable via DMX
Retractable ‘top hat’

Dimmer

‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
Tungsten emulation – CCT variation emulates behavior of Halo-lamps

Color/White Generation

6 color LED engine
Linear CCT (1,800 K – 10,000 K)
Green saturation: Linearly adjustable green/magenta point
100 gel filters emulation:

Linear crossfade from gel filters emulation to CCT whites

Linear crossfade between emulated gel filters

True color of gel filters emulation at any CCT values

“Raw” RGBACL color-mixing in ‘Advanced’ mode
Extra deep colors: Two DMX-selectable filters (‘deep blue’ and ‘deep red’) allow to further extend the range of reproducible colors toward the two ends of the visible spectrum
HQS (High Quality Spectrum) – DTS trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances.

DMX

5 DMX modes:

1. CCT (Default)

2. Advanced (Raw)

3. Basic

4. Expo

5. CMY Emulation

Pan & Tilt

Pan 540° : 1.8 s
Tilt 215° : 1.1 s
16-bit resolution

Control

LCD graphic display with 4 soft keys (“auto-flip” and “key-lock” functions available)
RDM / DMX 512 protocol
Art-Net 4, sACN protocols available on request
‘Standard’ , ‘Silent’ operation modes. (automatic noise control up to the threshold of the operation modes)

Standard operation mode 42 dBA@1mt (100% lumen output power)

Silent operation mode 36 dBA@1mt (80% lumen out power)

Firmware: Internal operating system updatable via DTS dongle firmware uploader
“Li-Fe” backup battery allowing the use of the on-board unit display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down

Power Supply

Electronic Wide-range 100/240 Vac 50-60 Hz
Power consumption: 400 W max
Power Factor: PF >0.94

Connections

Power supply: PowerCON TRUE1 In/Out panel connectors
DMX: XLR 3-pole and 5-pole In/Out panel connectors

Circuits Protections

Overvoltage and overtemperature circuit protection

Temperature

Operating: -10° / 45°C
Storage: -20° / 60°C

Physical

Weight: 14,5 Kg (32 lbs)
Finishing: Black
IP rating: IP20

Test and Certification

Accessories Included

1 x powerCON TRUE1 female cable connector (code 0520P066)
1 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467)

Accessories On Request

Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Safety cable 3 x 600 mm – Max load 20 Kg (code 0521A049)
Flight case x 4 Alchemy PRO (code 0521C082)
DTS firmware uploader dongle (code 03.LA.206)
