DTS Lighting ALCHEMY 7

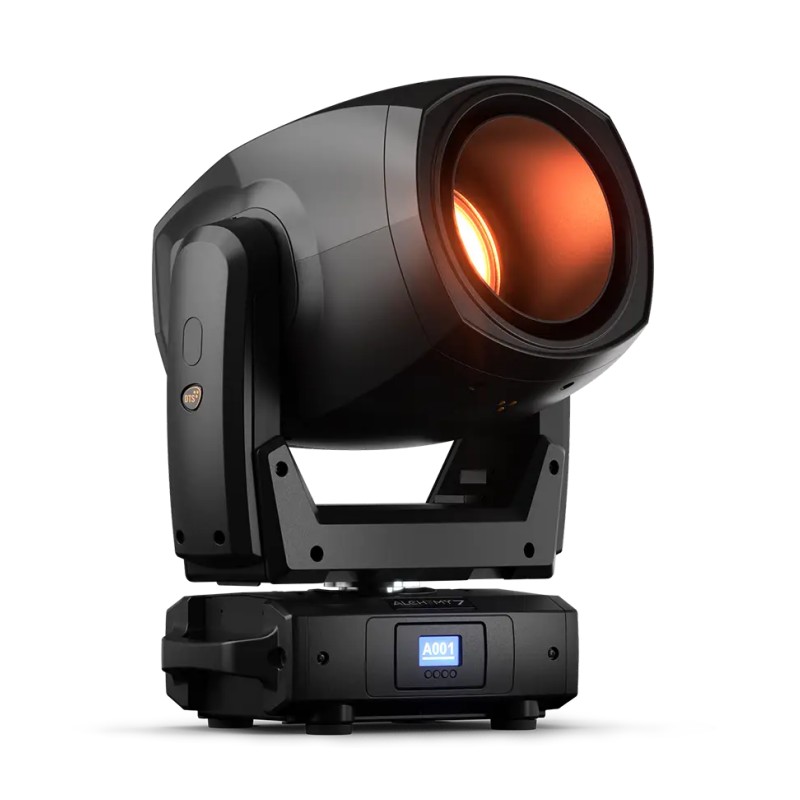

DTS Lighting ALCHEMY 7 Moving Head Wash 800W LED RGBACL Color Wheel IP20 - Black

Call for pricing

Available

Product code (SKU): 121877

Product code: DTS-ALCHEMY 7

Downloads

Description

Powerful light output (22,000 lumens). Delivers high luminous flux ensuring visibility even on large stages or in complex environments.
Exceptional color quality (CRI up to 98, TLCI up to 96). Ensures natural and faithful color rendering, ideal for broadcast, cinema, and theatrical applications.
6-color LED engine with CCT range from 1,800 K to 10,000 K. Allows full-spectrum white light (from tungsten to cool daylight) and rich saturated or pastel colors.
15°–50° linear zoom with O 250 mm Fresnel lens. Enables easy adjustment of beam width from a narrow, focused spot to a soft, wide wash.
Two-blade rotating framing system. Precisely shapes the light beam with a “curtain” effect, ideal for defining specific areas on stage.
Smooth dimming with Hi-Q Dimming technology. Provides seamless transitions even at low levels, simulating tungsten lamp behavior.
Full control via DMX/RDM, Art-Net, and sACN. Compatible with all major lighting control protocols, including optional wireless DMX for maximum flexibility.
Gel emulation and “Advanced RGBACL” color mixing mode. Faithfully reproduces over 100 gel filter effects and enables advanced creative color control.
“Silent” mode with 38 dBA sound level. Ideal for theatres, TV studios, or museums where noise must be minimized.
Built-in “Li-Fe” backup battery for display and safety. Keeps the onboard display operational even without power and ensures secure shutdown procedures.

Based on your selection, you may be interested in the following items

DTS G-Quick 100kg

DTS G-Quick Clamp Professional 100kg for Tube Φ38mm-Φ51mm

Available 10 to 30 days

Call for pricing

DTS Dongle

DTS Dongle Firmware Uploader Cable Interface

Available 10 to 30 days

Call for pricing

Applications

Theatre: Ideal for stage lighting thanks to precise color control, smooth dimming, and high white light quality.

Television and Broadcast: High color rendering (CRI up to 98, TLCI up to 96) perfect for video shooting, with soft and natural light.

Concerts and Live Shows: Powerful light output (22,000 lumens), advanced color effects, and mechanical robustness for touring use.

Corporate Events and Trade Shows: Versatility and wide color range to enhance booths and environments with dynamic or subtle lighting.

Museums and Permanent Installations: High light quality, silent operation, and the ability to emulate gels and traditional lamps.

Indoor Architectural Spaces: Fresnel optics and linear zoom to shape the lighting atmosphere in exhibition areas, sound stages, or conference halls.

Cinema and Video Production: Accurate color reproduction and detailed CCT adjustment for cinematic and commercial filming.

Output

Lumen output: 22,000
CRI: up to 98
R9: up to 95
TLCI: up to 96
LED lifespan: 50.000 hours (L70B10)e LED life: 500000 hours (L70B10)

Optical Group

Ø 250 mm Fresnel lens
15°- 50° linear zoom
Indexable beam shaper (2:1 ratio) with endless continuous rotation
Heavy frost filter insertable via DMX
Retractable ‘top hat’

Color/White Generation

6 color LED engine
Linear CCT (1,800 K – 10,000 K)
Green saturation: Linearly adjustable green/magenta point
100 gel filters emulation:

Linear crossfade from gel filters emulation to CCT whites

Linear crossfade between emulated gel filters

True color of gel filters emulation at any CCT values

“Raw” RGBACL color-mixing in ‘Advanced’ mode
Extra deep colors: Two DMX-selectable filters (‘deep blue’ and ‘deep red’) allow to further extend the range of reproducible colors toward the two ends of the visible spectrum
HQS (High Quality Spectrum) – DTS trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances

Dimmer

‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
Tungsten emulation – CCT variation emulates behavior of Halo-lamps

Rotating Framing System

2-blade rotating framing system
Real “curtain” effect for each blade
60° rotation for each blade (+/- 30°)
180° full system rotation (+/- 90°)

DMX

5 DMX modes:

1. CCT (Default)

2. Advanced (Raw)

3. Basic

4. Expo

5. CMY Emulation

Pan & Tilt

Pan 540° : 3.8 s
Tilt 220° : 2.1 s
16-bit resolution
Pan/Tilt Lock

Control

LCD graphic display with 4 soft keys (“auto-flip” and “key-lock” functions available)
RDM / DMX 512 protocol, Art-Net 4, sACN protocols
Wireless DMX available on request
‘Standard’ , ‘Silent’ operation modes. (automatic noise control up to the threshold of the operation modes)

Standard operation mode — dBA@1mt (100% lumen output power)

Silent operation mode 38 dBA@1mt (77% lumen out power)

Firmware: Internal operating system updatable via DTS dongle firmware uploader
“Li-Fe” backup battery allowing the use of the on-board unit display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down

Power Supply

Electronic Wide-range 100/240 Vac 50-60 Hz
Power consumption: 800 W max
Power Factor: PF >0.90

Connections

Power supply: PowerCON TRUE1 In/Out panel connectors
DMX: XLR 3-pole and 5-pole In/Out panel connectors
Art-Net / sACN: etherCON RJ45 connector

Circuits Protections

Overvoltage and overtemperature circuit protection

Temperature

Operating: -10° / 45°C
Storage: -20° / 60°C

Physical

Weight: 34 Kg (75 lbs)
Finishing: Black
IP20

Test and Certification

Accessories Included

1x powerCON TRUE1 female cable connector (code 0520P066)
2 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

Accessories On Request

Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
Safety cable 5 x 600 mm – Max load 60 Kg (code 0521A038)
DTS firmware uploader dongle (code 03.LA.206)
