Optical

• Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
• Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy
• Color Temperature (at full): 2770 K
• CRI: 93.2
• TLCI: 91
• Beam Angle: 61.5°
• Field Angle: 100.5°
• Illuminance (total): 684 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Strobe Rate: 0 to 25 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)
• Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)
• Weight: 28.7 lb (13 kg)
• Weight (shipping weight): 33.1 lb (15 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast

Certifications / Qualifications

• CE, MET, FCC, ETL, cULus
• IP Rating: IP65, temporary outdoor/wet use
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, or 10

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V
• Power and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]
• Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]
• Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]
• Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]
• Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]
• Power and Current (resting): 8 W, .087 A @ 100 V, 60 Hz
• Power and Current (resting): 9 W, .083 A @ 120 V, 60 Hz
• Power and Current (resting): 17 W, .083 A @ 208 V, 60 Hz
• Power and Current (resting): 18 W, .082 A @ 230 V, 50 Hz
• Power and Current (resting): 21 W, .084 A @ 240 V, 50 Hz

What's Included

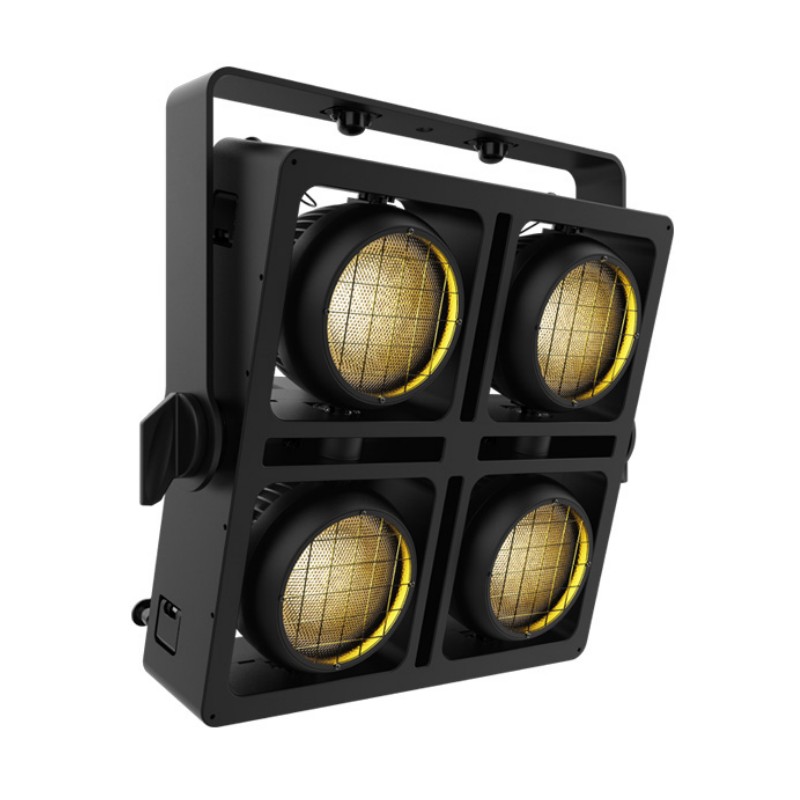

• STRIKE Array 4
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware
• Warranty Card
• Quick Reference Guide or User Manual

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin IP or Non-IP DMX Cables
• STRIKE Array Flush Bracket
