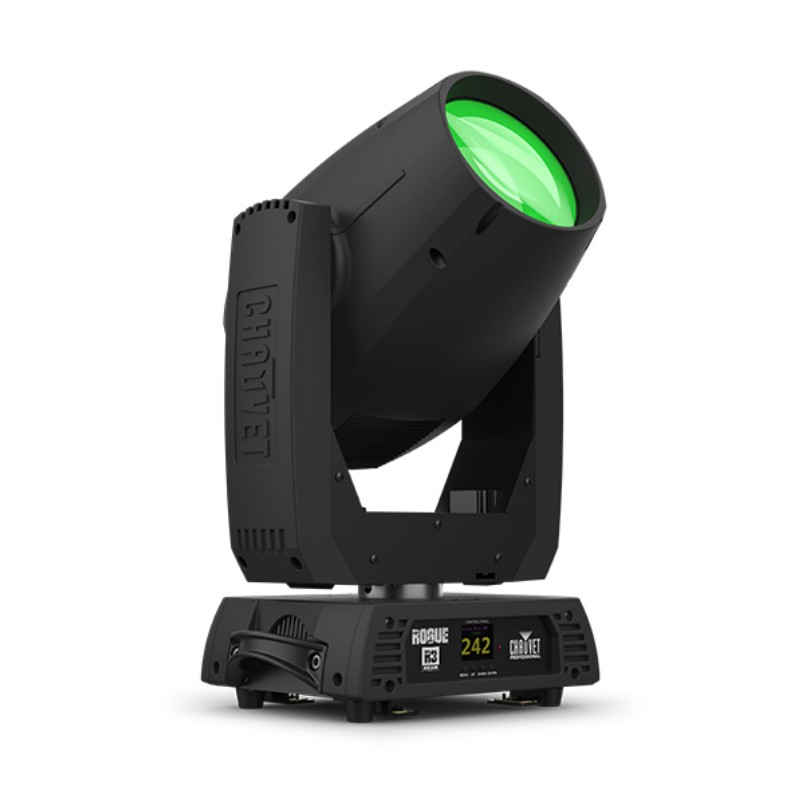

CHAUVET Professional Rogue R3 Beam

CHAUVET Professional Rogue R3 Beam Moving Head Beam 300W High Pressure Lamp Color Wheel IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 121655

Product code: CHAPR-ROGUER3BEAM

Downloads

Description

The Rogue R3 Beam is a powerful 300W moving head fixture that produces an intense, ultra-narrow 0.8° beam, featuring a 14-color wheel, a 17-gobo wheel, and dual overlapping 8 and 24-facet prisms for dynamic aerial effects.
Perfect for large-scale concerts, festivals, and productions requiring powerful, long-throw aerial beam effects that make a significant visual impact.
• Delivers an intense 208,000 lux at 15 meters from a 300W Ushio NSL lamp.
• Offers a tight 0.8° beam angle with motorized frost and focus for versatile beam shaping.
• Features individually controllable and stackable 8-facet and 24-facet prisms for complex aerial looks.
• Includes a 14-color wheel and 17-gobo wheel, both with variable-speed continuous scroll.
• Built for dynamic aerial effects with fast, precise 540° pan and 270° tilt movement.
• Supports DMX and RDM control for simplified setup and remote troubleshooting.

Based on your selection, you may be interested in the following items

CHAUVET Professional UPLOAD 08

Available

Call for pricing

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK Combo 5M

CHAUVET Professional RIGLINK Tr1 Dmx Combo Ip - 5M

Available 10 to 30 days

161,04 € 109,50 €

Details

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp.

This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options.

A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds.

Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks.

The unit is equipped with RDM and DMX protocols and features multiple control personalities

Optical

Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
Color Temperature (at full): 7657 K
CRI: 80.8
Front Lens Diameter: 153 mm
Beam Angle: 0.8°
Field Angle: 1.6°
Cutoff Angle: 2°
Lumens – Output: 30,878
Illuminance (total): 208,006 lux @ 15 m

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos : 17 + open (17 metal), continuous scroll at variable speeds
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 8 facets, motorized, rotating
Prism: 24 facets, motorized, rotating
Strobe Rate: 0 to 15 Hz
Move in Black: Yes

Construction / Physical

Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
Weight: 34.4 lb (15.6kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Certifications / Qualifications

CE, MET, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle): 41.6 dB(A) level @ 1 m
Noise Level (Auto): 37.9 dB(A) level @ 1 m
Noise Level (max): 38.4 dB(A) level @ 1 m

Control

Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)

Connections

Power Connection: Edison (Local) plug to Neutrik
Power Input: Neutrik powerCON
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz

Chauvet Professional Rogue R3 Beam included and Optional Accessories

What's Included

Rogue R3 Beam
Neutrik powerCON power cord
2 Omega brackets with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX cables
Flight Case: #CP2CASER2XR3SPOT
UPLOAD 08 software uploader

Information and Downloads
