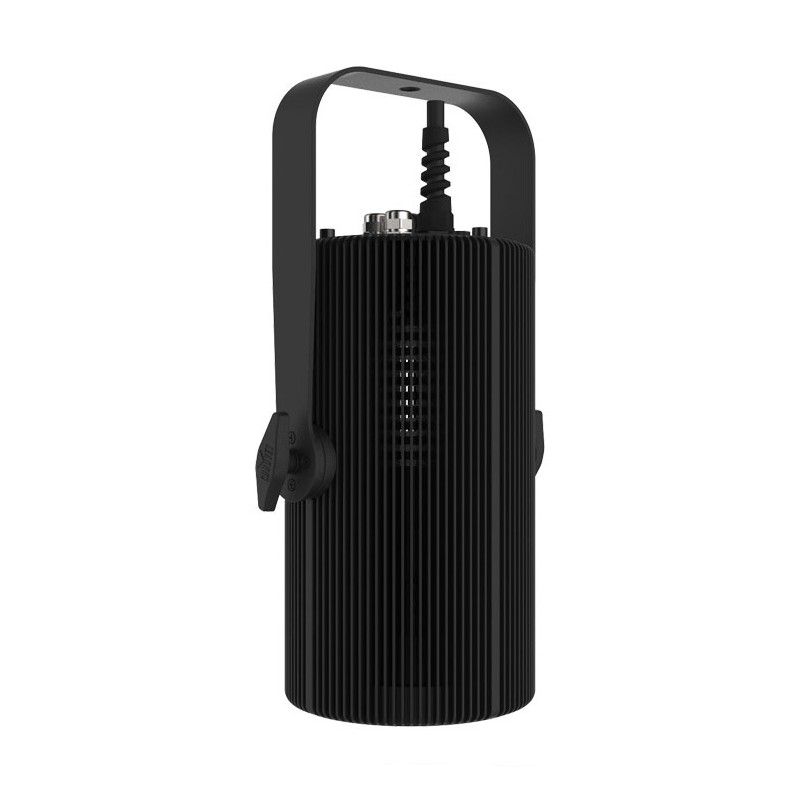

CHAUVET Professional Ovation H-605FC

CHAUVET Professional Ovation H-605FC House Light Wash LED RGBAL IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 118391

Product code: CHAPR-OVATIONH605FCBLK

Downloads

Description

The Ovation H-605FC is a convection-cooled, full-color house light that utilizes an RGBA-Lime LED system to deliver a massive color spectrum and a wide range of adjustable white temperatures with advanced control features.
Perfectly suited for theatrical and house of worship applications, its silent operation and superior color rendering provide high-quality illumination without distraction.
• Offers interchangeable lens plates to easily adapt beam angles for various mounting heights.
• Achieves exceptionally smooth fades and precise intensity control with 16-bit dimming.
• Supports advanced control protocols including DMX, WDMX, and RDM for programming flexibility.
• Features versatile DMX integration with both 5-pin XLR and terminal block connections.
• Includes a virtual color wheel with presets matched to popular gel colors.
• Ensures flicker-free performance on camera with adjustable Pulse Width Modulation (PWM).

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

CHAUVET Professional RDM2GO

CHAUVET Professional RDM2GO Configuration And Testing Tool

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK DMX 20M

CHAUVET Professional RIGLINK 5-Pin Dmx - 20M

Available 10 to 30 days

109,18 € 74,24 €

Details

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white.

Superior convection cooling provides excellent output in a compact package.

Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display.

White housing not available in European Markets.

Optical

Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
Color Temperature (at full): 5714 K
CRI (5600 K): 87
Beam Angle (w/80° filter): 48°
Beam Angle (w/65° lens): 68°
Beam Angle (w/45° lens): 36°
Beam Angle (w/25° lens): 26°
Field Angle (w/80° filter): 135°
Field Angle (w/65° lens): 97°
Field Angle (w/45° lens): 82°
Field Angle (w/25° lens): 47°
Dimming Modes: 4
Illuminance (w/80° filter): 147 lux @ 5 m
Illuminance (w/65° lens): 178 lux @ 5 m
Illuminance (w/45° lens): 353 lux @ 5 m
Illuminance (w/25° lens): 652 lux @ 5 m
Lumens (w/80° filter): 4,409
Lumens (w/65° lens): 5,288
Lumens (w/45° lens): 5,446
Lumens (w/25° lens): 5,121
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
Weight: 19.6 lb (8.9 kg)
Exterior Color: Black

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP20, dry location

Control

Control Protocol:, DMX, RDM, W-DMX™
DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Connections

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 145 W, 1.43 A @ 100 V, 60 Hz
Power and Current: 142 W, 1.19 A @ 120 V, 60 Hz
Power and Current: 146 W, 0.704 A @ 208 V, 60 Hz
Power and Current: 145 W, 0.627 A @ 230 V, 50 Hz
Power and Current: 145 W, 0.605 A @ 240 V, 60 Hz
