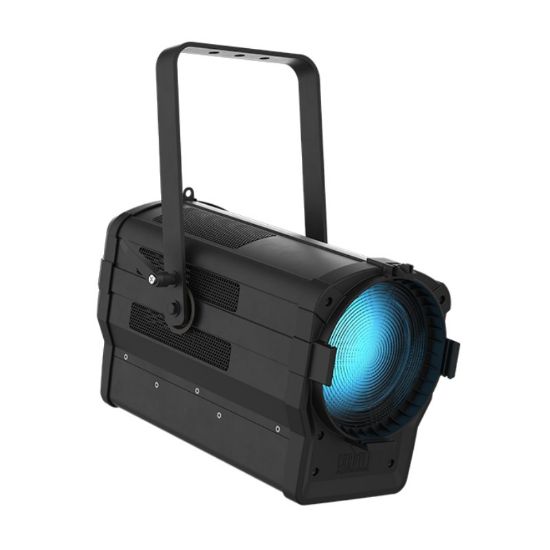

CHAUVET Professional Ovation F-915FC

CHAUVET Professional Ovation F-915FC Fresnel Fixture Wash 89 x 3W LED RGBAL IP20 - Black

Call for pricing

Available

Product code (SKU): 118352

Product code: CHAPR-OVATIONF915FC

Downloads

Description

A high-power, full-color Fresnel fixture utilizing an RGBAL LED system to project a bright, soft field of light with a versatile motorized zoom.
Suited for theatrical stages, broadcast studios, and event spaces that demand a high-quality, soft-edged wash with full-color mixing and precise zoom control.
• Features an advanced RGBAL LED system for a full spectrum of vibrant colors and whites.
• Delivers a versatile motorized zoom range, adjustable from a tight 17° to a wide 85° wash.
• Includes a virtual color wheel and variable CCT presets from 2800 K to 6500 K.
• Ensures smooth fades with 16-bit dimming and flicker-free output via adjustable PWM.
• Built for sound-sensitive environments with a virtually silent convection cooling system.
• Offers flexible control via DMX and RDM, plus onboard dials for manual adjustments.

Based on your selection, you may be interested in the following items

CHAUVET Professional DF60X1D

Available 10 to 30 days

Call for pricing

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK DMX 20M

CHAUVET Professional RIGLINK 5-Pin Dmx - 20M

Available 10 to 30 days

109,18 € 74,24 €

CHAUVET Professional Ovation 7.5" Barndoor – IP

CHAUVET Professional Ovation 7.5" Barndoor – IP fits Ovation F165/265/915 IP

Available 10 to 30 days

Call for pricing

Details

Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system.

This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white.

A motorized zoom with a 17° – 85° field range allows you to add light where it is needed.

Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.

Optical

Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 90
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,294
Lumens (73°): 6,661
Illuminance (30°): 1,980 lux @ 5 m
Illuminance (85°): 433 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 17.80 x 12.59 x 10.82 in (452 x 320 x 275 mm)
Weight: 19 lb (8.6kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

Certifications / Qualifications

CE, MET, FCCIP Rating: IP20, dry location
Noise Level (Idle): 0.4 dB(A) @ 1 m
Noise Level (Auto): 16.8 dB(A) @ 1 m
Noise Level (On): 30.2 dB(A) @ 1 m
Noise Level (Off): 11.6 dB(A) @ 1 m
Noise Level (silent): 18.8 dB(A) @ 1 m

Control

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
Power and Current: 304 W, 2.576 A @ 120 V, 60 Hz
Power and Current: 293 W, 1.490 A @ 208 V, 60 Hz
Power and Current: 293 W, 1.358 A @ 230 V, 50 Hz

Chauvet Professional Ovation F-915FC included and Optional Accessories

What's Included

Ovation F-915FC
Neutrik® powerCON® power cord
Gel frame (7.5 in/191 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
Ovation Pole Operated Yoke 2 – 8”

Information and Downloads

Manual
