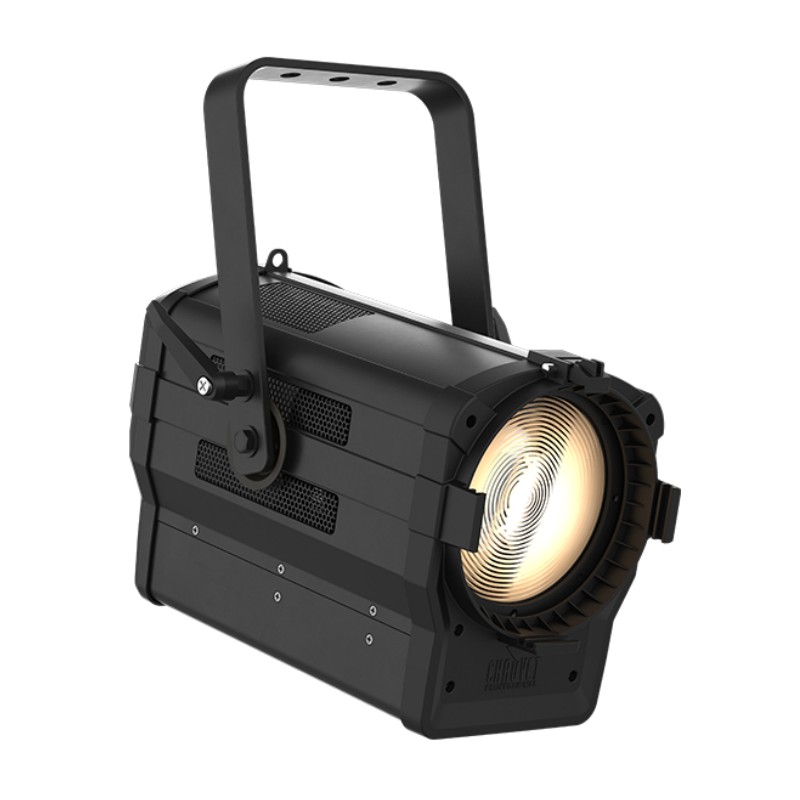

CHAUVET Professional Ovation F-415VW

CHAUVET Professional Ovation F-415VW Fresnel Fixture Wash LED Variable White IP20 - Black

Call for pricing

Available

Product code (SKU): 118349

Product code: CHAPR-OVATIONF415VW

Downloads

Description

A 6-inch Fresnel-style fixture that leverages a unique 6-color LED system to project a bright, soft, variable white field of light with high CRI, motorized zoom, and precise +/- green adjustment.
Perfectly suited for theatre and television studio applications, its high-quality color rendering, flicker-free operation, and battery power option provide ultimate versatility.
• Features a smooth, motorized zoom with a versatile field range from 14° to 68°.
• Delivers an expansive color temperature range from 2800 K to 8000 K.
• Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
• Supports 28 VDC external battery power via 3-pin XLR for mobile applications.
• Provides virtually silent operation, ideal for noise-sensitive studio and theatre environments.
• Offers independent 6-color engine control for vibrant color accents when needed.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

CHAUVET Professional DF60X1D

Available 10 to 30 days

Call for pricing

- 32 %

CHAUVET Professional RIGLINK DMX 10M

CHAUVET Professional RIGLINK 5-Pin Dmx - 10M

Available 10 to 30 days

65,51 € 44,54 €

CHAUVET Professional Ovation 6.25" Barndoor – IP

CHAUVET Professional Ovation 6.25" Barndoor – IP fits Ovation F145/415 IP

Available 10 to 30 days

Call for pricing

Αναλυτικά

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system.

The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios.

Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed.

The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials.

Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.

Optical

Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 89 to 93
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Range: 14° to 68°
Lumens (27°) : 1,631 (68°) : 2,408
Illuminance (27°) : 800 lux @ 5 m (68°): 152 lux @ 5 m
Illuminance drop percentage (fan silent) : 23% (fan off) : 59%
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No

Construction / Physical

Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight: 12.79 lb (5.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle): 3.1 dB(A) @ 1 m
Noise Level (Auto): 17.0 dB(A) @ 1 m
Noise Level (On): 28.3 dB(A) @ 1 m
Noise Level (Off): 4.4 dB(A) @ 1 m
Noise Level (silent): 20.9 dB(A) @ 1 m

Control

Control Protocol: DMX, RDM
DMX Channels: 2, 5, 7, 10, 14, 17 or 19
Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Connection: 3-pin XLR
Power Input: 28 VDC, 3-pin XLR
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Input Voltage: 28 VDC
Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
Power and Current: 125 W, 1.054 A @ 120 V, 60 Hz
Power and Current: 122 W, 0.613 A @ 208 V, 60 Hz
Power and Current: 121 W, 0.569 A @ 230 V, 50 Hz

Chauvet Professional Ovation F-415FC and F-415VW included and Optional Accessories

What's Included

Ovation F-415VW
Seetronic Powerkon IP65 power cord
Gel frame holder (6.25 in/158.75 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon IP65 cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 6.25″ Barndoor V1
