CHAUVET Professional Ovation F-415FC

CHAUVET Professional Ovation F-415FC Fresnel Fixture Wash LED RGBAL IP20 - Black

Call for pricing

Available

Product code (SKU): 118348

Product code: CHAPR-OVATIONF415FC

Downloads

Description

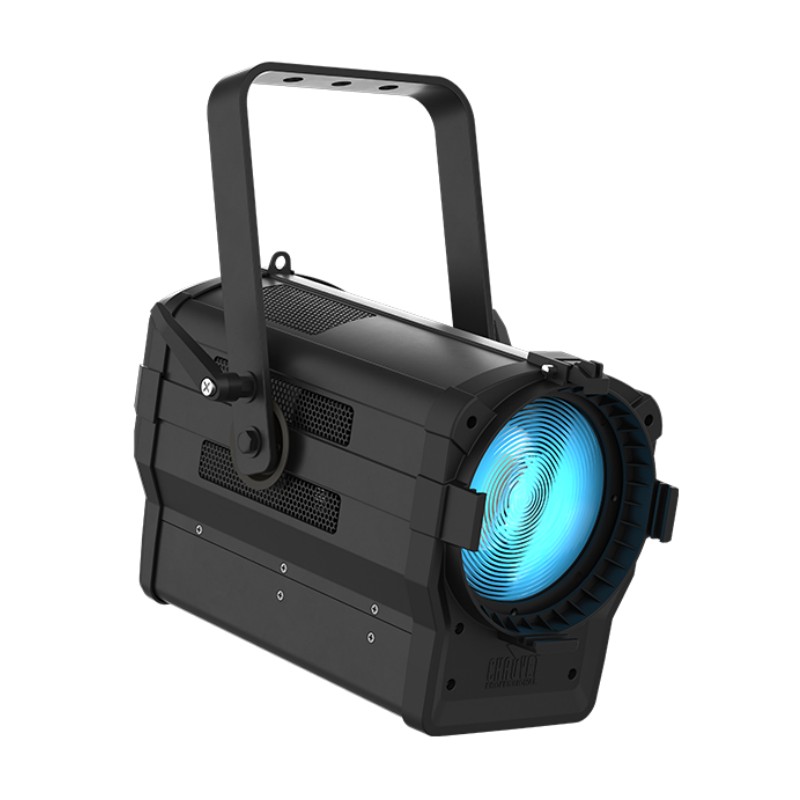

The Ovation F-415FC is a 6-inch Fresnel style fixture featuring an advanced RGBAL LED system and a motorized zoom to project a bright, soft, and beautifully colored field of light.
Ideal for theatrical, broadcast, and film applications where high-quality, flicker-free, and adaptable soft lighting is required.
• Advanced RGBAL LED system produces a full color spectrum and whites from 2800K to 6500K.
• Provides a versatile motorized zoom with a wide 14° to 68° field angle for flexible coverage.
• Features 16-bit dimming for smooth fades and adjustable PWM for flicker-free camera operation.
• A fanless cooling system ensures completely silent operation ideal for studios and theatres.
• Offers flexible control options with onboard dials, DMX, and RDM for simplified fixture management.
• Includes a virtual color wheel and CCT presets for quick access to popular colors and whites.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

CHAUVET Professional DF60X1D

Available 10 to 30 days

Call for pricing

- 32 %

CHAUVET Professional RIGLINK Combo 5M

CHAUVET Professional RIGLINK Tr1 Dmx Combo Ip - 5M

Available 10 to 30 days

161,04 € 109,50 €

CHAUVET Professional Ovation 6.25" Barndoor – IP

CHAUVET Professional Ovation 6.25" Barndoor – IP fits Ovation F145/415 IP

Available 10 to 30 days

Call for pricing

Αναλυτικά

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system.

The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white.

A motorized zoom with a 14° – 68° field range allows you to add light where it is needed.

Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.

It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

Optical

Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 91
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Range: 14° to 68°
Lumens (27°): 1,877 (68°): 2,815
Illuminance (27°): 915 lux @ 5 m (68°): 190 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight: 12 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz
Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz
Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz

Chauvet Professional Ovation F-415FC included and Optional Accessories

What's Included

Ovation F-415FC
Seetronic Powerkon IP65 power cord
Gel frame (6.25 in / 158.75 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extension cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F6.25” Barndoor
