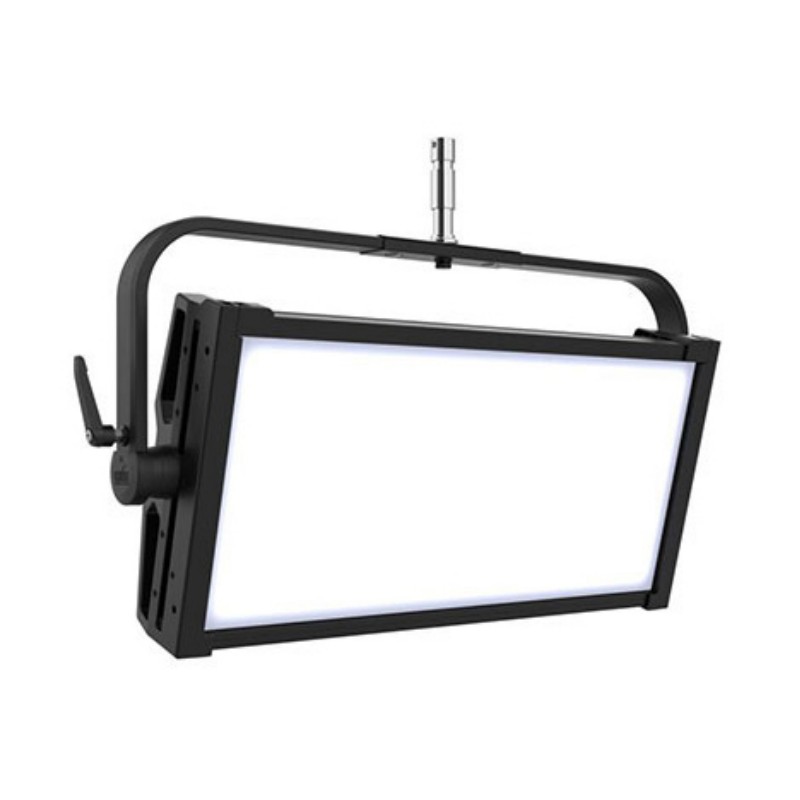

CHAUVET Professional onAir Panel 2 IP

CHAUVET Professional onAir Panel 2 IP Panel Fixture Soft Light / Wash LED RGBWW IP65 - Black

Call for pricing

Available

Product code (SKU): 123039

Product code: CHAPR-ONAIRPANEL2IP

Downloads

Description

A rugged, IP65-rated 1?2 full-spectrum LED soft light panel delivering superior quality white light, full color capabilities, and a comprehensive suite of control and power options.
Ideal for on-location broadcast, film, and event production where high-quality, all-weather, and flexible lighting is critical.
• Produces high-quality white light across a 2800 K to 8000 K CCT range with a CRI of 95.
• Features precise color control with plus/minus green adjustment and emulated red-shift.
• Ensures flicker-free, silent operation ideal for noise-sensitive broadcast and studio environments.
• Built with an IP65-rated housing for dependable performance in any weather condition.
• Supports DMX, Art-Net, sACN, CRMX, and RDM for versatile control integration.
• Runs on standard AC power or an external 28 VDC battery pack for location flexibility.

Based on your selection, you may be interested in the following items

CHAUVET Professional onAir Panel 2 IP Heavy Diffusion Filter

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP Intensifier

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP Light Diffusion Filter

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP Medium Diffusion Filter

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP Pole Yoke

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Producer Remote Control

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Flex Drive 2

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP Studio Barndoor

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP 30° Honeycomb

Available 10 to 30 days

Call for pricing

CHAUVET Professional onAir Panel 2 IP 60° Honeycomb

Available 10 to 30 days

Call for pricing

Details

onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in.

Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu.

Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories.

PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use.

An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Optical

Light Source: 448 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
Light Source: 448 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy. Color Temperature (range): 2800 to 8000 K
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 7220 K
CRI: 95
Beam Angle: 100.2°
Field Angle: 157°
Lumens: 22,508
Illuminance: 349 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 849 x 139 x 553 mm
Weight: 17,1 kg
Exterior Color: Black
Housing Material: Aluminum alloy

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Noise Levels:

Auto: 7.8 dB(A) @ 1 m

On: 20.3 dB(A) @ 1 m

Off: 6.1 dB(A) @ 1 m

Silent: 15.9 dB(A) level @ 1 m

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Protocol(s): Art-Net, sACN, DMX, CRMX, RDM
DMX Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Art-Net/sACN Channels: 1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32
Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23, 32)

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Input: 28 VDC, 3-pin IP65 XLR
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible Cable Length (power): 5 ft (1.5 m)
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 100 V; 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V, 8 units @ 240 V
Power and Current: 372 W, 3.104 A @ 120 V, 60 Hz
Power and Current: 371 W, 1.774 A @ 208 V, 60 Hz
Power and Current: 370 W, 1.608 A @ 230 V, 50 Hz

Chauvet Professional onAir Panel 2 IP included and Optional Accessories

What's Included

onAir Panel 2 IP
Seetronic Powerkon IP65
Omega brackets with mounting hardware
onAir Panel 2 IP Medium Diffusion Filter
TV Junior Spigot

Optional Accessories

onAir Panel 2 IP Barndoor
onAir Panel 2 IP 60° Honeycomb
onAir Panel 2 IP Diffusion Filter Pack
onAir Panel 2 IP Light Diffusion Filter
onAir Panel 2 IP Medium Diffusion Filter
onAir Panel 2 IP Heavy Diffusion Filter
onAir Panel 2 IP Intensifier
onAir Panel 2 IP Pole Yoke
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin DMX Cables
Ethernet Cables
