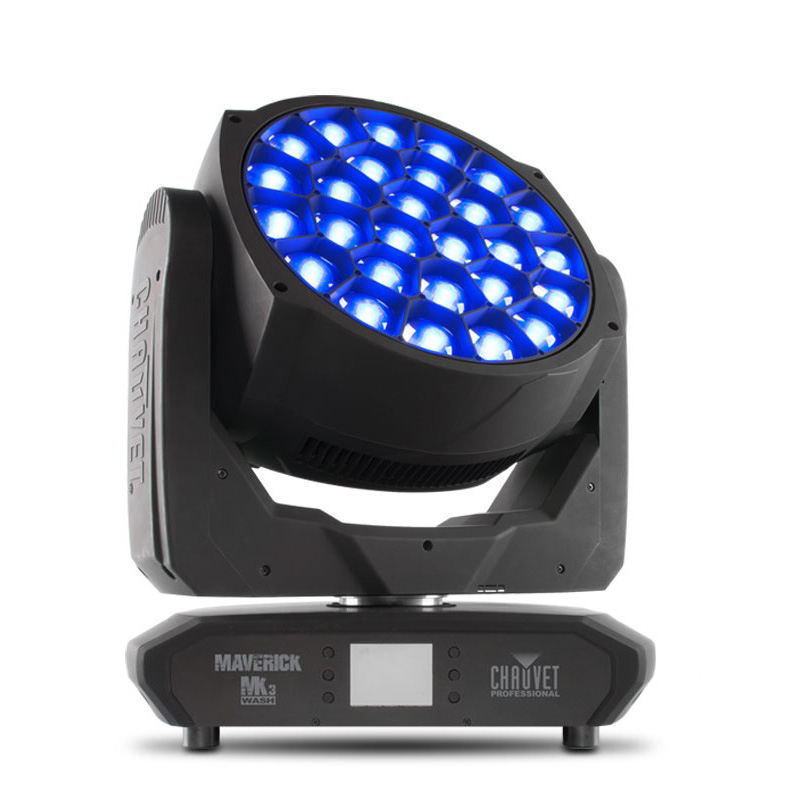

CHAUVET Professional Maverick MK3 Wash

CHAUVET Professional Maverick MK3 Wash Moving Head Wash 27 x 40W LED RGBW IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 118338

Product code: CHAPR-Maverick MK3 Wash

Downloads

Description

Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
Built in virtual gobo wheel with background colors for impressive atmospheric effects
Precise movement of pan, tilt, and zoom
Quiet operation for a wide range of installation situations
DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
RDM Enabled for remote addressing and trouble shooting
5.2° - 65.1° Zoom range for variable beam sizes
True 1 compatible power input
Battery backup touchscreen display with auto rotate depending on fixture orientation

Based on your selection, you may be interested in the following items

- 32 %

Chauvet Professional CTC-50G

CHAUVET PROFESSIONAL CTC-50G GRIPPER CLAMP (50MM)

Available

38,22 € 25,99 €

- 32 %

Chauvet Professional RIGLINKCOMBO3M

Chauvet Professional RIGLINKCOMBO3M Riglink Tr1 Dmx Combo Ip - 3M

Available 10 to 30 days

125,56 € 85,39 €

CHAUVET Professional UPLOAD 08

Available

Call for pricing

Αναλυτικά

Maverick MK3 Wash raises the bar on output, color consistency, and pixel effects.

Powered by 27 (40 W) Osram RGBW LEDs, it has the muscle to handle any application, including long throw situations with ease.

Pixel mapping effects, built in color macros and gobos, along with a CTO color mixing option make this powerhouse fixture the complete wash package.

Control options include DMX, sACN, Art-Net, Kling-Net, W-DMX or RDM.

Optical

Light Source: 27 LEDs (quad-color RGBW) 40 W, (2.6A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 5° to 36°
Field Angle: 7.4° to 52.8°
Cutoff Angle: 8.6° to 65.1°
Zoom Range: 5.2° to 65.1°
Lumens - Source: 18,000
Lumens - Output: 13,300
Illuminance (7.4°): 60,090 lux @ 5 m
Illuminance (45°): 2,040 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical

Dimensions: 18.7 x 11.49 x 22.93in 459 x 292 x583 mm)
Weight: 68.2 lb (31 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Control Protocol: Art-Net, Kling-Net, sACN, DMX, W-DMX, RDM
DMX Channels Single Mode: 20, 129, 243 or 297
DMX Channels Dual Mode – Function: 9,21,27
DMX Channels Dual Mode – Pixel: 81,108,216
Art-Net Channels Single Mode: 21, 129, 243 or 297
Art-Net Channels Dual Mode – Function: 9,21,27
Art-Net Channels Dual Mode – Pixel: 81,108,216

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 1,120 W, 9.54 A @ 120 V, 60 Hz
Power and Current: 1,090 W, 5.35 A @ 208 V, 60 Hz
Power and Current: 1,120 W, 4.79 A @ 230 V, 50 Hz

Chauvet Professional MAVERICK MK3 Wash included and Optional Accessories
