CHAUVET Professional EPIX Flex 20

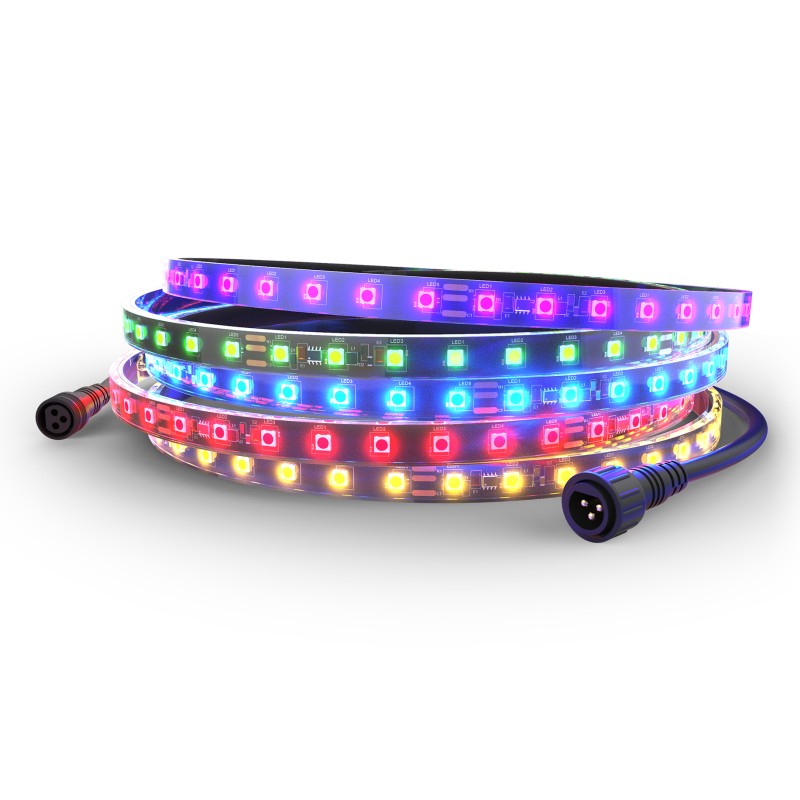

CHAUVET Professional EPIX Flex 20 LED Strip Pixel LED RGB IP67 - Transparent
Available 10 to 30 days
Product code (SKU): 120594
Product code: CHAPR-EPIXFLEX20

Description

The EPIX Flex 20 is a durable, 5-meter, IP67-rated flexible LED strip featuring 240 individually controllable, pixel-mappable RGB LEDs for creating dynamic color and video effects.
Perfect for outlining complex structures and creating immersive visual designs in permanent outdoor architectural applications, nightclubs, and other entertainment venues.
• Can be cut to custom lengths for a perfect fit in complex installations.
• Provides versatile control options with support for DMX, Art-Net, and sACN protocols.
• Offers multiple control personalities for simplified programming or direct video server integration.
• Features a wide 160° viewing angle, ensuring maximum visibility for broad audiences.
• Allows for long data runs up to 75 ft from the required EPIX Flex Drive.
• Features a 20 mm pixel pitch for creating clear motion graphics and video effects.


Details


ÉPIX Flex 20 is a durable, outdoor-rated LED flexible strip that extends 5 meters and can be cut and prolonged without compromising its IP67 rating.

This allows it to line even the most complicated spaces.

240 individually controllable RGB LEDs allow for a variety of color-changing options that can be dimmed and brightened as you see fit, and pixel-mapped for showing video and/or motion graphics.

The unit’s reliable plug-and-play 24 V system allows for 75ft of extension between the first ÉPIX Flex 20 and the ÉPIX Flex Drive, which is required for operation and controls up to eight ÉPIX Flex 20 strips.

Expect versatile control options including DMX, Art- Net and sACN (streaming ACN) and reduced programming time by tapping into alternate personalities of 17 channel or the pixel personality 720 channels) for use with video servers.

10 mounting brackets are included to ease use in a variety of permanent installations like nightclub or architectural entertainment venues.

Chauvet Professional ÉPIX Flex 20 optical Construction / Physical Connections

Optical

  • Light Source: 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy
  • Lumens: 140 lm/ft
  • Viewing Angle: 160°
  • Pixels: 240 x 1
  • Pixel Pitch: 20 mm

Construction / Physical

  • Dimensions: 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm)
  • Weight: 1.2 lb (0.6 kg)
  • Exterior Color: Clear
  • Housing Material: high temperature silicone with UV protection

Connections

  • Data Connectors: 3-pin IP65 FLEX cable
  • Physical Linking: 2 ÉPIX Flex 20 (per output) (4 total) (without ÉPIX Flex Boost); 2 additional ÉPIX Flex 20 with ÉPIX Flex Boost (per output) (8 total)
Chauvet Professional ÉPIX Flex 20 Control electrical certifications

Control

  • Control Protocol: Art-Net, sACN, DMX
  • DMX Channels: 17, 34 or PIXEL
  • Art-Net Channels: 17, 34 or PIXEL

Electrical

  • Power and Current: 79 W, 0.653 A @ 120 V, 60 Hz
  • Power and Current: 93 W, 0.450 A @ 208 V, 60 Hz
  • Power and Current: 95 W, 0.417 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP67, temporary outdoor/wet use
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Chauvet Professional ÉPIX Flex 20 Electrical

What's Included

  • ÉPIX Flex 20
  • Installation kit with 10 bracket sets
  • Termination kit with end cap and silicone glue

Optional Accessories

  • ArKaos Media Master Express + KN software
  • IPFLEXEXT5FT
  • IPFLEXEXT15FT
  • IPFLEXEXT25FT
  • IPFLEXEXT50FT

Required Accessories

  • Controller (required): ÉPIX Flex Drive
