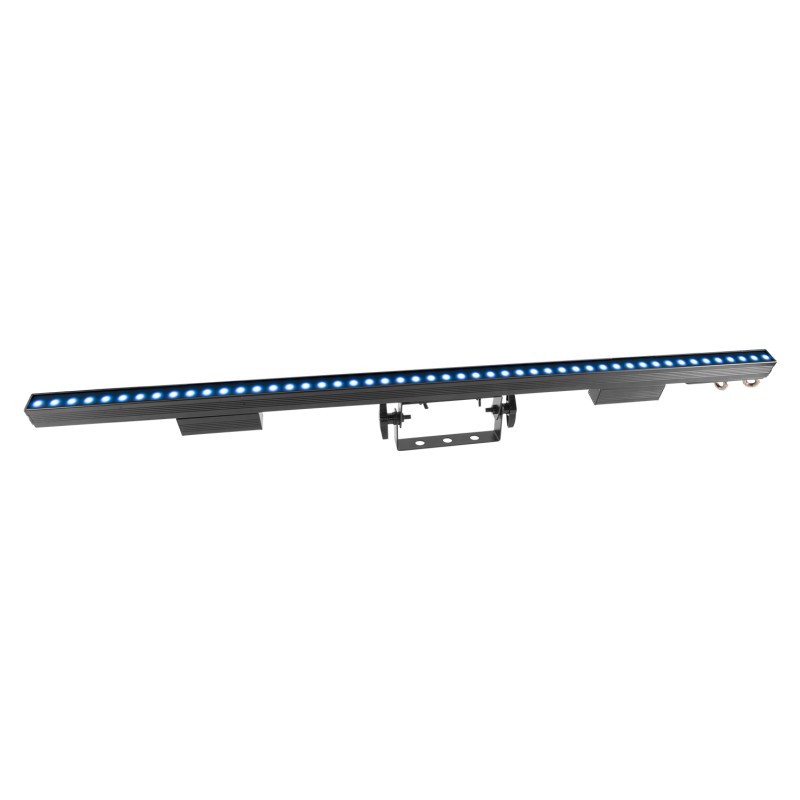

CHAUVET Professional EPIX Strip Tour

CHAUVET Professional EPIX Strip Tour Lighting Bar Pixel LED RGB IP20 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 118328

Product code: CHAPR-EPIXSTRIPTOUR

Downloads

Description

A one-meter, pixel-mapping LED strip featuring fifty LEDs in a row and a wide 125-degree viewing angle for creating dynamic visual effects with Art-Net, Kling-Net, or sACN control.

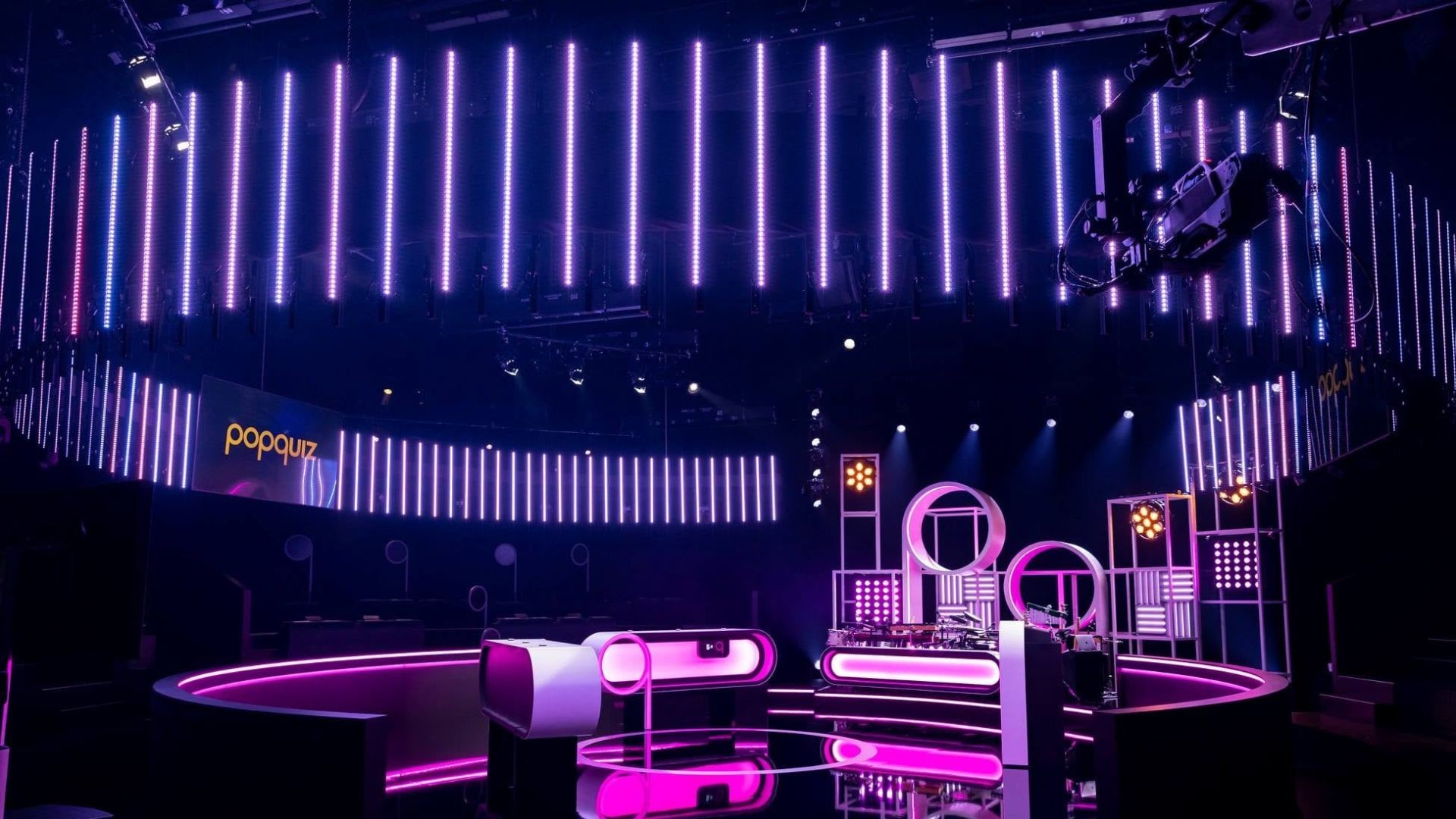

Ideal for outlining stages, creating video displays, and adding graphic elements to touring productions, broadcast sets, or nightclub installations.
• Features 50 individually-mappable, tri-color RGB SMD LEDs for vibrant motion graphics.
• Includes both a high-contrast black stealth filter and a high-output white frosted filter.
• A 20 mm pixel pitch ensures high-definition looks for close and distant viewing.
• Integrates easily into professional setups using Art-Net, Kling-Net, and sACN.
• Requires the EPIX Drive 900 for centralized power and data distribution.
• Delivers up to 1,094 NITS of brightness with the included white frosted filter.

Based on your selection, you may be interested in the following items

- 32 %

CHAUVET Professional RIGLINK XLR4 3M

CHAUVET Professional RIGLINK 4-Pin Xlr Ip - 3M

Available 10 to 30 days

60,05 € 40,83 €

CHAUVET Professional EPIX Drive 2000 IP

CHAUVET Professional EPIX Drive 2000 IP Controller

Available 10 to 30 days

Call for pricing

Details

ÉPIX Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125º viewing angle.

Power and control it through the ÉPIX Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).

Optical

Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125°
Illuminance - white frost filter (included): 1,094 NITS
Illuminance - black stealth filter (installed): 267 NITS
Pixels: 50 x 1
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz

Construction / Physical

Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
Weight: 3.44 lb (1.56 kg)
Exterior Color: Black
Housing Material: Aluminum

Connections

Data Connectors: 4-pin XLR
Physical Linking: 18 inline ÉPIX Strip Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 150

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Electrical

Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz

Cable

4PXLREXT16IN
4PXLREXT5FT
4PXLREXT50FT

Chauvet Professional ÉPIX Strip Tour included and Optional Accessories
