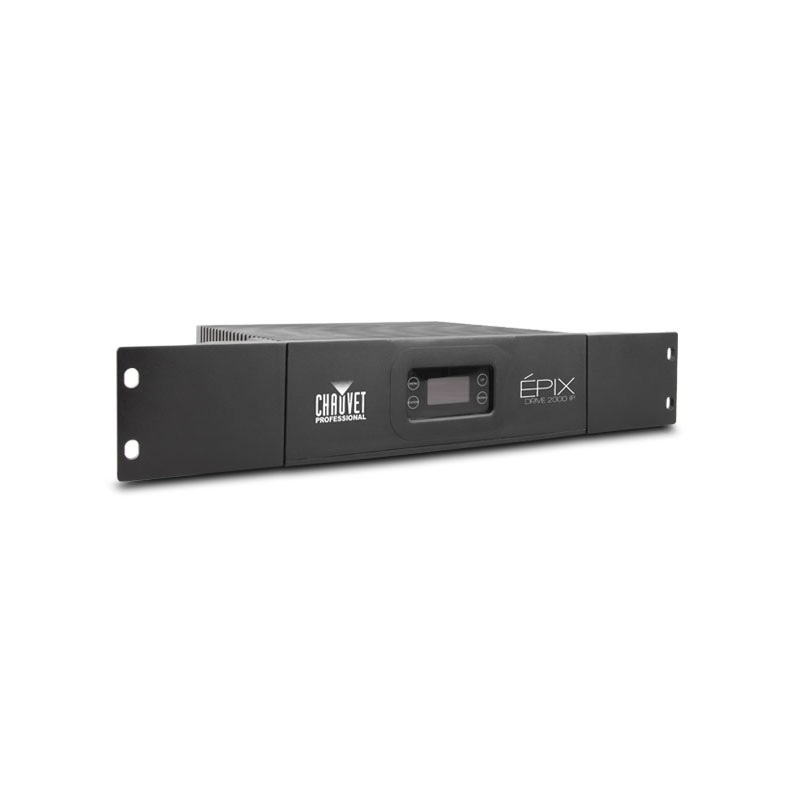

CHAUVET Professional EPIX Drive 2000 IP

CHAUVET Professional EPIX Drive 2000 IP Controller

Call for pricing

Available 10 to 30 days

Product code (SKU): 118324

Product code: CHAPR-EPIXDRIVE2000IP

Downloads

Description

The EPIX Drive 2000 IP is an IP65-rated processor and power supply that drives up to 2000 LEDs for the EPIX IP and Tour system, offering versatile control via Art-Net, Kling-Net, and sACN, and remote management through an integrated web server.
Perfect for large-scale outdoor tours, festivals, and architectural installations requiring a robust, weather-proof, and versatile control solution for pixel-mapping video displays.
• Delivers 20 total Art-Net/sACN universes for intricate, high-resolution pixel mapping.
• Powers extensive fixture arrays, including up to 20 EPIX Strip IPs or 36 EPIX Strip Tours.
• Features an onboard OLED touchscreen and automatic fixture detection for simplified setup.
• Allows remote system management and diagnostics through a built-in web server.
• Enables flexible placement up to 150 feet away from the first connected fixture.
• Integrates seamlessly with Arkaos Media Master Express via Kling-Net for plug-and-play operation.

Based on your selection, you may be interested in the following items

CHAUVET Professional EPIX Strip IP

CHAUVET Professional EPIX Strip IP Lighting Bar Pixel LED RGB IP65 - Black

Available 10 to 30 days

Call for pricing

CHAUVET Professional EPIX Strip Tour

CHAUVET Professional EPIX Strip Tour Lighting Bar Pixel LED RGB IP20 - Black

Available 10 to 30 days

Call for pricing

- 32 %

CHAUVET Professional RIGLINK XLR4 5M

CHAUVET Professional RIGLINK 4-Pin Xlr Ip - 5M

Available 10 to 30 days

81,89 € 55,69 €

Details

ÉPIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the ÉPIX IP and Tour system.

With a maximum capacity of 2000 LEDs, ÉPIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options.

Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX fixtures.

Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.

Construction / Physical

Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
Weight: 12 lb (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum Rackmount: 2U

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4-pin XLR): 2
Physical Linking (port A): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
Physical Linking (port B): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
Data Connectors: Seetronic Etherkon IP65 Cable Length (power): 5 ft (1.5 m)
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 210 ft (64 m) Max. cable length (shielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour or IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 300 ft (91 m) Max. cable length (unshielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour or IP fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, or 150

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
Output Voltage: 48 VDC
Maximum Load: 10 ÉPIX Strip IP or 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)

Certifications / Qualifications

CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E113093-1101
US Safety: UL 8750, UL 1573
Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166

Chauvet Professional ÉPIX Strip IP included and Optional Accessories

What's Included

ÉPIX Drive 2000 IP
Seetronic Powerkon IP65 power cord

Optional Accessories

ArKaos Media Master Express + KN software
Epix Strip Tour
Epix Strip IP
4PINIPEXT16IN
4PINIPEXT5FT
4PINIPEXT50FT
Seetronic Powerkon IP65 cables
Seetronic Etherkon IP65 cables
