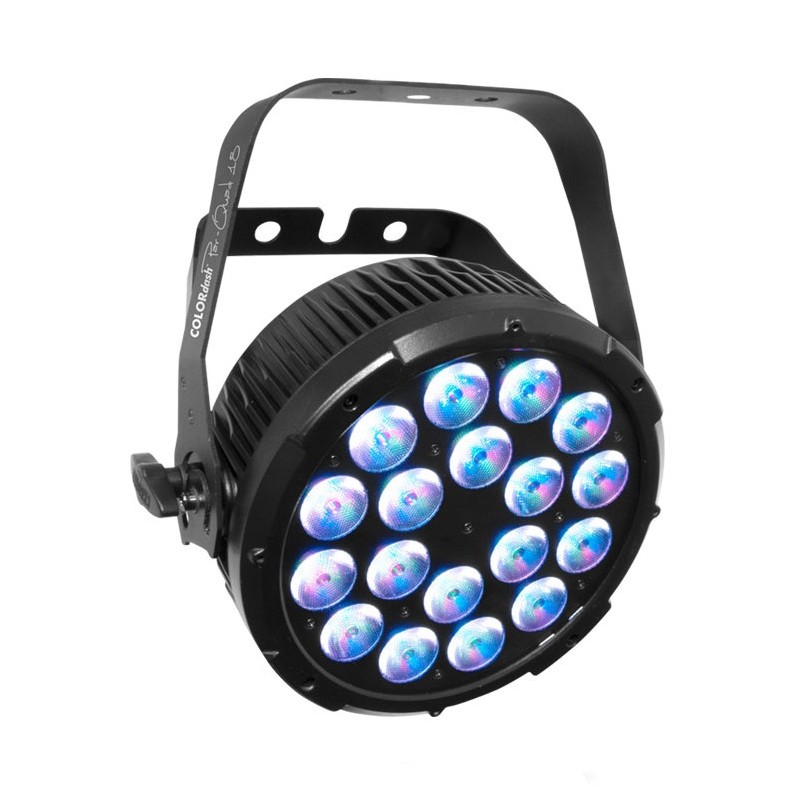

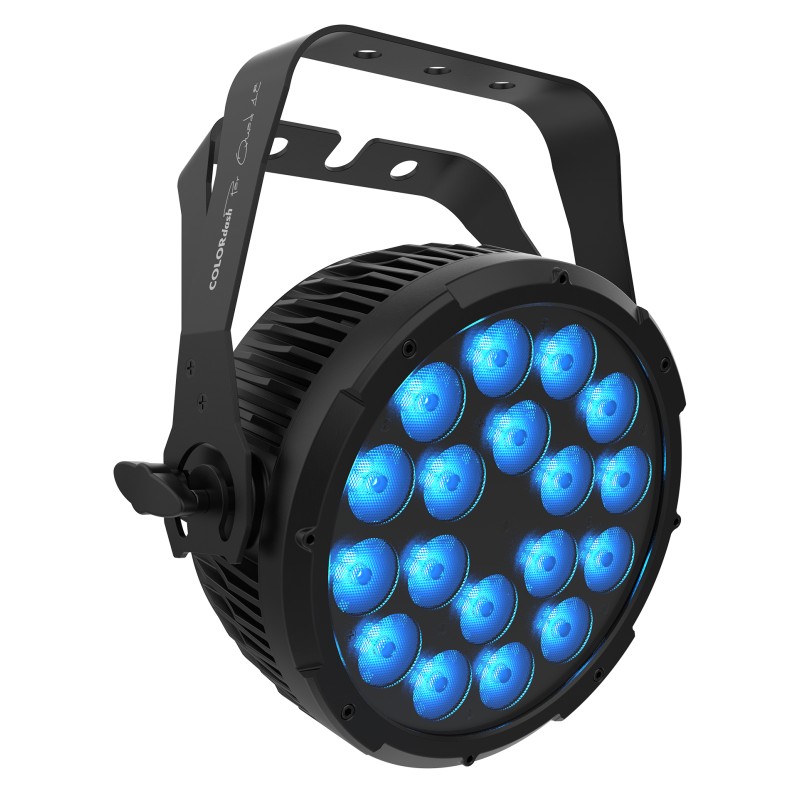

CHAUVET Professional COLORdash Par-Quad 18

CHAUVET Professional COLORdash Par-Quad 18 Static Fixture Wash 18 x 7W LED RGBA IP20 - Black

Call for pricing

Available

Product code (SKU): 118278

Product code: CHAPR-COLORDASHPARQUAD18

Downloads

Description

A compact and durable PAR-style wash light powered by 18 quad-color RGBA LEDs, designed to produce a broad spectrum of saturated colors and whites without multi-colored shadows.
Perfect for theatrical productions, mobile entertainers, and architectural applications where a versatile and easy-to-deploy color wash with simplified power and data connections is needed.
• Achieves a wide color spectrum and variable whites from 18 powerful 7W quad-color RGBA LEDs.
• Delivers a smooth, even wash with an 18° beam angle and 32.5° field angle.
• Built for broadcast and theatrical use with completely silent and flicker-free operation.
• Offers flexible programming with selectable 4, 6, or 10-channel DMX control modes.
• Features locking powerCON connectors for linking up to 25 units, plus 3- and 5-pin DMX.
• Housed in a durable metal chassis with a split-yoke bracket for flexible mounting or floor use.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK DMX 5M

CHAUVET Professional RIGLINK 5-Pin Dmx - 5M

Available 10 to 30 days

43,67 € 29,70 €

Details

COLORdash Par-Quad 18 is powered by 18 quad-colored RGBA LEDs in a compact and durable housing.

Amber LEDs help produce any variation of white and stunning saturated colors for an expansive palette devoid of multi-colored shadows.

A split-yoke bracket eliminates the need for floor stands.

Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors simplify connections and setup.

COLORdash Par-Quad 18 also includes a gel frame holder and gel frame.

Optical

Light Source: 18 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Installed Optics: 20°
Beam Angle: 18°
Field Angle: 32.5°
Illuminance: 1,210 lux @ 5 m PWM Frequency: 600 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 12.7 x 11.7 x 4.1 in (323 x 298 x 106) mm
Weight: 10.2 lb (4.6 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 9.25 in/235 mm accessories

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location

Control

Control Protocol: DMX
DMX Channels: 4, 6 or 10
Modes/Personalities: 3 personalities (4CH, 6CH, 10CH)

Connections

Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V, 25 units @ 240 V
Power and Current: 118 W, 1.00 A @ 120 V, 60 Hz
Power and Current: 116 W, 0.59 A @ 208 V, 60 Hz
Power and Current: 115 W, 0.54 A @ 230 V, 50 Hz
