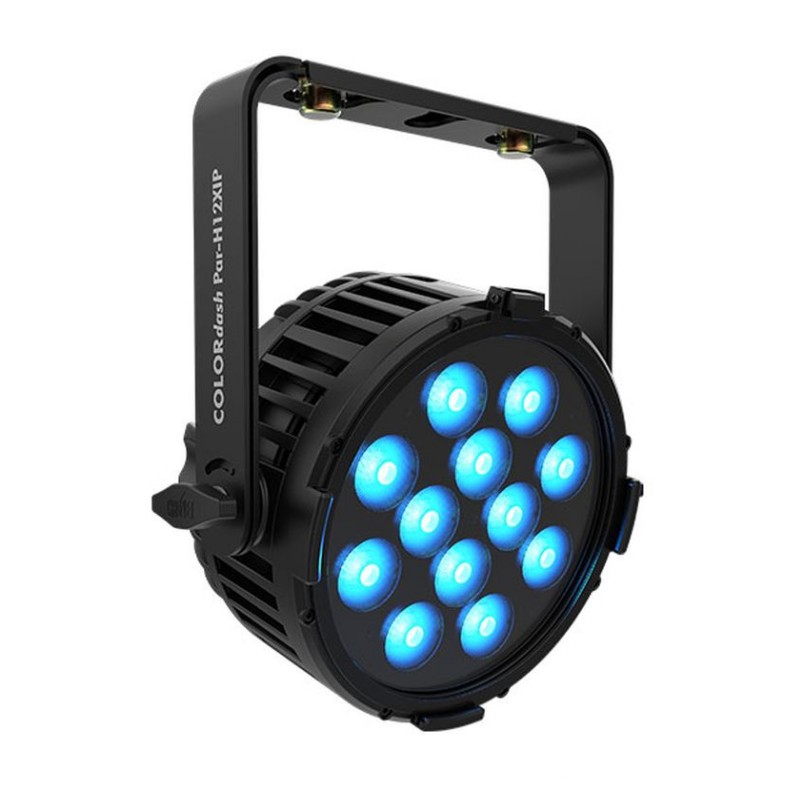

CHAUVET Professional COLORdash PAR H12X IP

CHAUVET Professional COLORdash PAR H12X IP Static Fixture Wash 120W LED RGBWA+UV IP65 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 125630

Product code: CHAPR-COLORDASHPARH12XIP

Downloads

Description

The COLORdash PAR H12X IP is a rugged, lightweight, and high-output IP65-rated RGBWAUV LED wash light delivering a broad color palette with smooth, flicker-free dimming.
This versatile, die-cast workhorse is ideal for any indoor or outdoor application, whether live or on camera, placed in a rig or on the floor.
• Features 12 hex-color RGBAW+UV LEDs delivering over 4,500 lumens of powerful output.
• Provides a versatile 2800K to 10,000K color temperature range for calibrated white light.
• Housed in a lightweight, die-cast IP65-rated body for reliable all-weather performance.
• Combines four selectable dimming curves and adjustable PWM for smooth, flicker-free operation.
• Includes RDM support for remote addressing and troubleshooting alongside multiple DMX personalities.
• Offers versatile placement with a double-bracketed yoke for rigging or floor-standing use.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK DMX 3M

CHAUVET Professional RIGLINK 5-Pin Dmx - 3M

Available

38,22 € 25,99 €

CHAUVET Professional COLORdash Par H12X Barndoor

Available 10 to 30 days

Call for pricing

Details

The rugged COLORdash PAR H12X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 12 lbs while delivering over 4,500 lumens of output.

Flawlessly smooth 16-bit fades with four selectable dimming curves.

Flicker-free output with multiple PWM frequencies.

Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects.

With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

Optical

Light Source: 12 LEDs (hex-color RGBAW+UV) 120 W, (512 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Color Temperature (at full): 11,008 K
Beam Angle: 22.2°
Field Angle: 36.9°
Lumens: 4,532
Illuminance (total): 1,052 lux @ 5 m
Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 9.1 x 12 x 9.8 in (232 x 305.4 x 247.9 mm)
Weight: 11.8 lbs (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 8.75 in (222 mm)

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Control Protocol: DMX, RDM
DMX Channels: 6ch, 8ch, 9ch, 13ch, or 14ch
Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, or 14ch)

Connections

Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 3 and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
Power and Current: 126 W, 1.041 A @ 120 V, 60 Hz
Power and Current: 123 W, 0.604 A @ 208 V, 60 Hz
Power and Current: 123 W, 0.547 A @ 230 V, 50 Hz
