Optical

• Light Source: 16 (RGBWwL) LED Engines
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 8,810 K
• CRI: 95
• Beam Angle: 17.4°
• Beam Angle (w/CYC Diffusion): 37.9°
• Beam Angle (w/Half Diffusion): 18.5°
• Beam Angle (w/Stealth Diffusion): 24.8°
• Field Angle: 38.8°
• Field Angle (w/CYC Diffusion): 81.3°
• Field Angle (w/Half Diffusion): 45.7°
• Field Angle (w/Stealth Diffusion): 60.9
• Lumens : 17,090
• Lumens (w/CYC Diffusion): 14,038
• Lumens (w/Half Diffusion): 14,998
• Lumens (w/Stealth Diffusion): 5,090
• Illuminance: 3,339 lux @ 5 m
• Illuminance (w/CYC Diffusion) : 911 lux @ 5 m
• Iluminance (w/Half Diffusion): 2,380 lux @ 5 m
• Iluminance (w/Stealth Diffusion): 501 lux @ 5 m
• Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions: 46.63 x 7.87 x 8.36 in (1184.5 x 200 x 212.4 mm)
• Weight: 38.0 lb (17.0 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, aluminum profile

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• DMX Channels:

1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

8 CELL (CCT 25ch,HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)

16 CELL (CCT 49ch,HSV 49ch, RGB 48ch, RGBW 64ch, RGBWL 80ch, RGBWL-16bit 160ch, RGB Ext. 115ch, RGBW Ext. 131ch, RGBWL Ext. 147ch, RGBWL Full 259ch)

• Art-Net / sACN Channels:

1 CELL (CCT 4ch, HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch, HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch, HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

8 CELL (CCT 25ch, HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)

16 CELL (CCT 49ch, HSV 49ch, RGB 48ch, RGBW 64ch, RGBWL 80ch, RGBWL-16bit 160ch, RGB Ext. 115ch, RGBW Ext. 131ch, RGBWL Ext. 147ch, RGBWL Full 259ch)

• Modes/Personalities: 52 personalities

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V, 7 units @ 240 V
• Power and Current: 375 W, 3.79 A @ 100 V, 60 Hz
• Power and Current: 370 W, 3.11 A @ 120 V, 60 Hz
• Power and Current: 363 W, 1.80 A @ 208 V, 60 Hz
• Power and Current: 363 W, 1.63 A @ 230 V, 50 Hz
• Power and Current: 364 W, 1.57 A @ 240 V, 60 Hz

What's Included

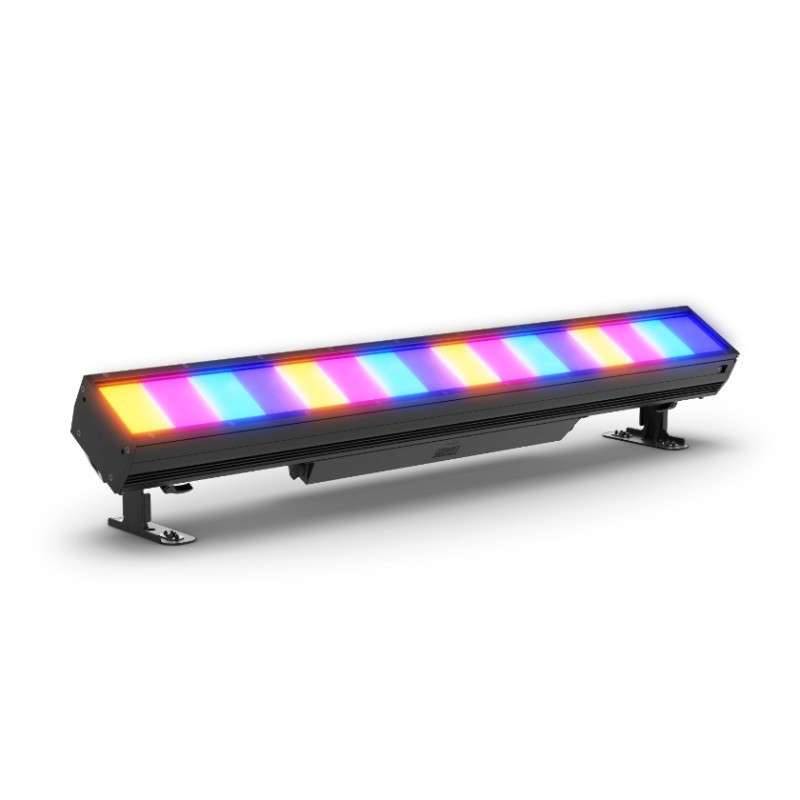

• COLORado Solo Bar 4
• Seetronic Powerkon IP65
• Omega brackets with mounting hardware
• 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
• Short Mount Accessory Feet
• Glare Shield

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• UPLOAD 03 software uploader
