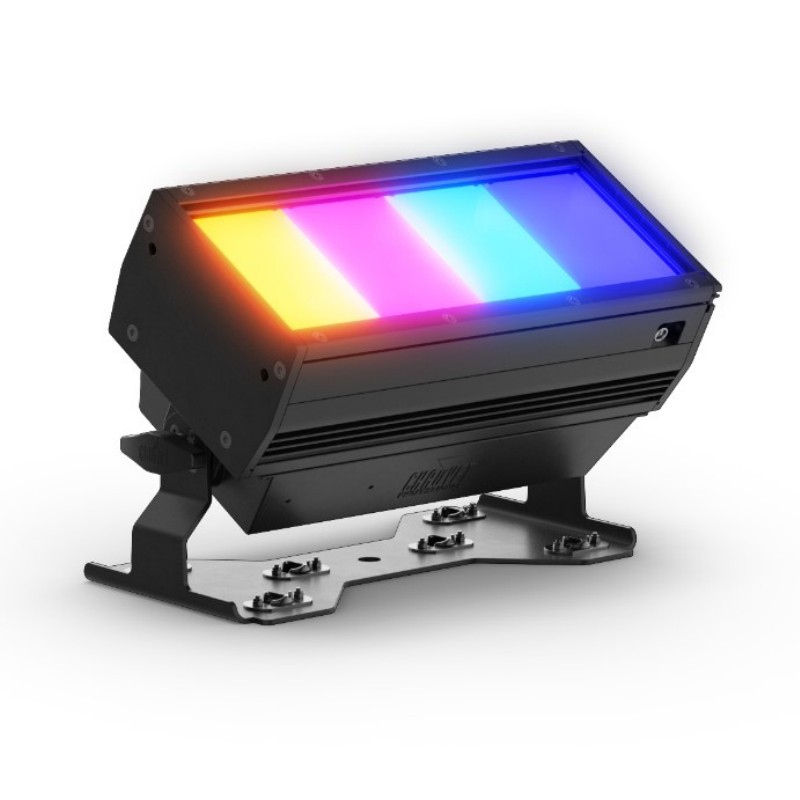

CHAUVET Professional COLORado Solo Bar 1

CHAUVET Professional COLORado Solo Bar 1 Lighting Bar Pixel LED RGBWWL IP65 - Black

Variations

Call for pricing

Upon request

Product code (SKU): 130026

Product code: CHAPR-COLORADOSOLOBAR1

Downloads

Description

A versatile, 4-cell IP65-rated RGBwWL LED batten that produces a full spectrum of color, high-quality whites, and seamless pixel-mapped looks for use as a cyc, footlight, or downlight.
Its all-weather durability and silent, camera-friendly operation make it ideal for touring, festivals, broadcast, theatre, and permanent installations.
• Delivers exceptional color fidelity with a high CRI of 95 and excellent TM-30 values.
• Provides linear color temperature presets from 2800 K to 8000 K for precise white balancing.
• Homogenized optics create seamless edge-to-edge color blending without visual artifacts.
• Offers comprehensive control flexibility with DMX, RDM, CRMX, Art-Net, and sACN protocols.
• Integrated guide pins and a stowable glare shield simplify rigging and light spill control.
• Achieve flawless fades with ultra-smooth 18-bit dimming curves and multiple dimming modes.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 25 %

Doughty T22001

Doughty Τ22001 Safety Bond 3mm with 585mm Length & SWL 15kg - Black

Available 10 to 30 days

7,04 € 5,28 €

CHAUVET Professional UPLOAD 03

Available

Call for pricing

- 32 %

CHAUVET Professional RIGLINK Combo 3M

CHAUVET Professional RIGLINK Tr1 Dmx Combo Ip - 3M

Available 10 to 30 days

128,29 € 87,23 €

CHAUVET Professional COLORado Solo Bar 1 – Stealth Dome

CHAUVET Professional COLORado Solo Bar 1 - Stealth Dome (4pc)

Available 10 to 30 days

Call for pricing

Details

COLORado Solo Bar 1 is a 4-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array.

COLORado Solo Bar 1 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light.

Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations.

A selection of beam shaping filters is included to broaden the choice of projection effects.

Control is via DMX, ArtNet or sACN.

With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 1 brings new versatility to touring, festivals, televised and theatrical productions.

Optical

Light Source: 4 (RGBWwL) LED Engines
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 9056 K
CRI: 95
Beam Angle: 16.5°
Beam Angle (w/CYC Diffusion): 27.3°
Beam Angle (w/Half Diffusion): 17.7°
Beam Angle (w/Stealth Diffusion): 25.3°
Field Angle: 33.4°
Field Angle (w/CYC Diffusion): 74.3°
Field Angle (w/Half Diffusion): 43.7°
Field Angle (w/Stealth Diffusion): 59.7°
Lumens : 4,285
Lumens (w/CYC Diffusion): 3,795
Lumens (w/Half Diffusion): 4,372
Lumens (w/Stealth Diffusion): 1,257
Illuminance: 874 lux @ 5 m
Illuminance (w/CYC Diffusion) : 276 lux @ 5 m
Illuminance (w/Half Diffusion): 595 lux @ 5 m
Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 12.13 x 6.30 x 8.36 in (308 x 160 x 212.4 mm)
Weight: 13.1 lb (6.1 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, aluminum profile

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels:

1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

Art-Net / sACN Channels:

1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

Modes/Personalities: 32 personalities

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
Software Connection: USB

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 110 W, 1.12 A @ 100 V, 60 Hz
Power and Current: 108 W, 0.93 A @ 120 V, 60 Hz
Power and Current: 106 W, 0.59 A @ 208 V, 60 Hz
Power and Current: 105 W, 0.48 A @ 230 V, 50 Hz
Power and Current: 107 W, 0.46 A @ 240 V, 60 Hz

Chauvet Professional COLORADO solo BAR included and Optional Accessories

What's Included

COLORado Solo Bar 1
Seetronic Powerkon IP65
Omega brackets with mounting hardware
50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
Glare Shield
