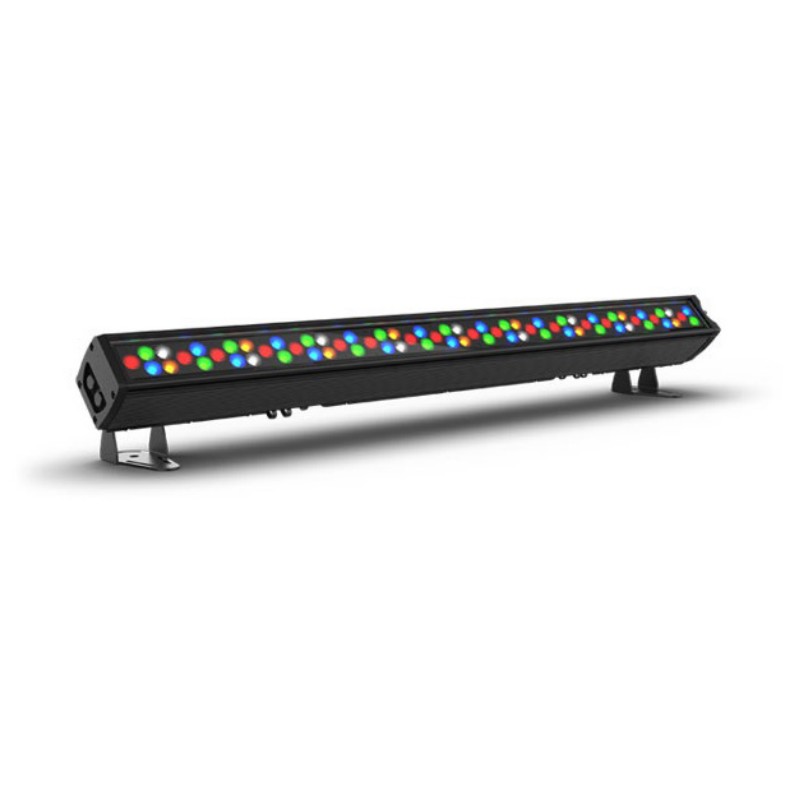

CHAUVET Professional COLORado Batten 72X

CHAUVET Professional COLORado Batten 72X Lighting Bar Wash 72 x 3W LED RGBWA IP65 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 118288

Product code: CHAPR-COLORADOBATTEN72X

Downloads

Description

A powerful, IP65-rated batten-style wash light powered by 72 calibrated RGBWA LEDs, offering superb color rendering and smooth dimming capabilities.
Its compact, tour-ready design is perfectly suited for providing versatile vertical or horizontal color washes in demanding theatrical, event, and touring applications.
• Achieves a CRI of 80 at 3200 K for high-quality warm white rendering.
• Offers selectable color temperature presets from a warm 3200 K to a cool 10000 K.
• Delivers a precise wash with a 22° horizontal and 18° vertical beam angle.
• Features 16-bit dimming and five selectable curves for exceptionally smooth fades.
• Provides extensive programming versatility with 18 DMX personalities and RDM support.
• Simplifies setup by power linking up to 19 units on a single 230 V circuit.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available 4 to 10 days

Call for pricing

- 25 %

Doughty T22001

Doughty Τ22001 Safety Bond 3mm with 585mm Length & SWL 15kg - Black

Available 10 to 30 days

5,68 € 4,26 €

- 32 %

Chauvet Professional RIGLINKCOMBO1M

Chauvet Professional RIGLINKCOMBO1M Riglink Tr1 Dmx Combo Ip - 1M

Available 10 to 30 days

74,84 € 50,89 €

Details

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs.

The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues.

Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs.

Integrated trunnions accommodate clamps for vertical or horizontal hanging.

Optical

Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
Color Temperature (range): 3200 to 10000 K
CRI (3200 K): 80
Installed Optics: 24°
Beam Angle (Horizontal): 22°
Beam Angle (Vertical): 18°
Field Angle (Horizontal): 39 °
Field Angle (Vertical): 34°
Lumens: 3,631
Illuminance (total): 1730 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

Construction / Physical

Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
Weight: 18.6 lb (8.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

Certifications / Qualifications

CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16 3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
Modes/Personalities: 18 personalities

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
