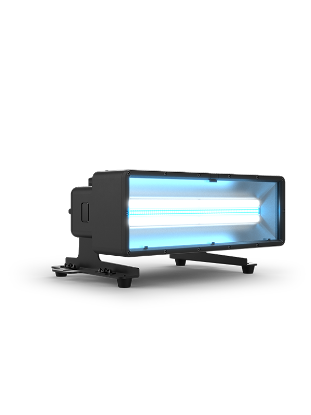

CHAUVET Professional COLOR STRIKE M

CHAUVET Professional COLOR STRIKE M Blinder Fixture Pixel Wash LED RGB Cold White IP65 - Black

Call for pricing

Available

Product code (SKU): 122167

Product code: CHAPR-COLORSTRIKEMV2

Downloads

Description

An IP65-rated motorized strobe and wash fixture that combines two ultra-bright white tube elements with a surrounding color-mixing, pixel-mappable face and a 180° tilt range for versatile, high-impact lighting effects.
Perfect for creating massive linear arrays and dynamic visual displays for concerts, festivals, and touring productions requiring powerful and weather-resistant strobe and wash effects.
• Features two powerful, cool-white LED tube elements surrounded by a vibrant, color-mixing plate.
• Offers extensive pixel-mapping control over 14 RGB zones and 28 individual strobe sections.
• Housed in a rugged, IP65-rated enclosure for reliable all-weather performance.
• Supports DMX, Art-Net, and sACN protocols for seamless professional system integration.
• Simplifies large-scale arrays with integrated alignment pins for precise, seamless fixture linking.
• A 180° motorized tilt range directs wide-angle wash and strobe effects with precision.

Based on your selection, you may be interested in the following items

CHAUVET Professional CTC-50G

CHAUVET Professional CTC-50G Gripper Clamp (50mm)

Available

Call for pricing

- 25 %

Doughty T22001

Doughty Τ22001 Safety Bond 3mm with 585mm Length & SWL 15kg - Black

Available 10 to 30 days

7,04 € 5,28 €

- 32 %

CHAUVET Professional RIGLINK IP65 DMX 1M

CHAUVET Professional RIGLINK 5-Pin Dmx Ip - 1M

Available 10 to 30 days

32,76 € 22,28 €

CHAUVET Professional UPLOAD 03

Available

Call for pricing

Details

Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face.

This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need.

The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle.

Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements.

Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements.

DMX, Art-net, and sACN control.

Optical

Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
Color Temperature (at full): 7757 K
CRI: 90.3
Beam Angle (Combine): 98° x 57°
Beam Angle (Plate): 123°
Beam Angle (Beam): 95° x 50°
Field Angle (Combine): 146° x 122°
Field Angle (Plate): 160°
Field Angle (Beam): 138° x 100°
Lumens (Combined): 71,620
Lumens (Plate): 18,600
Lumens (Beam): 54,381
Illuminance (Combined): 1591 lux @ 5 m
Illuminance (Plate): 231 lux @ 5 m
Illuminance (Beam): 1432 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Tilt: 180°
Tilt Range: 0° to 180°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
Weight: 26.6 lb (12.1 kg)
Exterior Color: Black
Housing Material: Magnesium alloy

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Control

Control Protocol: Art-Net, DMX, RDM, sACN
DMX Channels: 8, 11, 13, 24, 30, 47, 68, 74 or 97
Art-Net Channels: 8, 11, 13, 24, 30, 47, 68, 74 or 97
Modes/Personalities: 8 personalities (8, 11, 13, 24, 30, 47, 68, 74, 97)

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz
Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz
Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz
Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz
Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz

Chauvet Professional COLOR STRIKE M included and Optional Accessories

What's Included

Color STRIKE M
Seetronic Powerkon IP65 power cord
Omega bracket

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader
