CHAUVET DJ Pinspot Q1Z ILS

CHAUVET DJ Pinspot Q1Z ILS Static Fixture Pinspot 20W LED RGBW - Black
195,26 €
325,19 €
Contributions included 0,30 €
Available 10 to 30 days
Product code (SKU): 130063
Product code: CHADJ-Pinspot Q1Z ILS

Description

Compact pinspot fitted with a 20W quad-color RGBW LED
Manual zoom for short or long throw applications
D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi™ USB sold separately)
Easy navigation and access to all functions directly from the OLED display
Convenient, wireless non-DMX control using the IRC-6 remote.
Fits best in the CHS-40 VIP Gear Bag


Αναλυτικά

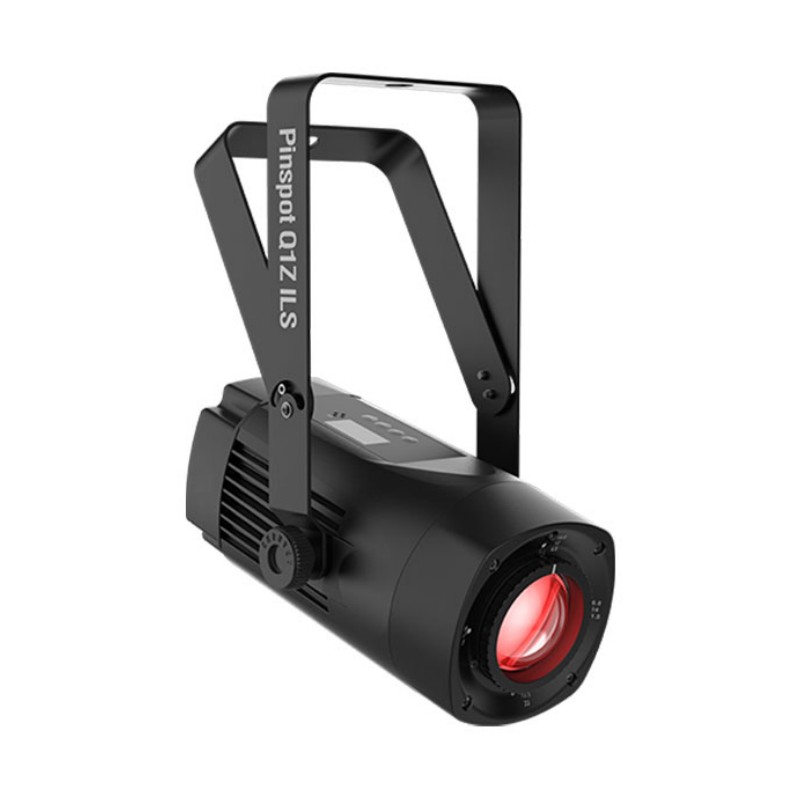

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display.

ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3.

Its manual zoom brings versatility to both short and long throw applications.

Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Chauvet DJ Pinspot Q1Z ILS Specifications

Specifications

  • DMX Channels: 4, 6, or 7
  • DMX Connectors: 3-pin XLR
  • Light Source: 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 33 Hz
  • Zoom Angle: 5° to 25°
  • Lumens: 617
  • Weight: 3 lb (1.36 kg)
  • Size: 12.1 x 3.5 x 8.5 in (308 x 89 x 217 mm)
  • Approvals: CE, UKCA, ROHS
  • Power and Current: 9 W, .3 A @ 120 V, 60 Hz
  • Power and Current: 20 W, .2 A @ 230 V, 50 Hz
  • Optional Controllers: IRC6, ILSCOMMAND
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Bracket Mounting Hole: M12
  • Illuminance: (narrow): 4,081 lux @ 2 m
  • Illuminance: (Wide): 623 lux @ 2 m
Chauvet DJ Pinspot Q1Z ILS What's included

What's included

  • Pinspot Q1Z ILS
  • Power cord
  • Quick Reference Guide

Information and Downloads

Manual
