Specifications

• DMX Channels: 3, 24 or 60
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180° 360° 540° Pan / 90° 180° 270° tilt
• Strobe Rate: 0 to 20 Hz
• Operating Frequency: 2.4 GHz
• Power Linking: 9 units @120 V; 18 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:

147 W, 1.2 A 120 V, 60 Hz

144 W, 0.6 A 230 V, 50 Hz

• Weight: 7.5 kg
• Size: 635 x 65 x 290 mm
• Approvals: CE, RoHS, FCC

Specifications

• Illuminance (moving head) : 24,670 @ 2 m (per head)
• Illuminance (wash) : 525 Lux @ 2 m (per section)
• Light Source (moving heads): 2 LEDs (RGBW) 80 W total (2.8 A), 50,000 hours life expectancy
• Light Source (wash): 4 LEDs (RGBAW+UV) 40 W total (2.6 A), 50,000 hours life expectancy
• Light Source (LED ring): 48 LEDs (RGBW) 10 W total 50,000 hours life expectancy
• Beam Angle (moving head): 5°
• Beam Angle (wash): 20°
• Field Angle (wash): 37°Max
• Unobstructed Distance (D-Fi): 183 m
• Fits Tripod Sizes: 37.4 mm
• Optional Controllers: RF, Footswitch, ILS Command

What's included

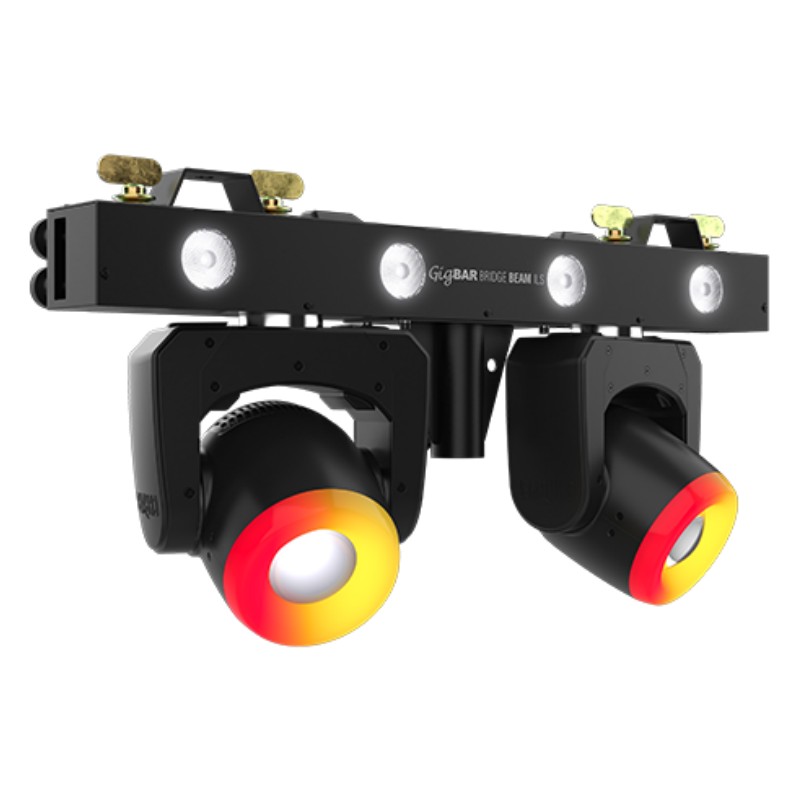

• Gigbar Bridge Beam ILS
• Power cable Carrying case
• 2 Hanging brackets
• RF Remote
• Quick Reference Guide
