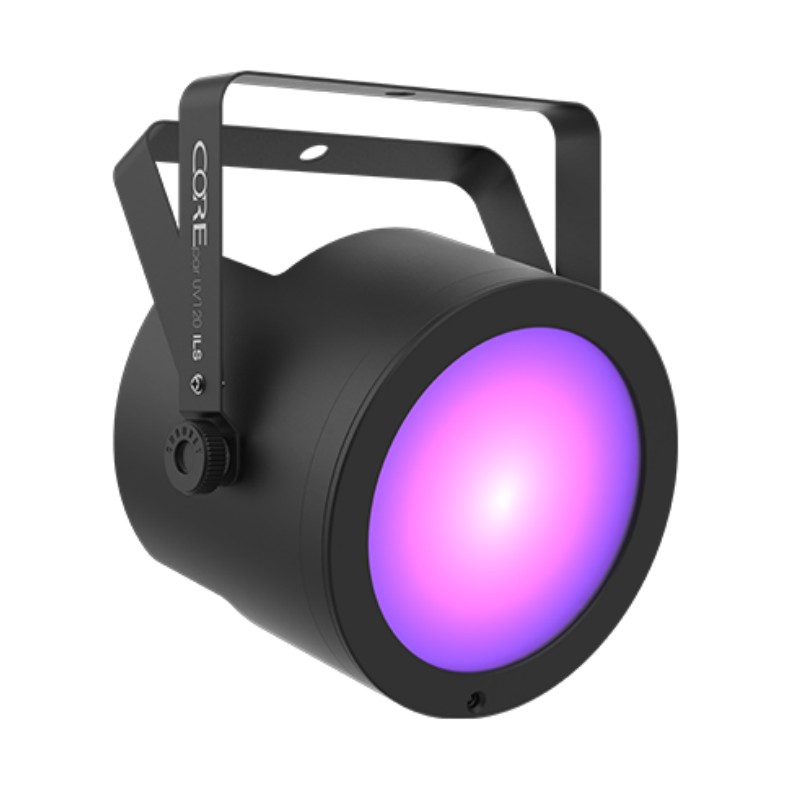

CHAUVET DJ COREpar UV 120 ILS

CHAUVET DJ COREpar UV 120 ILS Static Fixture Wash 120W LED UV IP20 - Black
337,75 €
562,66 €
Contributions included 0,30 €
Available
Product code (SKU): 124124
Product code: CHADJ-COREpar UV 120 ILS

Description

Compact ultra-wide UV wash with COB (Chip-on-Board) technology
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing
Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
Fits best in the CHS-40 VIP Gear Bag


Αναλυτικά


COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology.

Also on board is ILS compatibility which makes creating coordinated light shows across different fixture types easy.

COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation.

The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds.

Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections.

COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.

CHAUVET DJ COREpar UV 120 ILS Specifications

Specifications

  • DMX Channels:1 or 5
  • DMX Connectors:3-pin XLR
  • Light Source:1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
  • Strobe Rate:0 to 20 Hz
  • Beam Angle:

(with lens): 21°

(without lens): 44°

  • Field Angle:

(with lens): 34°

(without lens): 94°

  • Power Linking:5 units @ 120 V; 9 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:

119 W, 1.5 A @ 120 V, 60 Hz

118 W, 0.9 A @ 230 V, 50 Hz

  • Weight:4.6 lb (2.1 kg)
  • Size:8.9 x 7.4 x 9 in (225 x 185 x 228 mm)
  • Approvals:CE, RoHS, UKCA
  • Optional Controllers: IRC-6, D-Fi USB
  • Wavelength: 390 to 400 nm
CHAUVET DJ COREpar UV 120 ILS What's included

What's included

  • Fixture
  • Power cord
  • Magnetic lens
  • Quick Reference Guide
