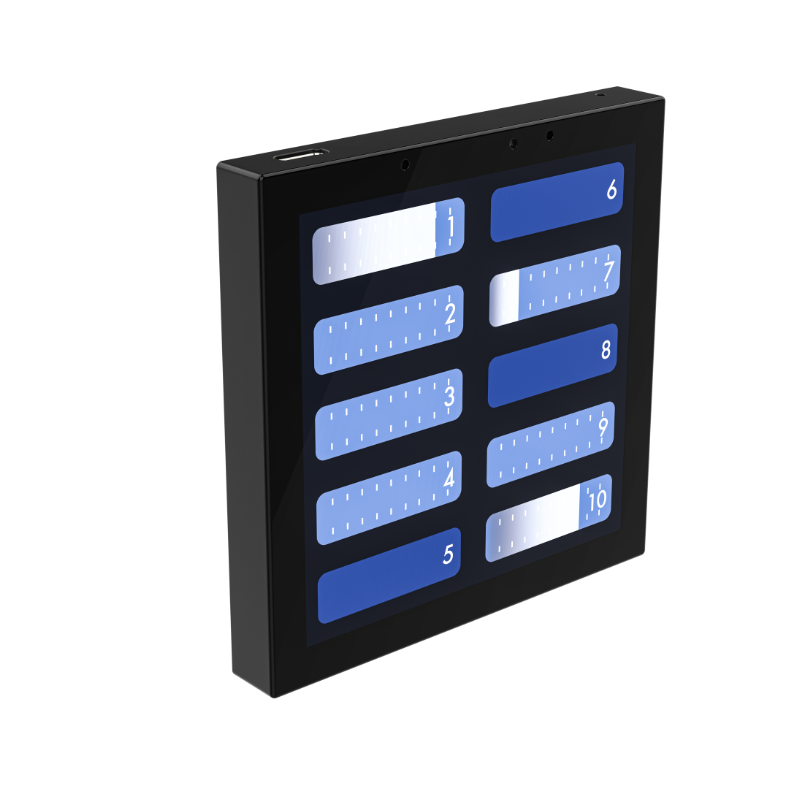

GeNetix TouchScene MINI seamlessly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation. When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level
control is available. Connecting to a MagicQ control system allows for complete interface customisation, including custom icons and images as well as fully customising the items on the display. Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene MINI includes inbuilt layouts that allow its 4” touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene MINI is PoE powered, allowing integrators to easily add remote
control to installations using standard Ethernet cablefor connectivity.

Hardware Specification
• Screen Size: 4”
• 48v PoE Powered: Yes
• Unlocks MagicQ PC Systems: No*
• Fits EU / UK Single Gang Backbox: Yes
• Fits US Dual Gang Backbox: Yes (with supplied adapter
plate)*
Note when used with MagicQ PC Systems, MagicQ must be
fully unlocked in order for the TouchScene to work with the
PC System.

Software Specifications (When used with PC Systems)
• Connects to MagicQ Consoles: Yes
• Connects to QuickQ Consoles: Yes
• Connects to GeNetix Nodes: Yes
• Connects to MagicQ PC Systems: Yes - Required System
to be Full Unlocked
• Number of Zones when used with MagicQ Systems: 50
• Number of Zones when used with QuickQ Consoles: 10
• PIN Locking: Yes - MagicQ/QuickQ Only
• Customisable Screen Saver Images: Yes
• Inbuilt UI Layouts: Yes
• Customisable UI Layout: Yes - MagicQ / QuickQ Onl

Unit Weights and Dimensions:
• Width: 85mm (3.34 Inches)
• Depth: (Front Panel): 11mm (0.43 Inches)
• Depth Including Rear Connector: 35mm (1.38 Inches)
• Height: 85mm (3.34 Inches)
• Weight: 0.1kg (0.22 Lbs)
