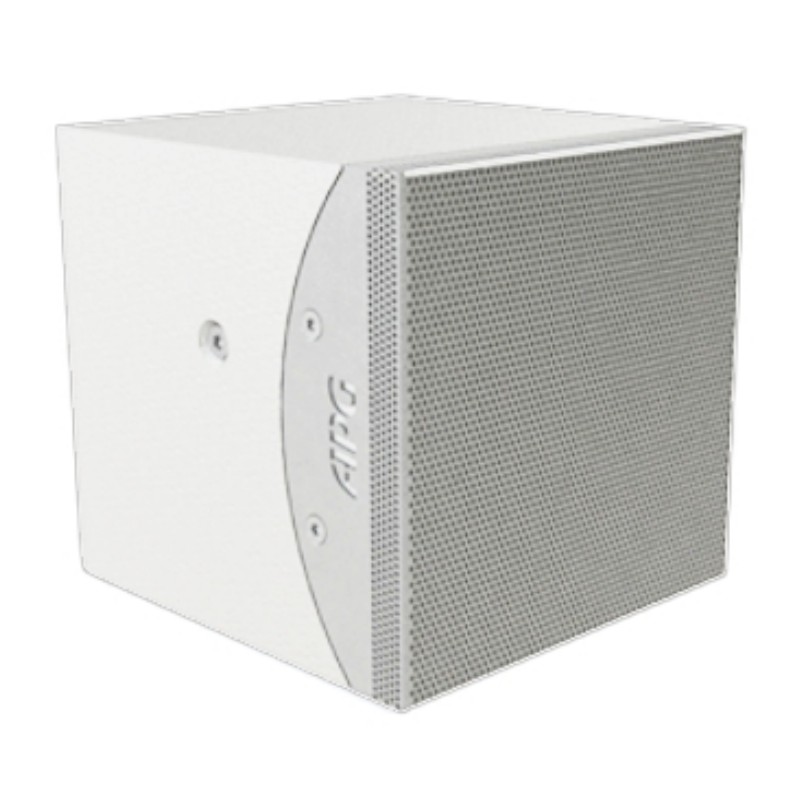

The APG iX5 is a miniature 2-way full range loudspeaker. The low/mid frequencies are handled by a 5" long-throw driver loaded in a bass-reflex enclosure, while HF is handled by a coaxial dome tweeter.

The coaxial technology and acoustic baffling ensure a coherent and linear acoustic field with a substantial reduction in diffraction phenomena. The tweeter is physically aligned with the bass driver which results in a particularly linear phase response with a 105° conical dispersion pattern. The iX5 is characterised by its ultra-compact size and audio quality that is comparable to the best studio monitors on the market, but with even better performance and power handling.

The ergonomics remain simple, but dedicated to the needs offixed installation : cubic format; recessed Phoenix connectors for discreet cabling; metal inserts for stand-/wall-/ceiling-mounting via the IX5B bracket; fitting for optional 70/100V line transformer. The DMS48F digital processors provide loudspeaker management and filtering for the iX5 in full range mode combined with a APG subwoofer.

Technical features
Usable bandwidth(± 10 dB): 60 Hz - 20 kHz
SPL max @ 1m: 116 dB SPL (1)
Nominal directivity (H° x V°): 105° x 105° (2)
Nominal impedance: 16 ohm
Transducers: 1 x 5'' coaxial - 1 x 1'' HF ND driver
Topology: Coaxial
Type of load: Bass Reflex
Way and amplification section: 2 ways, mono amplified
AES power (W): 100 W (3)
Maximum power handling (W): 400 W (4)
Dimensions H,W,D (mm): 6,6" x 6,6" x 7,4" (170 x 170 x 190 mm)
Weight (kg): 9,2 lb (4,2 kg)
Connectors: Phoenix 2-way (2 way in / 2 way out)
IP: 43

*Available in various colors upon order
