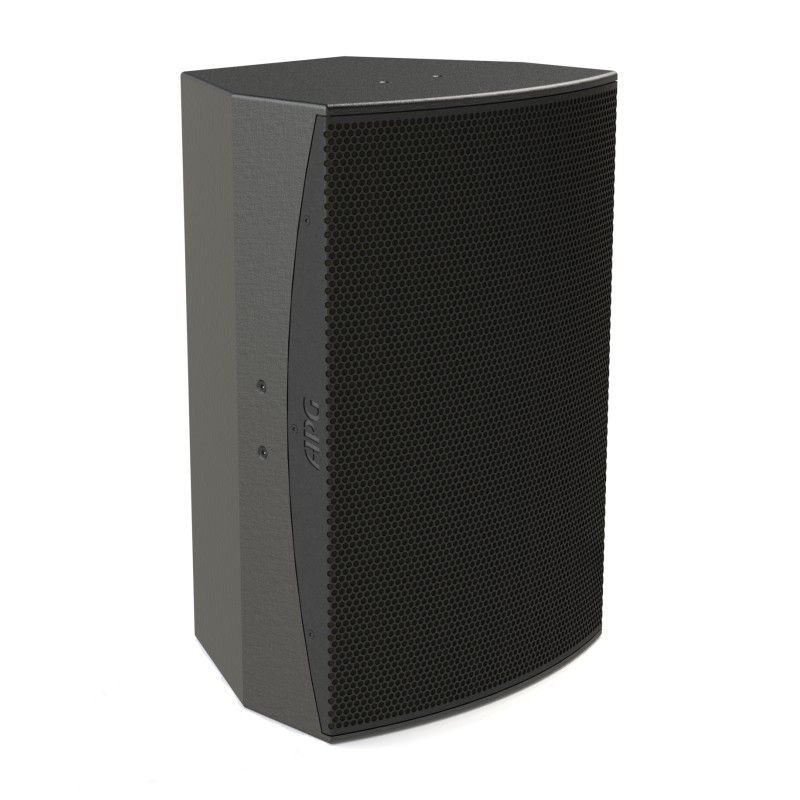

The APG iX15-O model is a stand-alone two-way unit for pure coaxial installation. The bass/medium range is handled by an elongated 15'' speaker with a magnetic driver which uses a proprietary forced thermal cooling technology which makes it possible to reduce the losses inherent to thermal compression.

The 1.4” HF driver is connected via an original passive filter which also makes it possible to minimise the energy loss in the passive components. These technologies bring about a very high dynamic capacity from the low right through to the very highest frequencies. The front face of the cabinet is designed to form a zero-diffraction baffle and obtain a consistent, linear acoustic field.

The iX15-O stands out due to its acoustic performance at every level : dynamic capacity, sound reproduction quality, linearity of amplitude, both in terms of phase and directivity. In terms of ergonomics, the iX15-O is optimised for fixed installations. It has a streamlined trapezoidal design, built-in connectors SpeakonTM and metal inserts for wall or ceiling mounting using the accessory IX15BV-O or IX15BH-O.

Technical features
Usable bandwidth(± 10 dB): 45 Hz - 20 kHz
SPL max @ 1m: 136 dB SPL (1)
Nominal directivity (H° x V°): 90° x 90° (2)
Nominal impedance: 8 ohm
Transducers: 1 x 15'' coaxial ventiled - 1 x 1,4'' HF ND driver
Topology: Coaxial - APG NDB Baffle
Type of load: Bass Reflex
Way and amplification section: 2 ways, mono amplified
AES power (W): 550 W (3)
Maximum power handling (W): 2200 W (4)
Dimensions H,W,D (mm): 17,3" x 25,9" x 14,8" (440 x 660 x 377 mm)
Weight (kg): 50,7 lb (23 kg)
Connectors: 2 x Gland connector
IP: 54
