Active Audio SA230P+

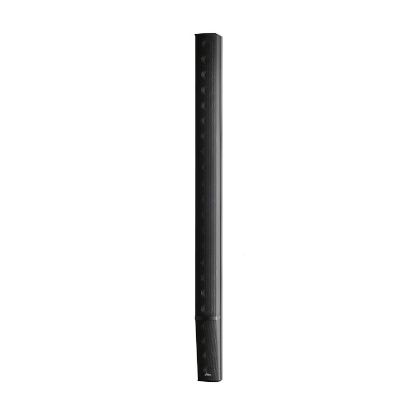

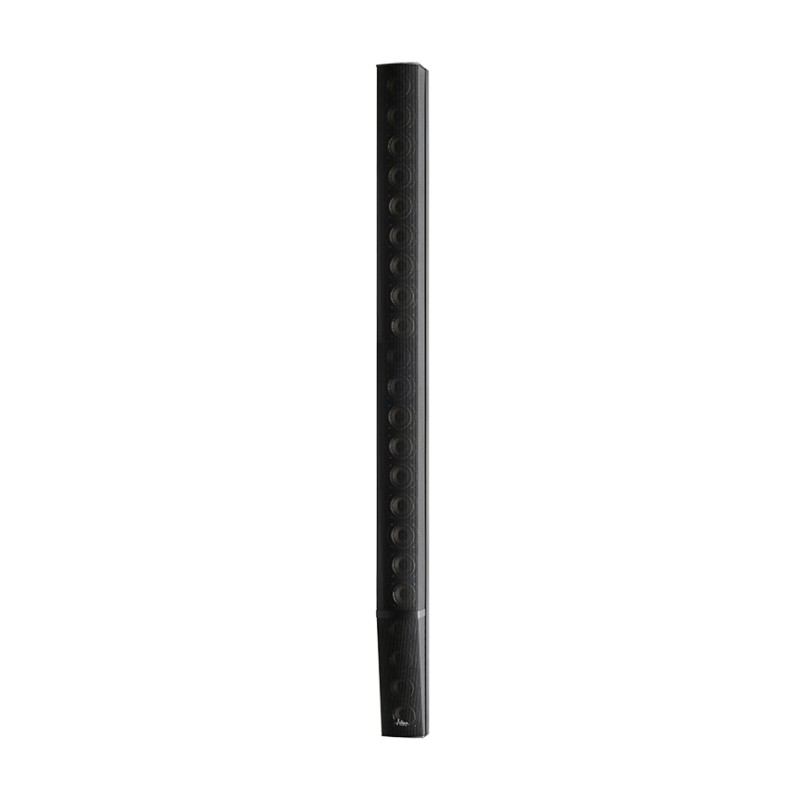

Active Audio SA230P+ StepArray+ Self-powered DSP Column Loudspeaker DanteTM-enabled 2.30 m
Product code (SKU): 126899
Product code: ACT-SA230P+


Dante™-compatible powered DSP column loudspeaker, 2.30m
For venues with horizontal seating
Designed for mid-sized spaces
Range: 40m at ±5dB

Acoustical data
Max SPL: 95dBSPL @ 15m
Range ±3dB: ±3dB 30m
Range ±5dB: ±5dB 40m
Angle of audience: 0°-5°
Frequency bandwidth: (-10dB) 110Hz-19kHz
Horizontal opening angle: 180°

Electrical data
Number of Channels: 3
Nominal impedance: 8Ω
Inputs: 1x sym. analog, 1x Dante™
Network: 1x RJ45Dante™

Mechanical data
Dimensions (WxPxH): 124mm x 135mm x 2340mm
Net / shipping weight: 22kg / 24kg
Colors: white, black
