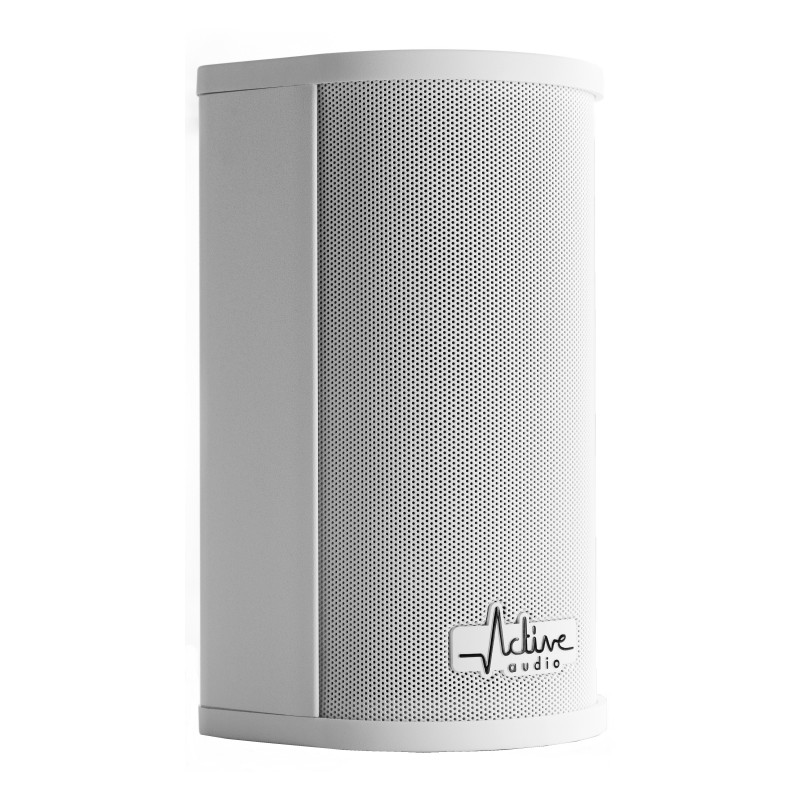

Active Audio Rmini-w

Active Audio Rmini-w Ray-On Compact loudspeaker (20cm) 100V or 8Ω White
Product code (SKU): 126905
Product code: ACT-Rmini-w


Compact loudspeaker (20cm), 100V or 6Ω, EN 54-24 Type B-compatible
Specifically designed for corridors and transit areas (stations, airports and subways) or to complement other column loudspeakers in the range for confined areas
Range: 5m at ±5dB

Acoustical data
Max SPL: 97dBSPL @ 1m
Sensitivity: 84dB/1W @ 1m
Range ±3dB: 3.2m
Range ±5dB: 5m
Frequency bandwidth: (-10dB) 120Hz-18kHz
Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
Vertical directivity: Wavefront synthesis

Electrical data
Continous power: 30W
Nominal impedance: 6Ω
Connectors: Screw connector
Protection: Thermal fuse
Certification: EN54-24 certified

Mechanical data
Dimensions (WxPxH): 128mm x 117mm x 192mm
Net / shipping weight: 2kg / 2.7kg
Environment: IP55 (25° - 55°) / IK08
Colors: white, black
