Active Audio R70TC-w

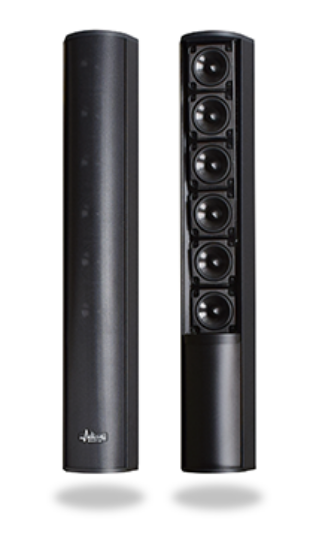

Active Audio R70TC-w Ray-On Column loudspeaker (70cm) 100V or 8Ω White

Variations

Picture of Active Audio R70TC-w
Picture of Active Audio R70TC-b
Call for pricing
Product code (SKU): 126908
Product code: ACT-R70TC-w

Description

Column loudspeaker (70cm), 100V or 8Ω, EN 54-24 Type B-compatible
For small venues. This speaker is ideally suited to small conference rooms, boardrooms, medium-sized classrooms, and so on.
It can also be used to reinforce installations featuring R110 and R210 speakers.
Range: 12m at ±5dB

Related products

Picture of Active Audio Rmini-w
Active Audio Rmini-w

Active Audio Rmini-w

Active Audio Rmini-w Ray-On Compact loudspeaker (20cm) 100V or 8Ω - White
Call for pricing
Picture of Active Audio R70+-w
Active Audio R70+-w

Active Audio R70+-w

Active Audio R70+-w Ray-On+ Self-powered DSP Column Loudspeaker DanteTM-enabled 70cm White
Call for pricing
Picture of Active Audio R70PoE-w
Active Audio R70PoE-w

Active Audio R70PoE-w

Active Audio R70PoE-w Ray-On PoE Self-powered DSP Column Loudspeaker 70cm White
Call for pricing

Based on your selection, you may be interested in the following items

Picture of Active Audio R100SM
Active Audio R100SM

Active Audio R100SM

Active Audio R100SM Ray-On Stand mount for Ray-On R70 and R110 models
Call for pricing
Picture of Active Audio iS110-W
Active Audio iS110-W

Active Audio iS110-W

Active Audio iS110-W Subwoofer 10" passive - White
Call for pricing
Picture of Active Audio MPA8200
Active Audio MPA8200

Active Audio MPA8200

Active Audio MPA8200 Amplifier 8 Channel without DSP 8x200W / 8Ω 8x300W / 4Ω
Call for pricing



Details


Ray-On® bears testament to Active Audio’s determination to offer the StepArray DGRCs technology to a wide audience.

Α range of products is designed incorporating the directivity control of high-end DSP speakers, while retaining the price attributes and easy installation of traditional speakers.

Thanks to its simple and sleek design combined with its vertical mounting system, Ray-On can be fitted in venues with the most demanding architectural constraints.

Active Audio Ray-On Series applications

Applications

  • Transport Hubs
  • Public places
  • Conference room
  • Houses of worship
Active Audio Ray-On Series applications Advantages

Advantages

  • Flawless intelligibility
  • Wide and even sound coverage
  • Vertical mounting system except B70
  • 8Ω/100V compatibility
  • Certified to EN 54-24 IP55: indoor / outdoor rating
Active Audio Ray-On Series applications Acoustical data

Acoustical data

  • Max SPL: 97dBSPL @ 5m
  • Sensitivity: 71dB/1W @ 2m
  • Range ±5dB: 12m
  • Frequency bandwidth: (-10dB) 120Hz-18kHz
  • Horizontal opening angle: 40° (1kHz)
  • Vertical directivity: 180° (1kHz)
Active Audio Ray-On Series applications Electrical and mechanical data

Electrical data

  • Continous power: 75W
  • Nominal impedance: 8Ω
  • Connectors: Lever quick connector with loop-through
  • Protection: Thermal fuse
  • Certification: EN54-24 certified

Mechanical data

  • Dimensions (WxPxH): 128mm x 117mm x 706mm
  • Net / shipping weight: 5.4kg / 5.9kg
  • Environment: IP55 (25° - 55°) / IK08
  • Colors: white, black

Information and Downloads

Manual

Technical Specifications
