Active Audio R110TC-b

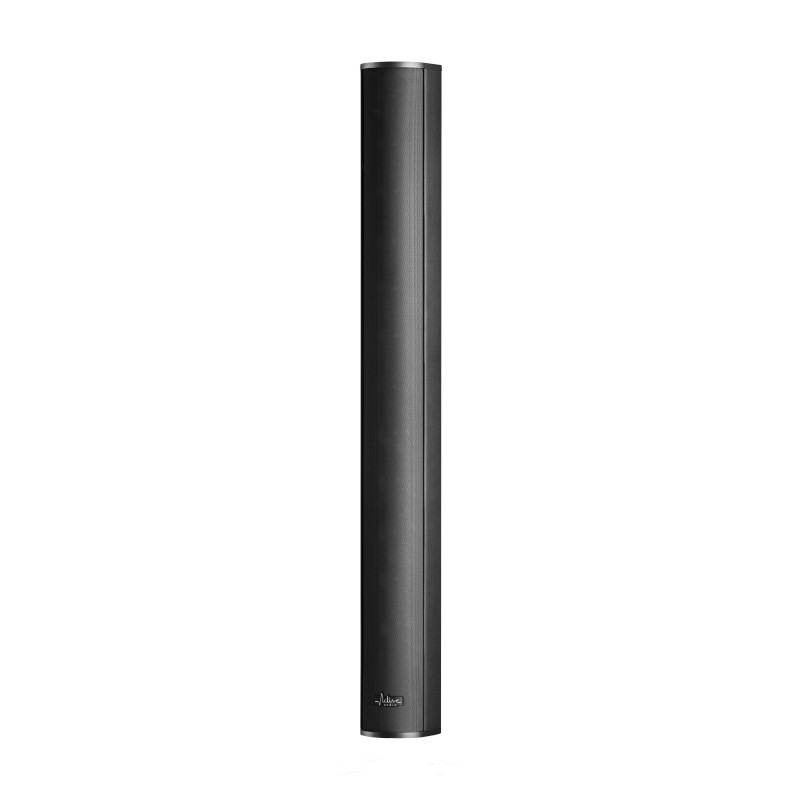

Active Audio R110TC-b Ray-On Column loudspeaker (1,10m) Black

Variations

Picture of Active Audio R110TC-b
Picture of Active Audio R110TC-w
Call for pricing
Product code (SKU): 126914
Product code: ACT-R110TC-b

Description

Column loudspeaker (1.10m)
This speaker is suited to mid-sized venues, whether standalone or as part of a distributed system: churches, conference rooms, station platforms, shopping malls, etc.
This has been our bestselling speaker since its release
Available in three versions: 8Ω, 8Ω/100V and 8Ω/100V/EN 54.
Range: 20m at ±5dB

Related products

Picture of Active Audio R110PoE-b
Active Audio R110PoE-b

Active Audio R110PoE-b

Active Audio R110PoE-b Ray-On PoE Self-powered DSP Column Loudspeaker 1,10m Black
Call for pricing
Picture of Active Audio R110+-b
Active Audio R110+-b

Active Audio R110+-b

Active Audio R110+-b Ray-On+ Self-powered DSP Column Loudspeaker DanteTM-enabled 1,10m Black
Call for pricing
Picture of Active Audio R110-b
Active Audio R110-b

Active Audio R110-b

Active Audio R110-b Ray-On Column loudspeaker (1,10m) Black
Available
Call for pricing

Based on your selection, you may be interested in the following items

Picture of Active Audio R100SM
Active Audio R100SM

Active Audio R100SM

Active Audio R100SM Ray-On Stand mount for Ray-On R70 and R110 models
Call for pricing
Picture of Active Audio iS112
Active Audio iS112

Active Audio iS112

Active Audio iS112 Subwoofer 12" passive - Black
Call for pricing
Picture of Active Audio iS115
Active Audio iS115

Active Audio iS115

Active Audio iS115 Subwoofer 15" passive - Black
Call for pricing
Picture of Active Audio MPA8200
Active Audio MPA8200

Active Audio MPA8200

Active Audio MPA8200 Amplifier 8 Channel without DSP 8x200W / 8Ω 8x300W / 4Ω
Call for pricing



Details


Ray-On® bears testament to Active Audio’s determination to offer the StepArray DGRCs technology to a wide audience.

Α range of products is designed incorporating the directivity control of high-end DSP speakers, while retaining the price attributes and easy installation of traditional speakers.

Thanks to its simple and sleek design combined with its vertical mounting system, Ray-On can be fitted in venues with the most demanding architectural constraints.

Active Audio Ray-On Series applications

Applications

  • Transport Hubs
  • Public places
  • Conference room
  • Houses of worship
Active Audio Ray-On Series applications Advantages

Advantages

  • Flawless intelligibility
  • Wide and even sound coverage
  • Vertical mounting system except B70
  • 8Ω/100V compatibility
  • Certified to EN 54-24 IP55: indoor / outdoor rating
Active Audio Ray-On Series applications Acoustical data

Acoustical data

  • Max SPL: 92dBSPL @ 8m
  • Sensitivity: 72dB/1W @ 8m
  • Range ±3dB: 15m
  • Range ±5dB: 20m
  • Frequency bandwidth: (-10dB) 120Hz-18kHz
  • Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
  • Vertical directivity: Wavefront synthesis
Active Audio Ray-On Series applications Electrical and mechanical data

Electrical data

  • Continous power: 150W
  • Nominal impedance: 8Ω
  • Connectors: Lever quick connector with loop-through
  • Protection: Thermal fuse
  • Certification: EN54-24 certified

Mechanical data

  • Dimensions (WxPxH): 128mm x 117mm x 1115mm
  • Net / shipping weight: 8.5kg / 9.3kg
  • Environment: IP55 (25° - 55°) / IK08
  • Colors: white, black
