Active Audio R110+-w

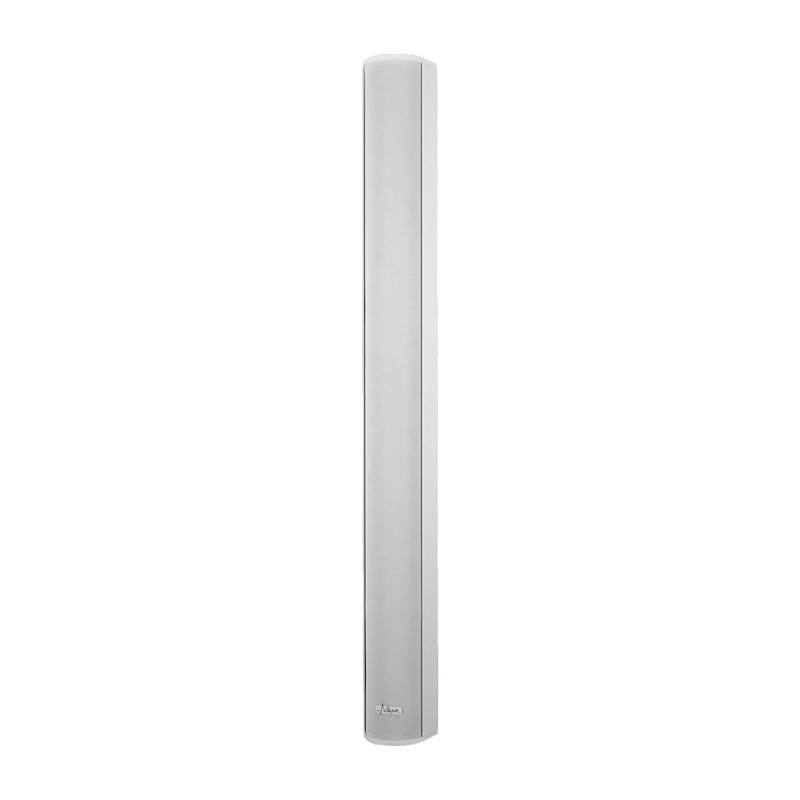

Active Audio R110+-w Ray-On+ Self-powered DSP Column Loudspeaker DanteTM-enabled 1.10m White
Product code (SKU): 126928
Product code: ACT-R110+-w

Description

The R110+ is a 110cm active column, which is designed to be mounted vertically.
With a nominal range of 20m, it offers a high-quality alternative for medium sized spaces in airports, train and underground stations, conference rooms, churches or shopping malls when you need to run the audio over a network.
Ray-On+ is reserved for indoor use, it cannot be subjected directly to rain.
Range: 20m at ±5dB

Acoustical data
Max SPL: 92dBSPL @ 8m
Sensitivity: 72dB/1W @ 8m
Range ±3dB: 15m
Range ±5dB: 20m
Frequency bandwidth: (-10dB) 120Hz-18kHz
Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
Vertical directivity: Wavefront synthesis

Electrical data
Nominal impedance: 8Ω
Inputs: 1 x symmetrical analog input (Euroblock)
1 x Dante™ RJ45 input
Power supply: 90V-250V 50Hz/60Hz
Amplifier: Class D 300W
Protection: Thermal fuse
Equalization: Optimal pre-programmed.

Mechanical data
Dimensions (WxPxH): 128mm x 117mm x 1115mm
Net / shipping weight: 10.1kg / 10.9kg
Environment: IP23
Colors: white, black



active ray plus on series

About

Ray-On+ is the Dante-enabled, active version of the Ray-On column loudspeakers.

Acoustically, they combine the patented DGRC principle that has made the success of Active Audio’s column loudspeakers, with an onboard DSP to equalize the speakers and an integrated amplifier.

It is network-enabled and features a Dante™ input port for lossless transmission of the audio signal.

active audio ray on plus series sound

Acoustics meets Architecture

Ideal for:

Transport hubs

Conference rooms

Public places

Houses of worships



Advantages

Flawless intelligibility

Wide and even sound coverage

Vertical mounting system except B70

Dante-enabled

ray on plus series technology

Technology - DGRC & Dante

The Ray-On+ range includes three self-powered column loudspeakers in 70 cm, 1.10 and 2.10 meters based on the patented DGRC technology.

This innovation delivers consistent sound coverage and the superior clarity and sound quality traditionally found in high-end controlled directivity systems.

The fine mesh grill gives the sleek and sophisticated speakers an even texture and color, meaning that they blend seamlessly into the chosen environment.

With Dante™, Audinate has revolutionized how AV systems are connected. By transporting high-resolution signals over standard computer networks, Dante™ has finally brought affordability and reliability to audio over IP.

Ray-On+ users will appreciate the sound performance achieved by the loss-free transmission of digital signals as well as the virtual absence of latency – less than one millisecond.

In addition to delivering pure performance, Dante™ provides superior flexibility and real-time diagnostics of the installation.

Ray-On+ also supports the use of existing network cables and saves significant money on wiring with up to 64 channels over a single Ethernet cable.

Ray-On+ combines the qualities of Dante™ and Ray-On to raise the efficiency and flexibility bar even higher.
