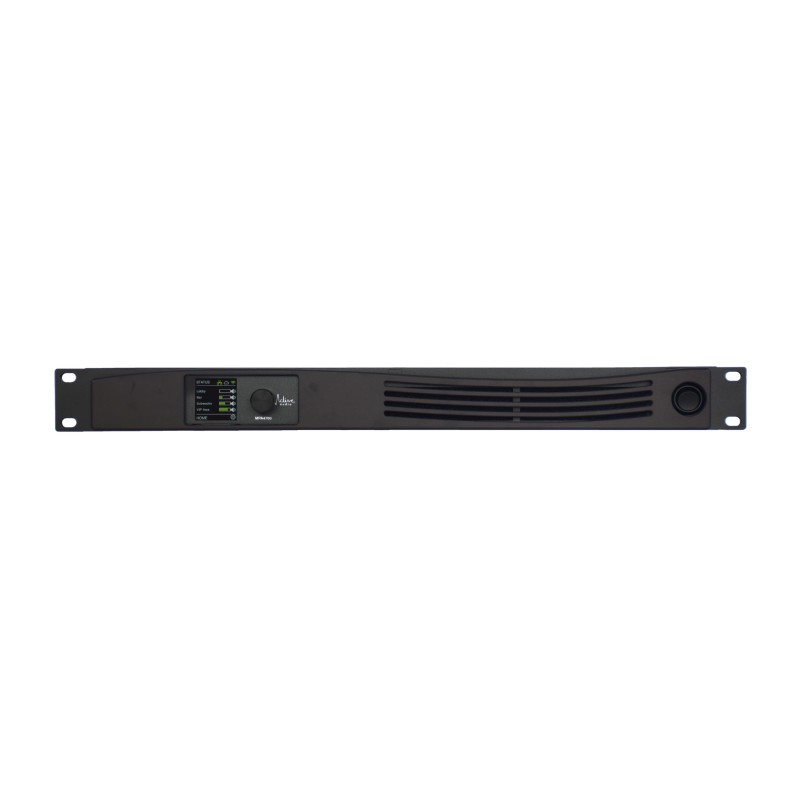

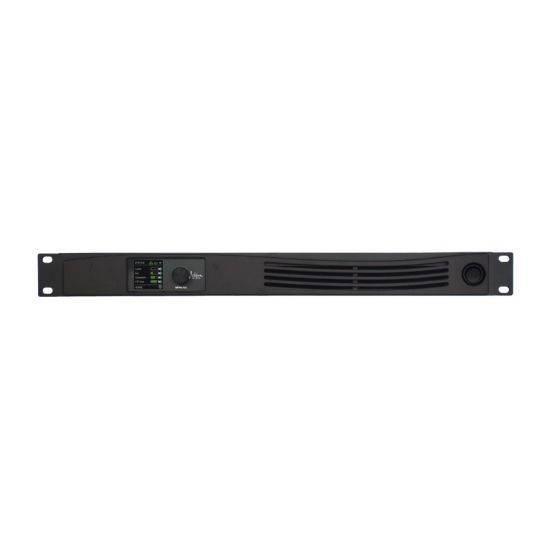

Active Audio MPA4700

Active Audio MPA4700 Amplifier with DSP 4 x 700W @ 8ohm 4ohm 2ohm 70V 100V 6kg
Product code (SKU): 126940
Product code: ACT-MPA4700


MPA4700 is a 4 channels power amplifier usuable with Ray-On series or subwoofers

Audio data
Power: 4x500W / 8Ω, 4x700W / 4Ω
Bridged power: 2x1400W / 8Ω
Input impedance: 10kΩ balanced
Harmonic distortion: <0.08% from 0,1 W to full power (typically <0,05%)

Electrical data
Mains: 100-240 V ±10%, 50-60 Hz
Input connectors: 4 balanced analog line inputs 4 x 3-pin Phoenix
Output connectors: Analog line outputs 4 x 2-pin Phoenix

Mechanical data
Dimensions (WxPxH): 483mm x 44.5mm x 358mm
Net / shipping weight: 6kg / 7.5kg

Features: DSP
Remote cloud
LAN Ethernet
Web UI + built-in WiFi Hotspot
Streaming input supporting AirPlay and Spotify


Active Audio MPA4700
