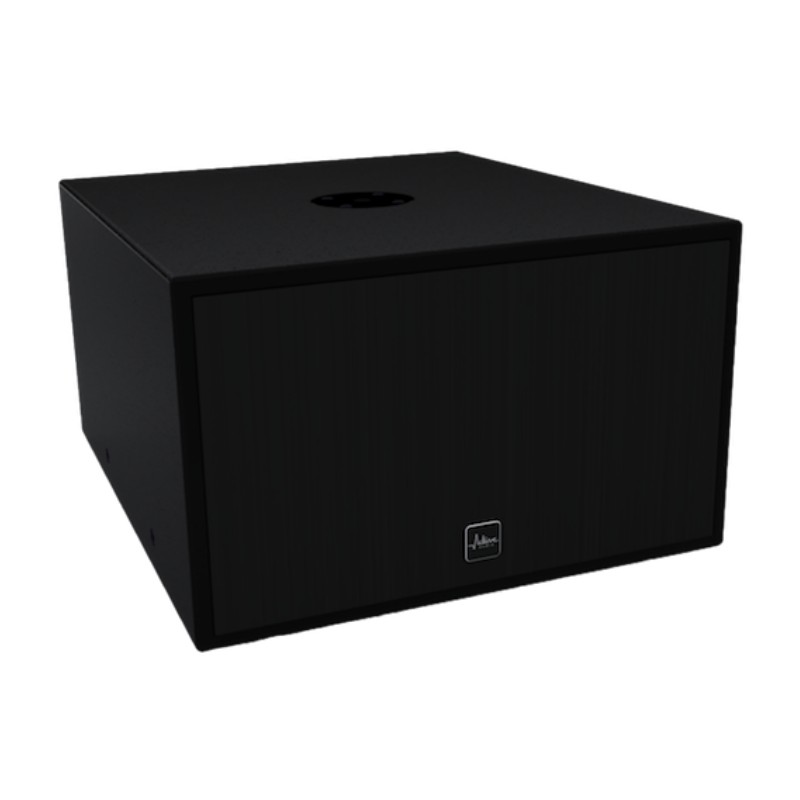

Active Audio iS112

Active Audio iS112 Subwoofer 12 inch passive black
Product code (SKU): 126949
Product code: ACT-iS112


The iS112 passive subwoofer has been designed to provide a deep bass extension to column loudspeakers such as StepArray or Ray-On, for diffusion of music or AV soundtracks.
iS112 is very compact, and can be positioned horizontally or vertically, thus ensuring optimum integration.
The 12'' high-end neodyme loudspeaker is loaded in bass reflex. It achieves a remarkably low cutoff in a small volume, while yielding sharp and dynamic sound.

Acoustical data
Max SPL: 137dBSPL @ 1m
Usable bandwidth (± 10 dB): 45 Hz - 180 Hz

Electrical data
Nominal impedance: 8Ω
Continous power: 800W (AES)
Peak power: 3200W
Connectors: 2 x Speakon NL4MP

Mechanical data
Dimensions (WxPxH): 610 x 525 x 325mm
Net / shipping weight: 24,1kg / 25kg
Colors: white, black


Active Audio iS112
