Description

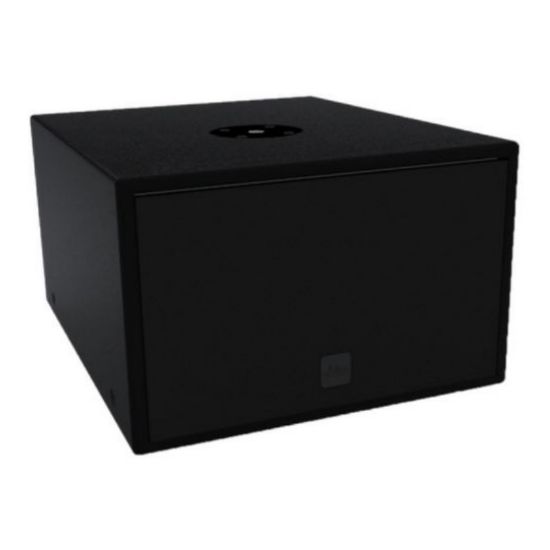

The iS110 passive subwoofer has been designed to provide a deep bass extension to column loudspeakers such as StepArray or Ray-On, for diffusion of music or AV soundtracks.
iS110 is very compact, and can be positionned horizontally or vertically, thus ensuring optimum integration.
The 10'' ferrite loudspeaker is loaded in bass reflex. It achieves a remarquably low cutoff in a small volume, while yielding sharp and dynamic sound.
Acoustical data
Max SPL: 132dBSPL @ 1m
Usable bandwidth (± 10 dB): 45 Hz - 180Hz
Electrical data
Nominal impedance: 8Ω
Continuous power: 500W (AES)
Peak power: 2000W
Connectors: 2 x Speakon NL4MP
Mechanical data
Dimensions (WxPxH): 510 x 425 x 275mm
Net / shipping weight: 19,2kg / 20kg
Colors: white, black
