Active Audio B70PoE-w

Active Audio B70PoE-w Ray-On PoE Sound bar 70cm White
Product code (SKU): 126936
Product code: ACT-B70PoE-w

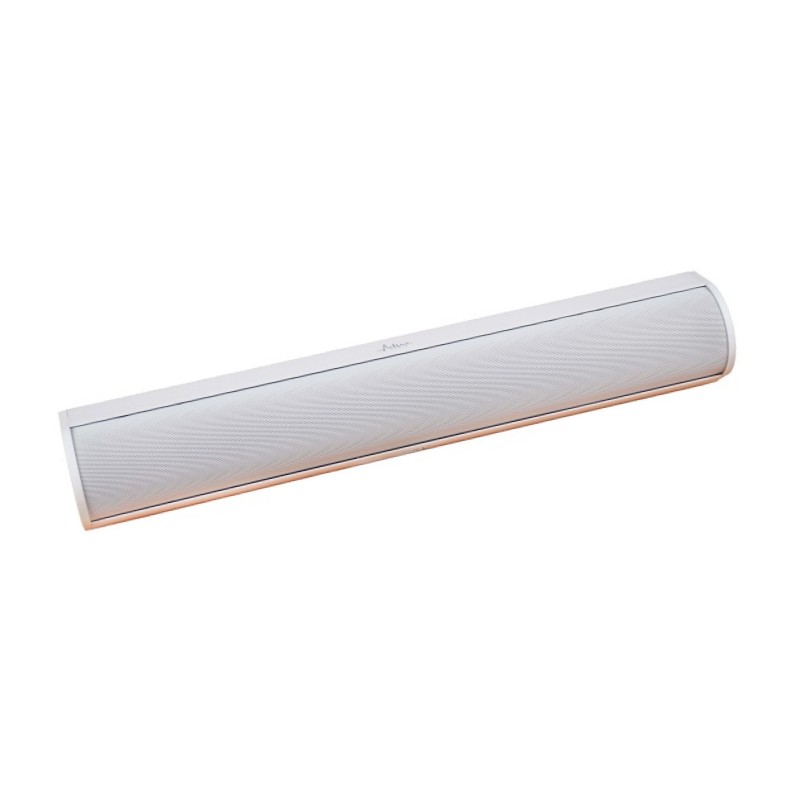

The B70 PoE is a 70cm sound bar, which is designed to be mounted horizontally.
The integrated 60W PoE+ amplifier module allows to power and put audio signal in the column with a single CAT6 cable.
With a nominal range of 12m, it offers a high-quality alternative dedicated for spaces which need a perfect horizontal directivity control : corridors, shopping rays, railway plateforms, underground stations, meeting rooms, etc.
Ray-On PoE is reserved for indoor use, it cannot be subjected directly to rain.
Range: 12m at ±5dB

Acoustical data
Max SPL: 94dBSPL @ 5m
Sensitivity: 74dB/1W @ 5m
Range ±5dB: 12m
Frequency bandwidth: (-10dB) 120Hz-18kHz
Horizontal opening angle: 40° (1kHz)
Vertical directivity: 180° (1kHz)

Electrical data
Continous power: 60W
Nominal impedance: 8Ω
Connectors: RJ45
Protection: Thermal fuse
Certification: PoE+ certified

Mechanical data
Dimensions (WxPxH): 128mm x 117mm x 706mm
Net / shipping weight: 5.4kg / 5.9kg
Environment: IP23
Colors: white, black
